Power Source: AC Voltage: 600VAC,50/60Hz
is_customized: Yes Usage: Protective

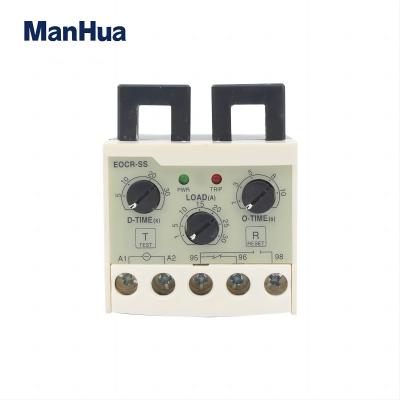

Model Number: EOCR-SS Contact Load: Low Power
Protect Feature: Sealed Theory: Electromagnetic Relay
Brand Name: ManHua Origin: Mainland China
Current Range: 5-30A Control Voltage: 90-260VAC, 320-480VAC
Rated voltage: 600VAC,50/60Hz Current Sensing: 2 CTs
Power Consumption: Under 2W Starting delay time: 0.2-30 seconds
Trip delay time: 0.2-10 seconds Mounting: 35mm DIN Rail; Panel

Power Source: AC Voltage: 220V
is_customized: Yes Usage: General Purpose
Model Number: ST3PC-B Contact Load: Low Power
Protect Feature: Sealed Theory: Time Relay

Power Source: DC Voltage: 220V
is_customized: Yes Usage: General Purpose

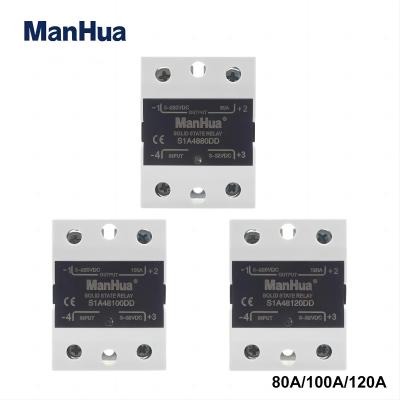

Model Number: S1A4880DD/S1A48100DD/S1A48120DD Contact Load: Low Power
Protect Feature: Sealed Theory: Solid State Relay
Brand Name: ManHua Input Voltage: 3-32V DC
Output Control Load: 5-220V DC Control method: DC control DC
Ambient temperature: -25℃~+75℃ The Work Instruction: LED
On-off Time: less than 10mS Off Leakage Current: less than 4mA

Power Source: AC Voltage: 90-260V
Usage: Protective Model Number: PG OPR SS3-60
Contact Load: Low Power Protect Feature: Sealed
Theory: Electronic Over-Current Relay Brand Name: ManHua
Origin: Mainland China Rated Voltage: 90-260V AC
Rated Current: 5-60A Frequency: 50/60Hz
D-TIME: 0.2sec ~ 60sec Humidity: 30~85% RH with no dew condensation
Size: Miniature Outer Material: 35mm Din-rail/Panel
Operating (Trip) Indication: 2-LED Operating Time Spec: Fixed Time
O-TIME: 0.2sec ~ 12sec

Power Source: AC Voltage: 220V
is_customized: Yes Usage: General Purpose

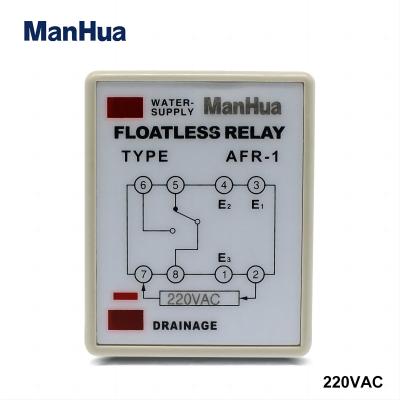

Model Number: AFR-1 Contact Load: Low Power
Protect Feature: Sealed Theory: Voltage relay
Brand Name: ManHua Operate Voltage: 85~110% of rated voltage
Operate Resistance: 4000 ohm (general) Release Resistance: 15000 ohm (general)
Contact Rating: 5A 250VAC(resistive load) Mechanical Life: 5000000 times minElec
trical Life: 100000 times min Ambient Temperature: -10~+40degree celsiu

Power Source: AC Voltage: 220V
is_customized: Yes Usage: General Purpose

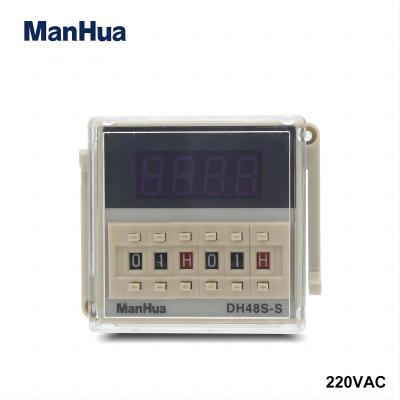

Model Number: DH48S-S/1Z Contact Load: Low Power
Protect Feature: Sealed Theory: Time Relay
Brand Name: ManHua Operating Voltage: 220VAC
Contact C: 5A 250VAC Operation Mode: On delay operation
Electric Life: 100,000 times Mechanical Life: 1000,000 times
Time Delay Accuracy: Less than 0.5% Time Delay Range: 0.1S-99H
Weight: 0.2kg Dimension: 95*58*48mm
Warranty: 12 months Socket: PF083A

Usage: General Purpose Model Number: AH3-NB
Protect Feature: Epoxy Theory: Time Relay
Brand Name: ManHua Origin: Mainland China
Outline Dimension: 82*41*56mm Contact Mode: Time delay 1 switch, instantaneous 1 switch
Electric Life: 1*100000 Time Delay Accuracy: Less than 10%
Mounting Mode: Panel mounting plug in Size: Miniature
Contact Load: Low Power Contact Capacity: AC220V 3A COS=1 DC28V 5A
Sockets Mached: PF083A,TP28X Ambient Temperature: -10~+40 degree celsius

Power Source: AC Voltage: 240V
is_customized: Yes Usage: Protective
Model Number: JQX-30F Contact Load: High Power
Protect Feature: Sealed Theory: Electromagnetic Relay
Brand Name: ManHua Certification: CE
Origin: Mainland China Pin number: 8 pins
Contact capacity: 30A 250VAC Coil: AC240V
Terminal Type: Terminal Contact form: 1Z

Power Source: AC Voltage: 220V
is_customized: Yes Usage: industrial
Model Number: H3BA-8 Contact Load: Low Power
Protect Feature: Sealed Theory: Time Relay
Brand Name: ManHua Origin: Mainland China
Theory: Electronic Usage: Industrial
Time delay accuracy: 5% Mounting Mode: Panel mounting plug in
Working Mode: On-delay Contact Capacity: AC250V 5A
Protect Feature: Sealed Electric Life: 100000 times
Mechanical life: 1000000 times

Power Source: DC Voltage: 480V
is_customized: Yes Usage: General Purpose
Model Number: S3D4810A/S3D4825A/S3D4840A/S3D4860A Contact Load: Low Power
Protect Feature: Sealed Theory: Solid State Relay
Brand Name: ManHua Load Voltage: 480VA
CInput Control Voltage: 3-32VDC indicator: LED
Ambient Temperature: -30~+75℃ Off Leakage Current: ≤10mA
On-off Time: ≤10ms

Model Number: SSR-04 Theory: liquid level controller relay
Brand Name: ManHua Origin: Mainland China

Power Source: AC Voltage: 380V
is_customized: Yes Usage: Protective
Model Number: MKC-04 Protect Feature: Sealed
Theory: Thermal Relay Brand Name: ManHua
Origin: Mainland China Rated Voltage: 3 Phase 380V and netural 230VAC
Installation: Rail or surface mounting Electric Life: 1*100000 times
Mechanical Life: 1*1000000 times
