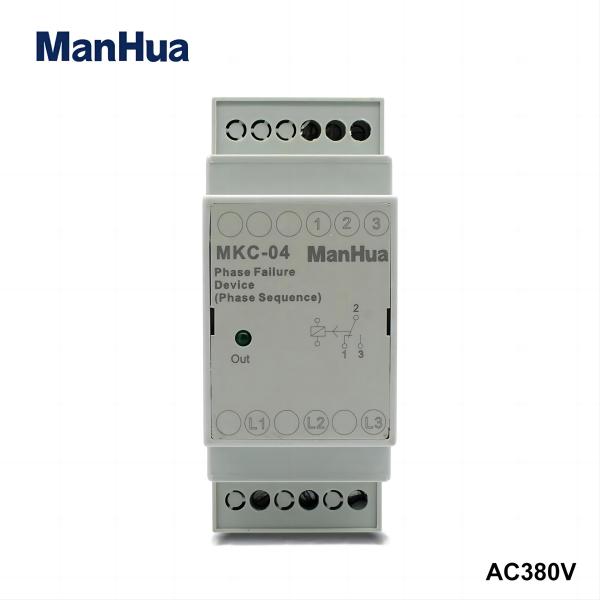

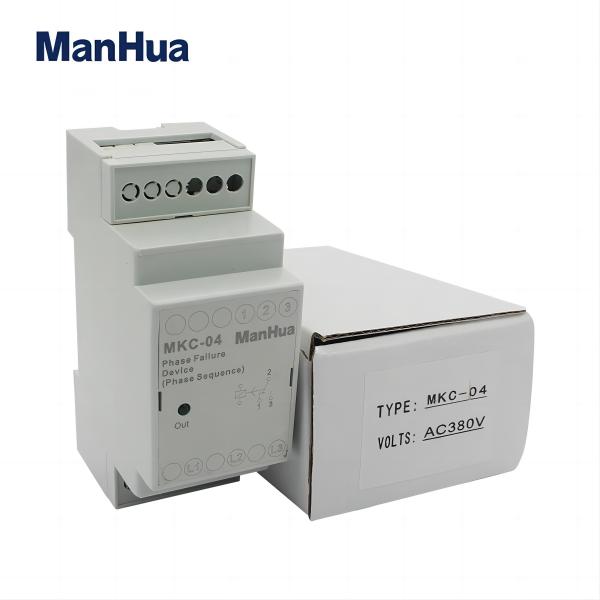

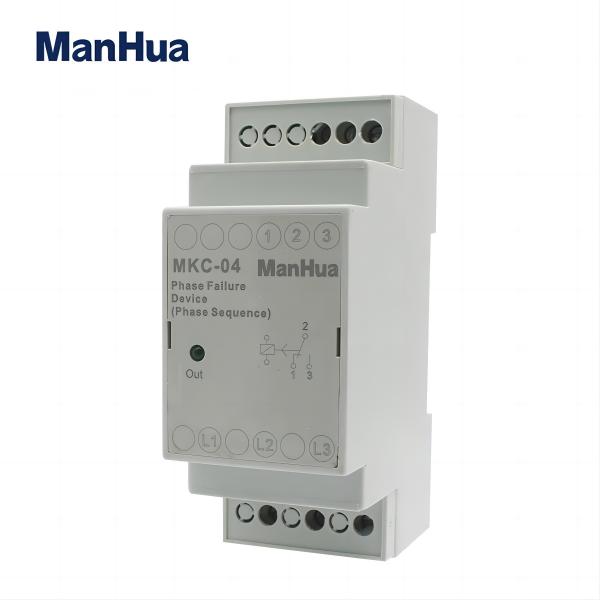

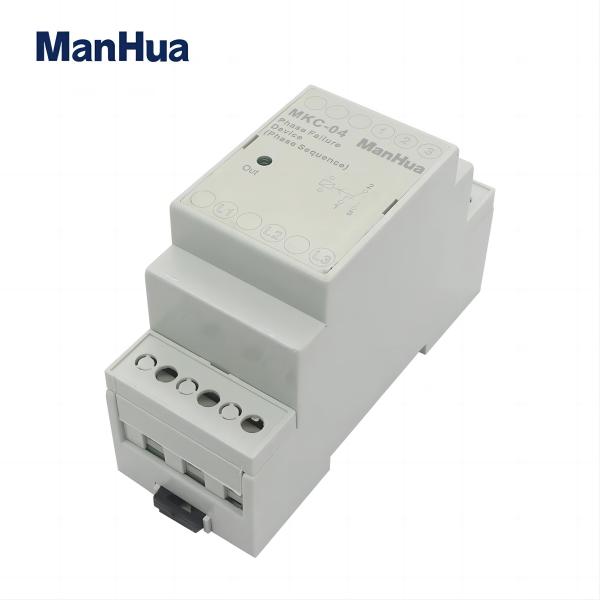

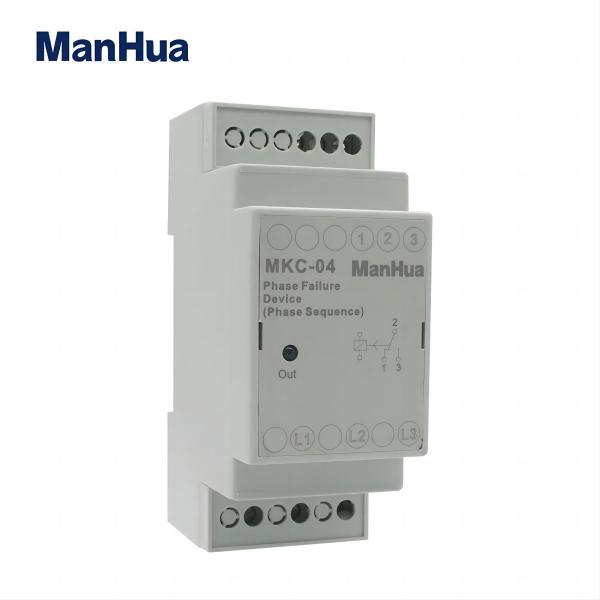

MKC-04 Tripping time 0.2s 3 Phase Protect Motor From Phase Failure Phase Sequence reserve voltage unbalance

Power Source: AC Voltage: 380V
is_customized: Yes Usage: Protective
Model Number: MKC-04 Protect Feature: Sealed
Theory: Thermal Relay Brand Name: ManHua
Origin: Mainland China Rated Voltage: 3 Phase 380V and netural 230VAC
Installation: Rail or surface mounting Electric Life: 1*100000 times
Mechanical Life: 1*1000000 times Request quotation
Video PDF Download Contact us

ManHua Tripping time 0.2s 3 Phase MKC-04 Protect Motor From Phase Failure Phase Sequence reserve voltage unbalance

Description:

One of the common faults faced in industrial plants is over-heating and burning of 3 phase motors due to the phase failure.“Thermic-magnetic device”which is an essential element in motor protection is generally too slow due to both its electromechanical structure and the use of high current setting range to assure demarrage without tripping.Being designed to eliminate the above disadvantages. In motor protection, phase protection relays are the most basic components.


Technical data:

Rated voltage:380VAC

                       3 wires delta connection

Operating range:(0.9-1.1)×Un

Rated frequency:50/60Hz

Output contacts:1 C/O, 8A,250VAC,2000VA

Warning LED:LED output,normally ON(OFF for any fault)

Tripping time:0.2 sec

Ambient temperature:-5℃ to+50℃

Protection class：IP20

Installation:Surface mounting or on the mounting rails


Dimension:
