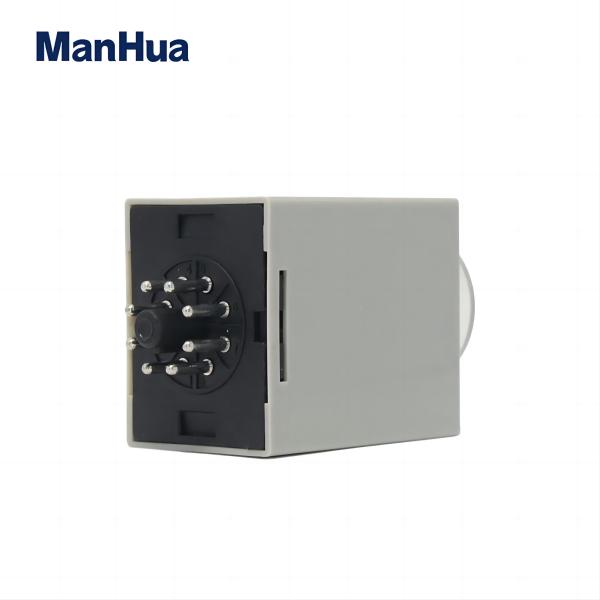

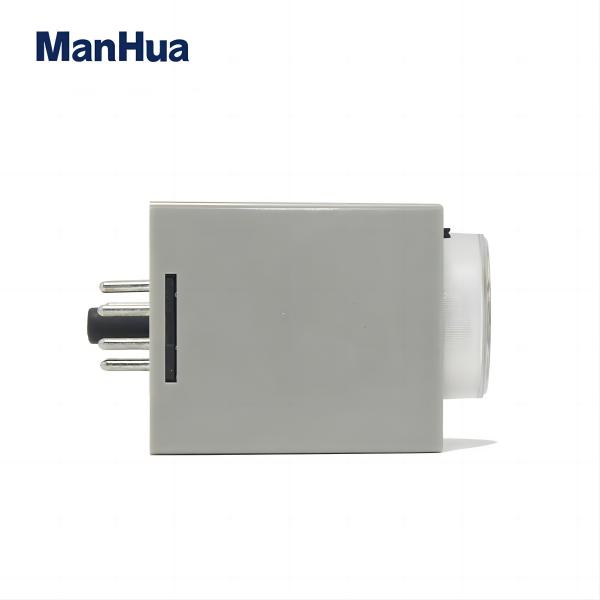

AH3-NB Timer Relay 36 To 380VAC 10 Min 0 to 10 Minutes DPDT 8 Pin 8P Erminals Delay Timer

Usage: General Purpose Model Number: AH3-NB
Protect Feature: Epoxy Theory: Time Relay
Brand Name: ManHua Origin: Mainland China
Outline Dimension: 82*41*56mm Contact Mode: Time delay 1 switch, instantaneous 1 switch
Electric Life: 1*100000 Time Delay Accuracy: Less than 10%
Mounting Mode: Panel mounting plug in Size: Miniature
Contact Load: Low Power Contact Capacity: AC220V 3A COS=1 DC28V 5A
Sockets Mached: PF083A,TP28X Ambient Temperature: -10~+40 degree celsius Request quotation

Manhua 36 To 380VAC 10 Min 0 to 10 Minutes DPDT 8 Pin 8P Erminals Delay Timer AH3-NB Timer Relay

Product Description

Outline Dimension

82*41*56mm

Working Mode

On-delay

Contact Mode

Time delay 1 switch, instantaneous 1 switch

Contact Capacity

AC220V 3A COS=1  DC28V 5A

Electric Life

1*100000

Ambient Temperature

-10℃~+40℃

Time Delay Accuracy

≤10%

Operating Voltage

AC: 50Hz 36V,110V,127V,220V,380VDC: 24V

Time delay range

0.1s~12h

Mounting Mode

Panel mounting plug in

Sockets Mached

PF083A,TP28X-E

Mounting dimension drawing

Connection diagram

Packaging & Shipping

Packaging Details: Standard exportation packing

Delivery Details: Within 5-25 days after your order confirmed


Company Information

We are the leading manufacturer of industrial electronic products.Manhua Electric Co.,Ltd.

It was established in 2009 and domestic business started in 1980s.
Our main products include time swith,surge protective device,phase failure relay,timer,
relay and so on.We have been exported overseas.Domestic Market, Mid East, Southern Europe,
Western Europe, Eastern Europe are the main exporting regon.

Our Services

1. OEM service is available.

2. Fast producing time.

3. Cheapest price.

4. Reply promptly in 24 hours.

5. Free sample available.



FAQ

Q1: Are you a Manufacture Factory?

Yes.We are the Direct Manufacture Factory, and our factory has specialized in industrial electronic products since 1980s.


Q2: Do you have stock products to sell?

No,We produce these electronic products accorded to the customer’s requirement,

It also means material, density, shape, size,design,quantity will depend on what your need.OEM

orders always be welcomed.


Q3: Does the electronic product can  be printed  a LOGO?
Yes, we can print the logo as your requirement .


Q4: What  advantages do you have?

A: We are the direct Manufacturer in Wenzhou and could offer you the most competitive price.

B: We are the Factory, and we have the ability to carry out production schedule for punctual

    delivery.

C: We could make products according to your requirments.

D: We can provide free samples for quality evaluation.


Q5: If I want to get a Quotation, what information need be provided to you?

Type, Quantity.
