PG OPR SS3-60 Electronic Over Current Relay90-260VAC 5-60A Hard Condition Resistan Choke Inductor Supressor

Power Source: AC Voltage: 90-260V
Usage: Protective Model Number: PG OPR SS3-60
Contact Load: Low Power Protect Feature: Sealed
Theory: Electronic Over-Current Relay Brand Name: ManHua
Origin: Mainland China Rated Voltage: 90-260V AC
Rated Current: 5-60A Frequency: 50/60Hz
D-TIME: 0.2sec ~ 60sec Humidity: 30~85% RH with no dew condensation
Size: Miniature Outer Material: 35mm Din-rail/Panel
Operating (Trip) Indication: 2-LED Operating Time Spec: Fixed Time
O-TIME: 0.2sec ~ 12sec Request quotation
Video PDF Download Contact us

Manhua 90-260VAC 5-60A Hard Condition Resistan Super Economic in Power Saving PG OPR SS3-60  Electronic Over Current Relay

Features:

♦ Available to apply up to 120A with the embedded CT

♦Available to mount directly to MC

♦3 Integral Current Transformers

♦Electrcnic Shear-pin Function

♦Independently Adjustable Staring Trip Delay(D-Time)&Trip Time(O-Time)

Protection:

Protective Item

Operating(Trip)Time

Over-current

O-TIME

PHASE Loss

O-TIME

Locked Rotor

O-TIME+D-TIME

Specification:

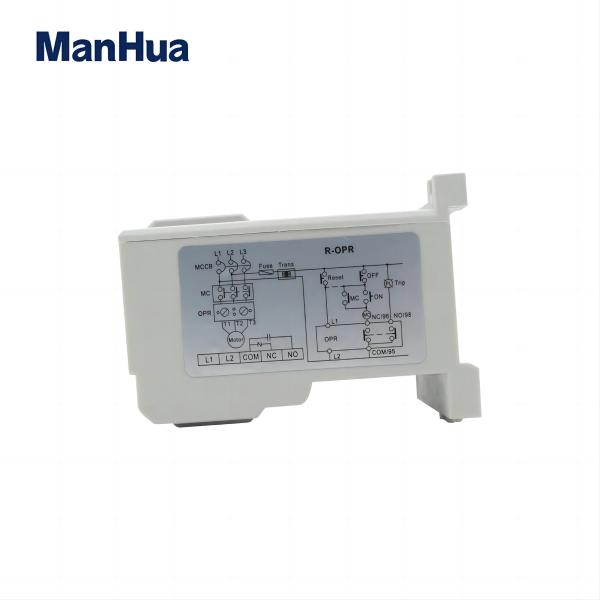

Wiring Diagram:

Dimensions:
