AFR-1Water Supply Floatless Relay 220VAC 50/60Hz Water Level Controller

Power Source: AC Voltage: 220V
is_customized: Yes Usage: General Purpose
Model Number: AFR-1 Contact Load: Low Power
Protect Feature: Sealed Theory: Voltage relay
Brand Name: ManHua Operate Voltage: 85~110% of rated voltage
Operate Resistance: 4000 ohm (general) Release Resistance: 15000 ohm (general)
Contact Rating: 5A 250VAC(resistive load) Mechanical Life: 5000000 times minElec
trical Life: 100000 times min Ambient Temperature: -10~+40degree celsiu Request quotation
Video PDF Download Contact us

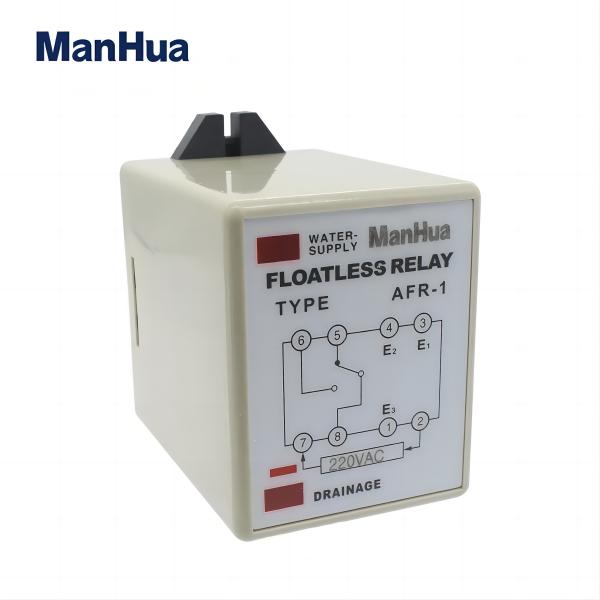

ManHua Water Supply Floatless Relay 220VAC 50/60Hz AFR-1 Water Level Controller

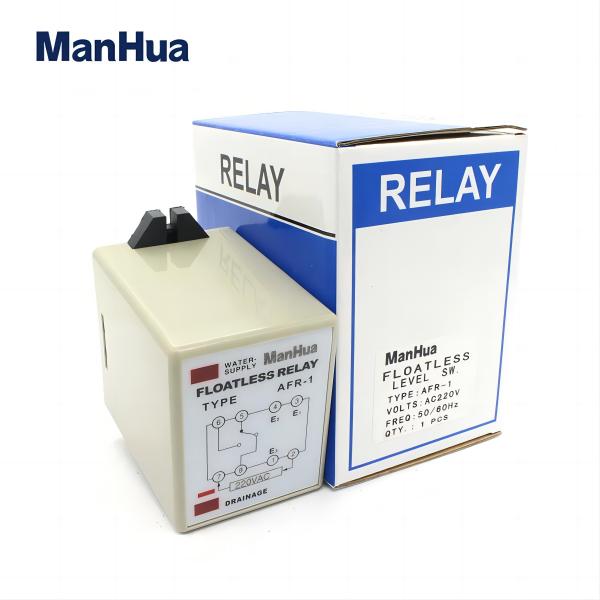

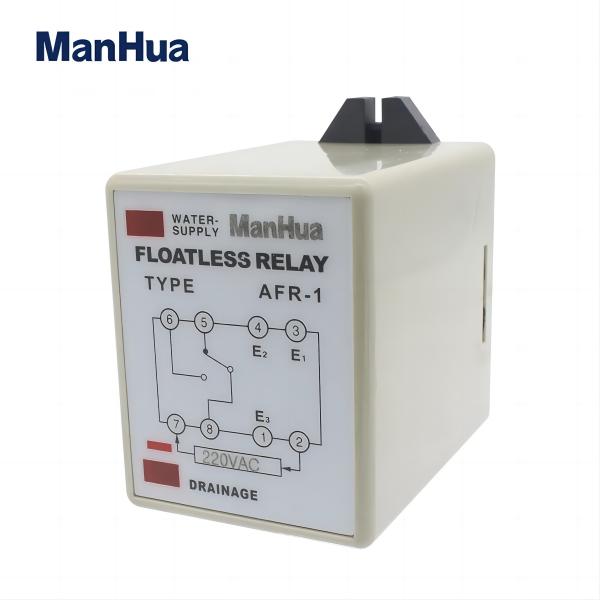

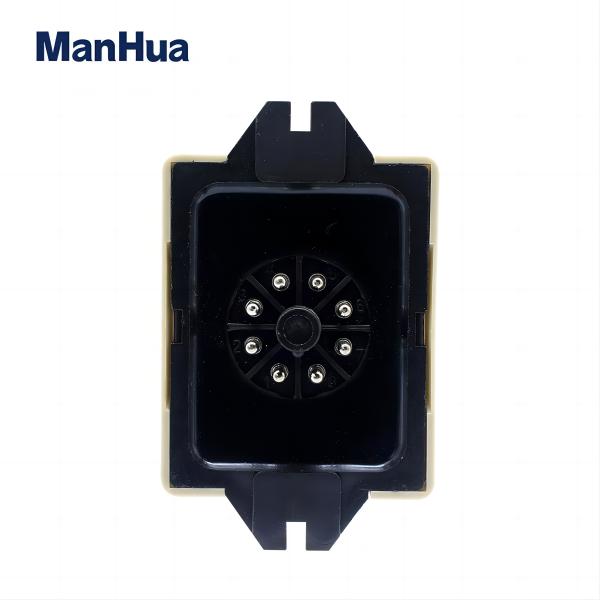

product view

Specification:

Model: AFR - 1

Type: level control switch

Operating voltage: AC220V 50/60hz

Power:≤2w

Detection voltage: <10V

Temperature: 15℃~ + 40℃

Indicator Operating: Two LED 's use for two status

Operate Voltage : 85-110% of rated voltage

Operate Resistance:  4KΩmin(GENERAL)

Release Resistance: 15KΩmin(GENERAL)

Response Time: Operate:80msec max  Release:160msec max

Contact Rating:   5A,250VAC(RESISTIVE LOAD)



Features:

Beautiful appearance, clear printing and easy to see.

Wide voltage range, high contact capacity and high stability.

The panel is made of high quality material, which is safe to use.

Liquid level dedicated integrated chip, strong anti-interference.



Application:

Automatic control of water supply and drainage for industrial and agricultural production, treatment of water supply and drainage for residential buildings, scientific experiments as automatic components of water drainage.

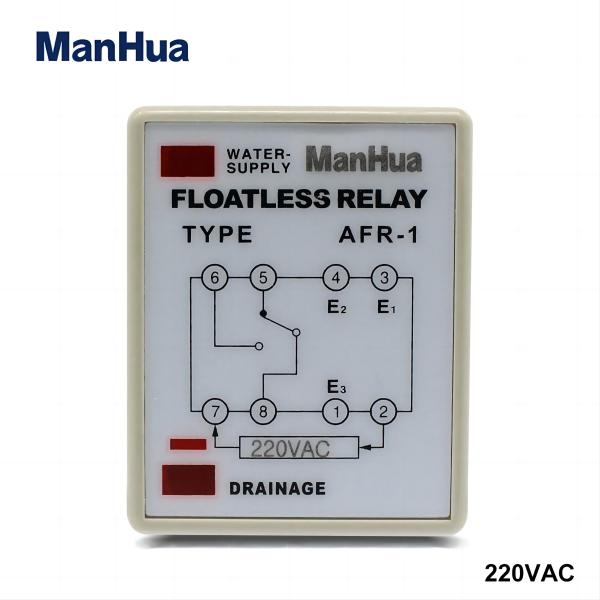

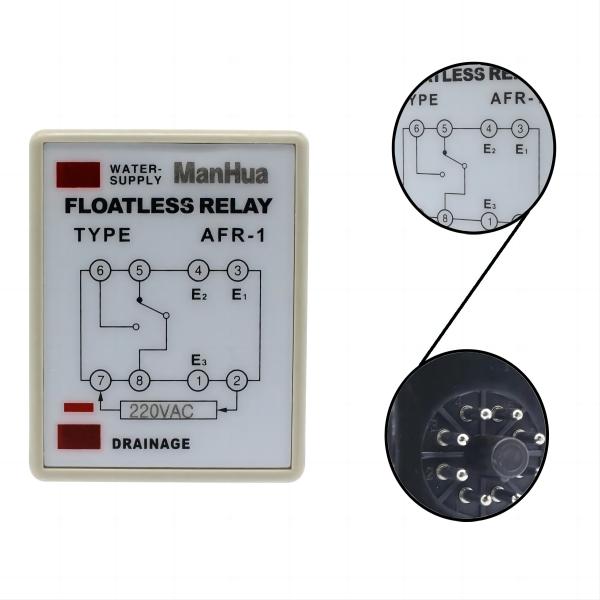

Connection Diagram：

8

7

2
