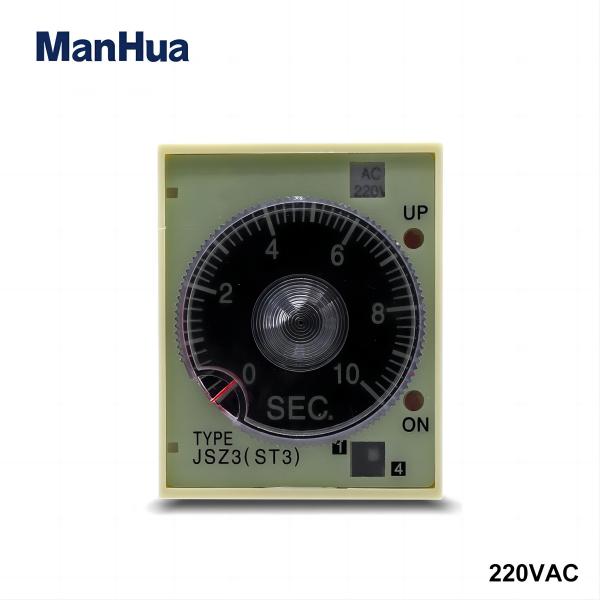

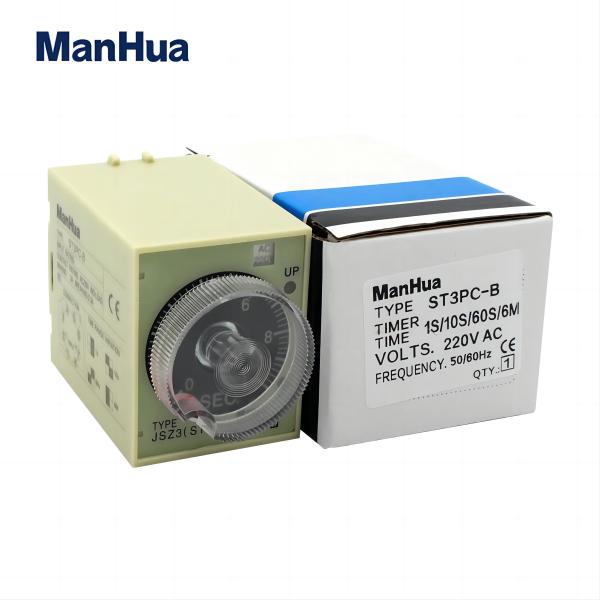

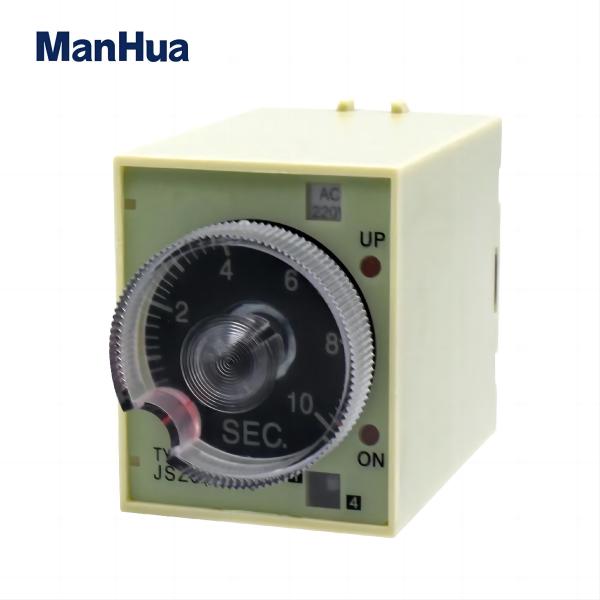

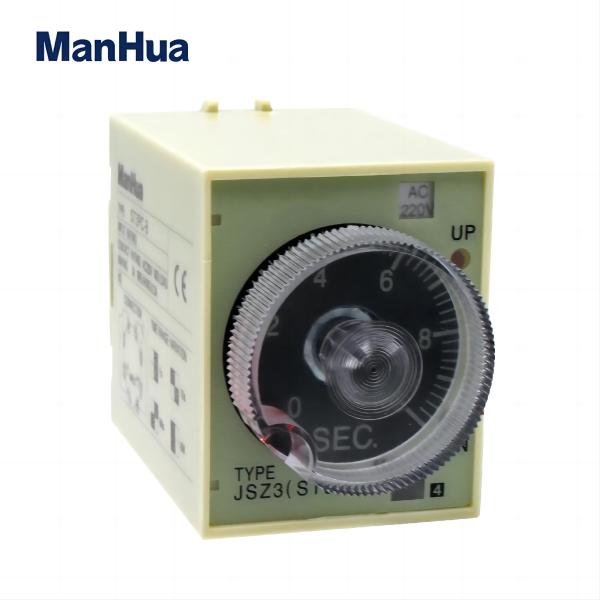

Contact usManhua Time Delay 1 Switch Instantaneous 1 Switch AC220V 3A Timer Relay
Technical Data:
Outline dimension :84*41*56mm
Working mode: On-delay
Contact mode:Time delay 1 switch,instantaneous 1 switch
Contact capacity: AC220V 3A COSØ=1
Electric life: 1*100000
Ambient temperature: -10℃+40℃
Time delay accuracy: ≤5%
Operating voltage:AC: 50Hz 36V,110V,127V,220V,380VDC: 24V
Time delay range:A:0.05~0.5s/5s/30s/3min
B:0.1~1s/10s/60s/6min
C:0.5~5s/50s/5min/30min
D:1~10s/100s/10min/60min
E:5~60s/10min/60min/6h
F:0.25~2min/20min/2h/12h
G:0.5~4min/40min/4h/24h

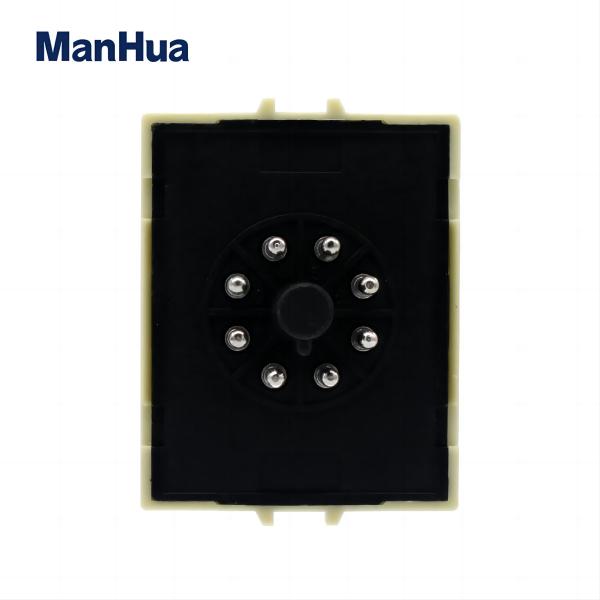

Mounting mode: Panel mounting plug in
Sockets mached: PF083A,TP28X-E
Mountin Dimension Drawing：

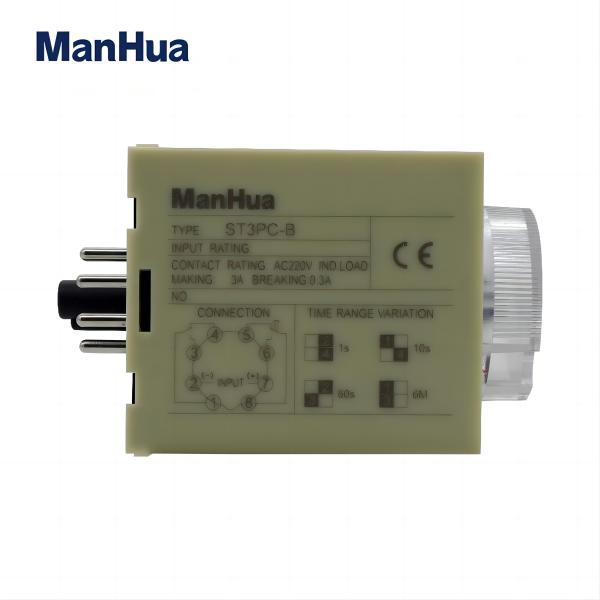

Connection diagram
