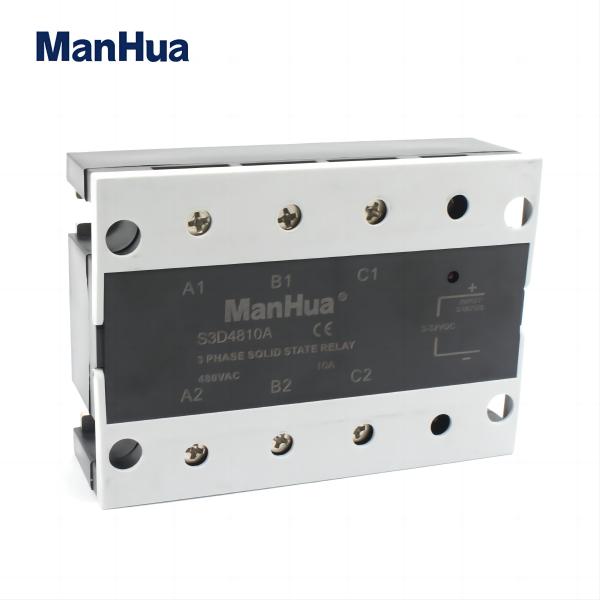

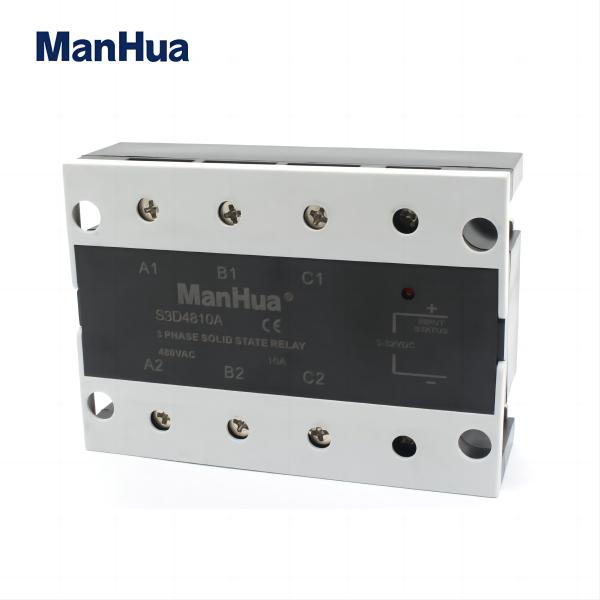

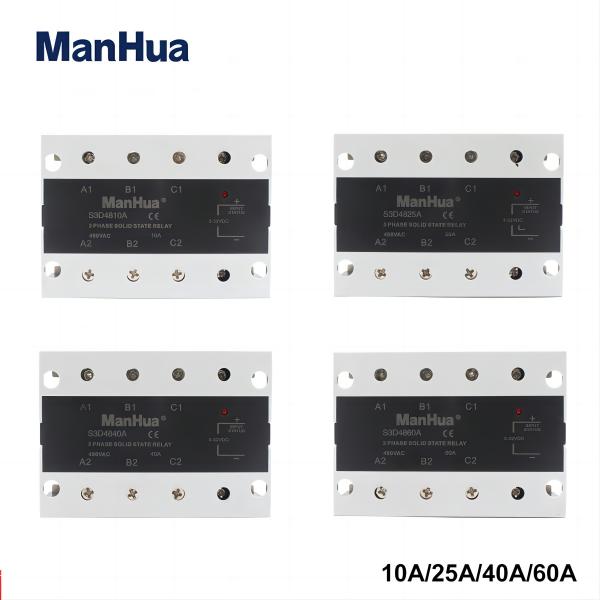

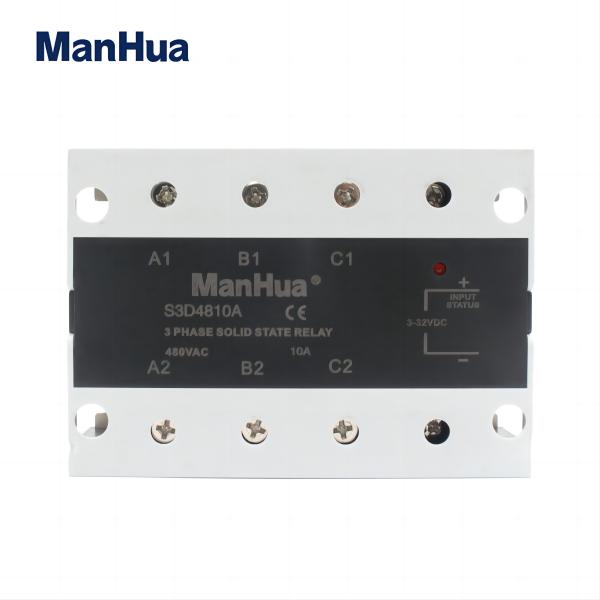

ManHua SSR DC-AC 10A/25A/40A/60A Three Phase Solid State Relay 480VAC 3-32VDC

Specification:

Load Current :10A/25A/40A/60A

Load Voltage:480VAC

Control Voltage:3-32VDC

Control Current DC:10-68mA

On voltage:≤2VAC

Off Leakage Current:≤10mA

On-off Time:≤10ms

Dielectric Strength:2500VAC

Insulation Resistance:1000M/500VDC

Ambient Temperature:-30~+75℃

The work instructions:LED

Features:

1.Three-phase solid state relay is suitable for automatic control circuit with AC frequency 50HZ/60HZ, rated voltage 480V or less, and achieves the purpose of directly driving large current load with a small control signal. Widely used in digital program control devices, motor control devices, temperature control devices, data processing systems and computer terminal interface circuits.

2.This product has some advantages like reliable operation, long service life, no noise, no contact, no spark, no electromagnetic interference, fast switching speed, strong anti-interference ability, small volume, impact resistance, anti-vibration, explosion-proof, moisture-proof, anti-corrosion.

Application:

Industrial automation installment, AC motor control, Intermediate relay,solenoid valve control, Numerical control machinery,external guidnance system,computer periphery connection, Illumination,stage lighting control, Electric stove,heating,warm control, street light,signal light,traffic light,Color photo enlargement,film processing equipment,injection machinery.Automatic fire control and security system,etc.

About Feedback:

Dear friends: Welcome to my store, thank you! Your satisfaction is our aim, your feedback is very important for us sellers, if you are satisfied with the goods, please give us 5 star encourage if you are not 100% satisfied with the product, please be sure to contact me, please do not just hit bad review.I believe we can solve the problem together.

Quality assurance:

1.One year guarantee.

2.If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition).

3.We supply free repairing service within one year of purchase. For the first 1 month, we will pay one way shipping cost(from us to your location);After 1 month of purchase, the buyer need to pay two ways of shipping cost.

4.One we get the returned items, we will send the replaced ones back as soon as possible.

5.Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or improper installation on the parts.
