RELAY

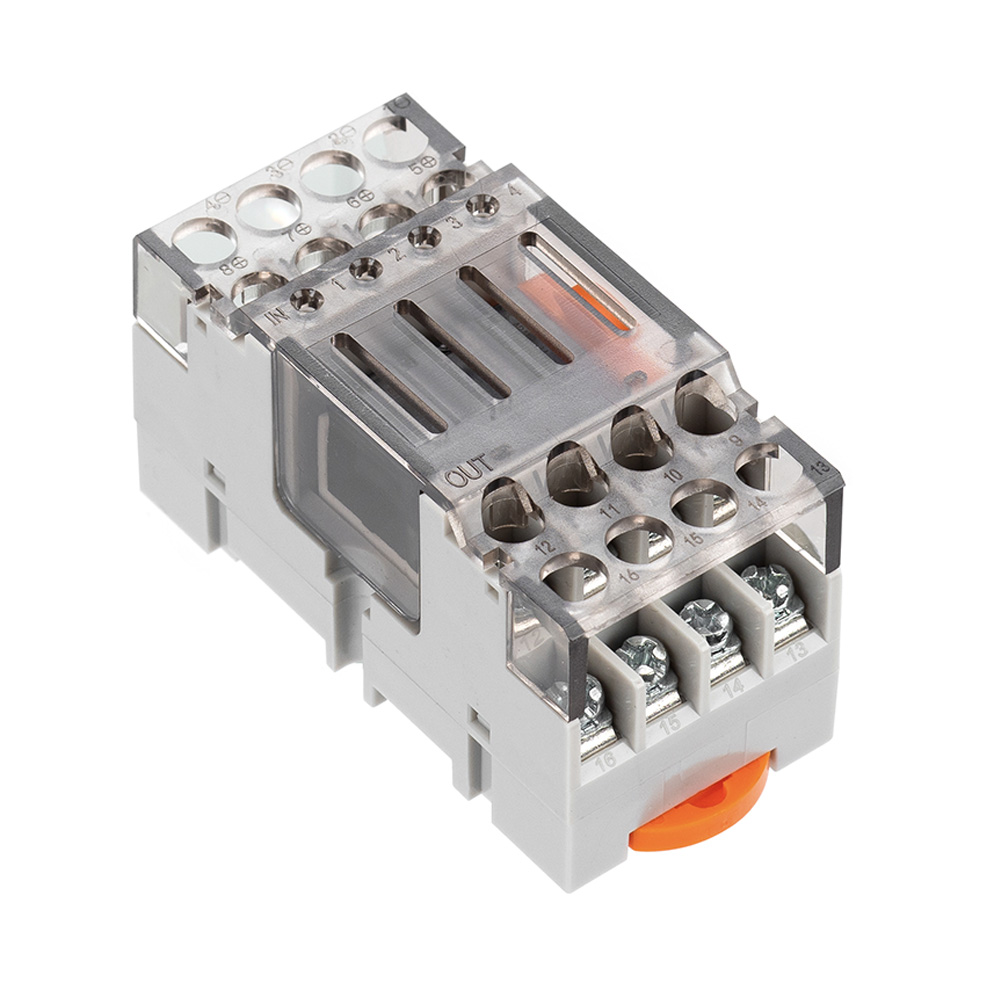

ManHua Relay Module M4T-16P-SN 12VDC 24VDC Industrial Control Module Terminal Relay Solid State Relay Silver Alloy Contact




Product Description

Technical Data

Outline Dimension: 75*35*40mm

Rated Voltage:12VDC/24VDC

Contact Material:Silver Alloy

Mechanical Durability:5000000 times

Operating Ambient Temperature: -40℃~+85℃

Operating Ambient Humidity: 20%~85%

Mounting mode: Panel mounting plug in

TIMER SWITCH



Manhua Electronic Programmable Time Switch AC 220V 25A 1 Minute to 168 Hours Digital Automatic Timer Din Rail Mount MT16G-3a




Package Content:


1 x Digital Timer

1x English Manual

TIMER SWITCH

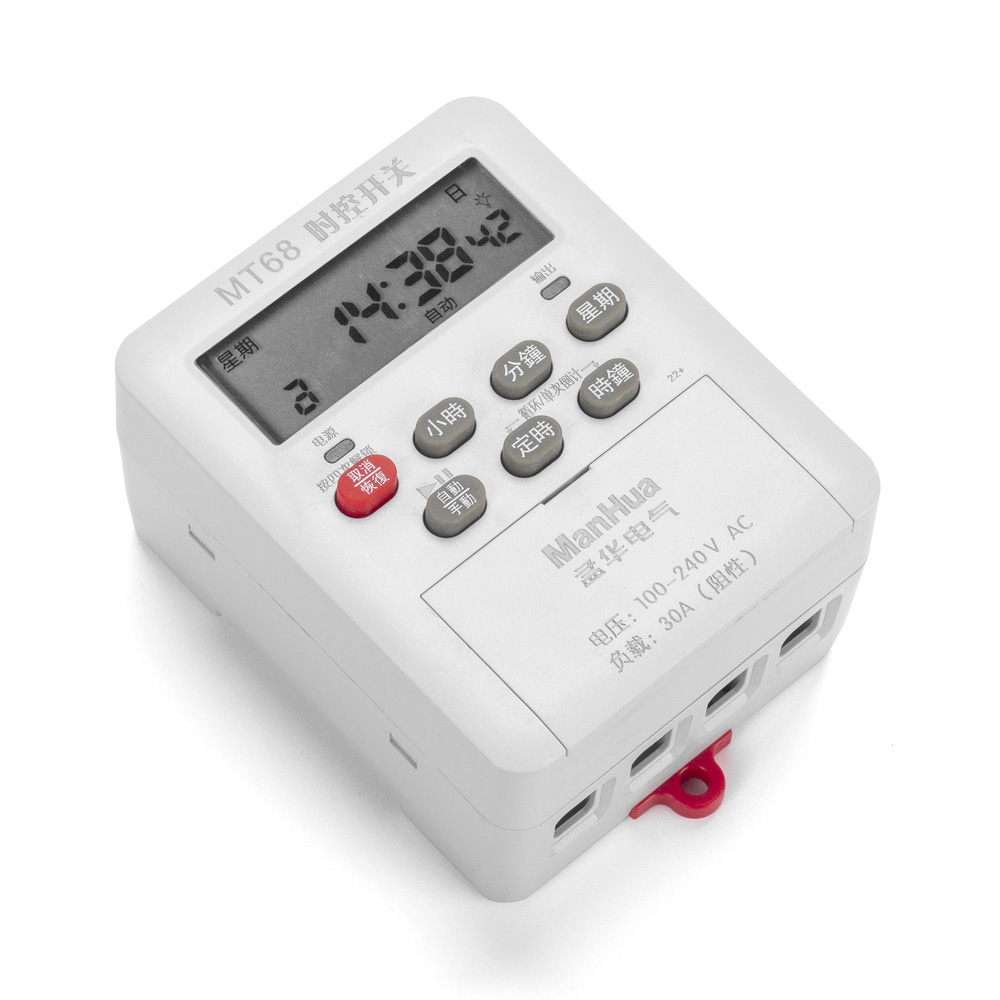

Manhua 68 ON Programmable Timer Switch 220V 25A School Bell Timing Kitchen Time Controller with Waterproof Enclosure

♦Features

1)According to the user to set the time,this product can automatically open and

close the power supply off all kinds of electrical equipment.

Control Object streetlight,neon light,billboards,sound,warehouse,heating and TV.

2)Battery Inside:Lithium battery(3V CR2450),high-precision,industrial grade

chip,high anti-interference

RELAY

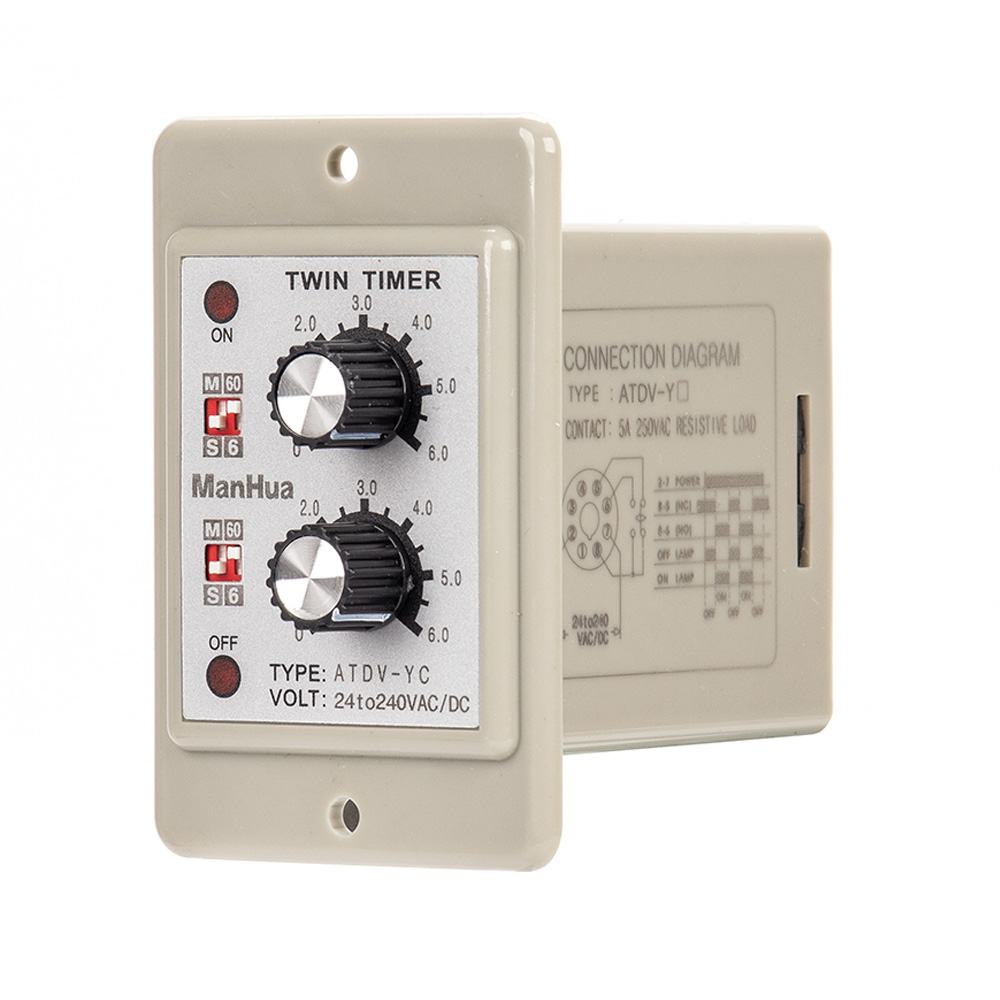

Manhua On Off Twin Timer Relay Knob Control Time Switch ATDV 6S-60M Relay Board 24 to 240VAC/DC Electrical Access

Voltage Meter

​

Product features:

1. High precision measurement of three phase AC voltage

2. Provide the digital tube display,local data query

3. Programmable PT ratio

4. Support for RS-485 communication,Modbus-RTU protocol

5. Support for switch input,output,analog transmitting output

6. A variety of dimentions to meet different requirements of the electric distribution box





Connection Mode:

Three phase four wires,three phase three wires

Rated Voltage : AC 0-600V

Overload Voltage: 1.2 times(Continued),2 times/second (instantaneous)

The Frequency:45-64Hz or DC



Product list:

Electricity monitor x 1

Switch Type：Toggle Switch
Current：10A
Material：Plastic
Brand Name：ManHua
Origin：Mainland China
Item Type：Switches

Contactor
Features:

(1) the electromagnetic system, including attracting coil, a movable iron core and the static iron core;

(2) the contact system, which comprises three groups of main contact and one to two groups of normally open, normally closed auxiliary contact and the moving iron core, it is together mutual linkage;

(3) out AC contactor arc device, generally larger capacity is provided with an arc extinguishing device, in order to quickly cut off from the main contact arc, burnt out;

(4) insulation casing and accessories, all kinds of spring, a transmission mechanism, a short circuit ring, terminal etc..

RELAY

ATDV-N Dual Adjustable Timer 6S 60S ON OFF Mechanical Twin Timer Relay 220VAC Relay Board Works With Base for Swimming Pool

Specifications:

Model Number: ATDV

Input Rating: 220VAC

Frequency Rating: 50/60Hz

Quantity: 1 Set

Note:

Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid

Due to the difference between different monitors, the picture may not reflect the actual color of theitem. Thank you!

Package Includes:
1 x Time Relay

1 x Socket Base

Push-button switch

ManHua ZB2-BE101C Plastic Light Block for Head 22 mm Base Module Visual Distinction


Product description:

This ManHua ZB, green light block operates with an integral LED. It is supplied with 230V to 240V AC and uses screw clamp terminals. It has a plastic body. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED.

Fuse Holder for PV String Fuses
This holder maximum voltage is 1000V. The fuse holder can be combined with the following PV String Fuses which is essential protection for solar panels.

- 1000V DC

- High temperature resistant plastics

- Elevated insulation characteristics

Please noted, this link only for fuse holder, if you need the fuse, please buy from other link .

MULTIMETER
VC890D Digital Voltmeter Ammeter Professional Multimeter Professional Electric Tester Meter

RELAY

Operation Temperature: -20℃~+55℃

Voltage: 100-240VAC 50~60Hz

Power Consumpiton: <2w

Indicator Operating: LCD

Cycle Range: 1min~168hours

Tolarance: 1s/24h 25℃

Set Up Times: 16on/off.

Dimension:65*88*46mm

During Operation,no water,no oil,no corruption

Guarantee:One year
