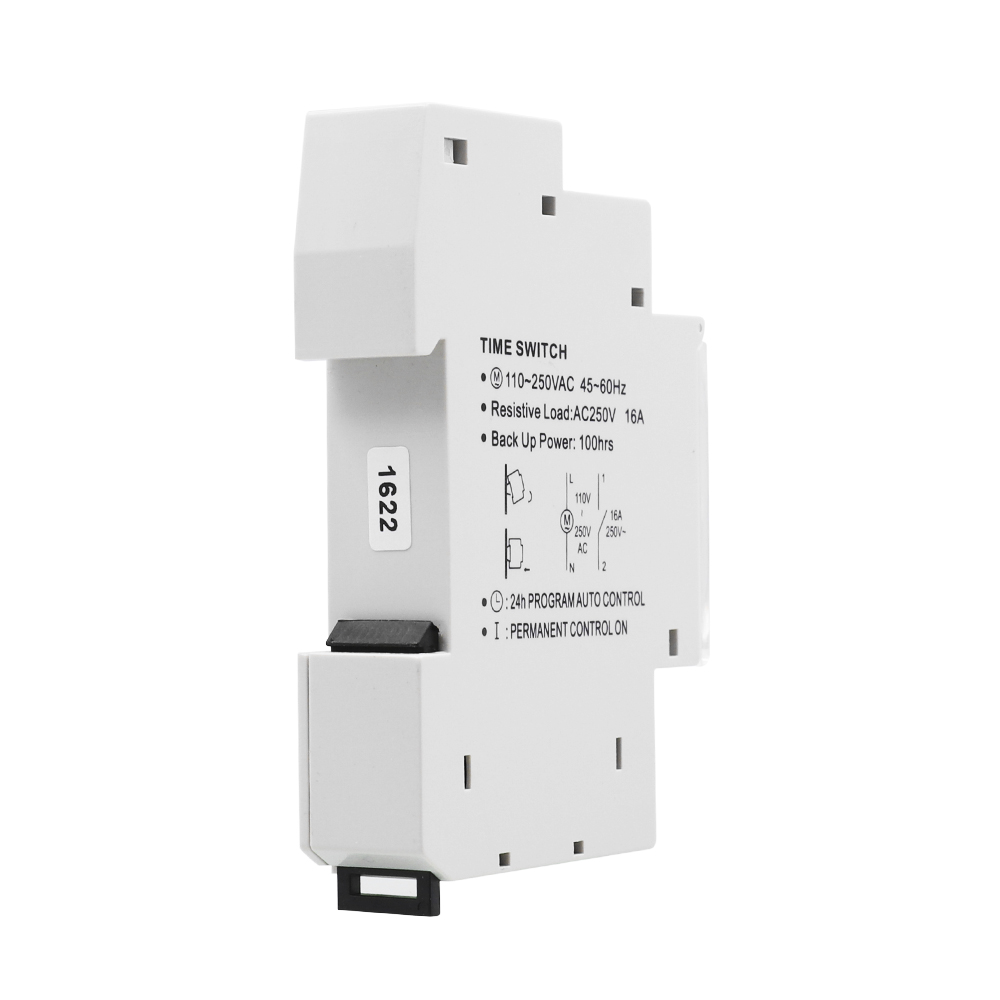

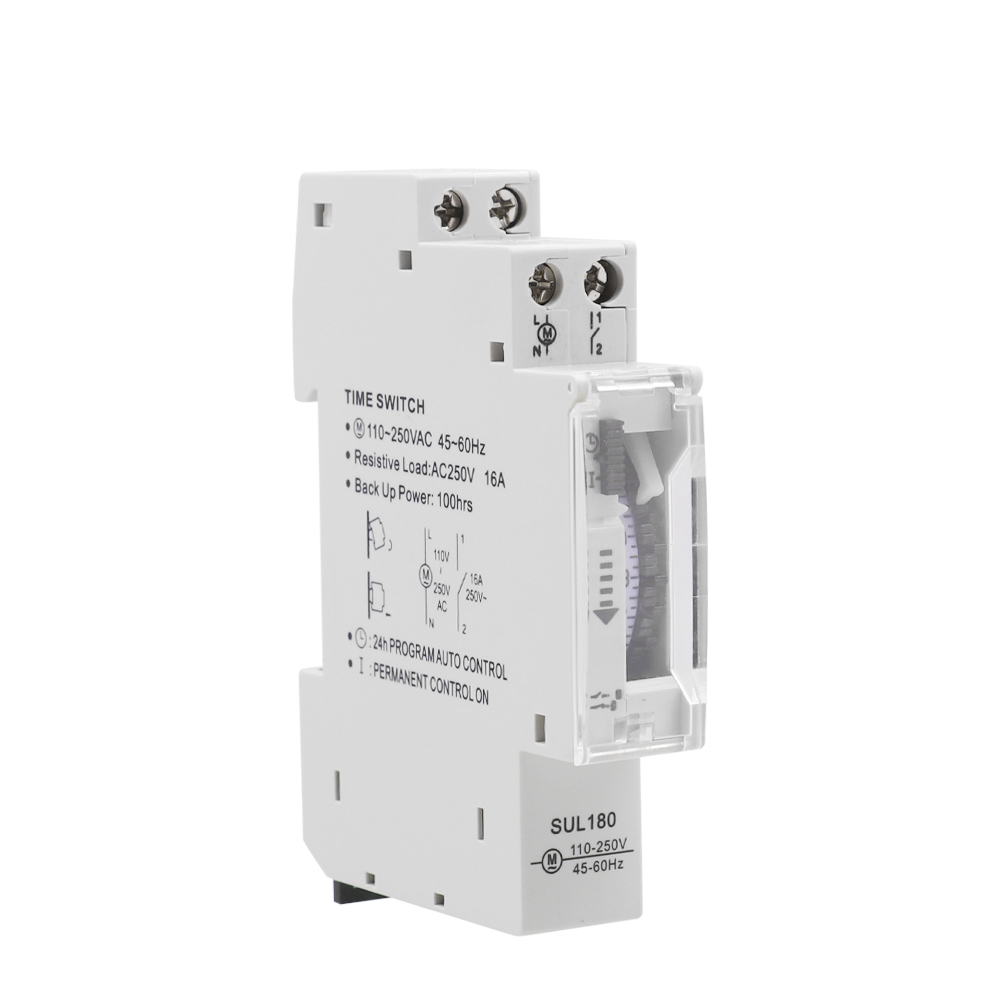

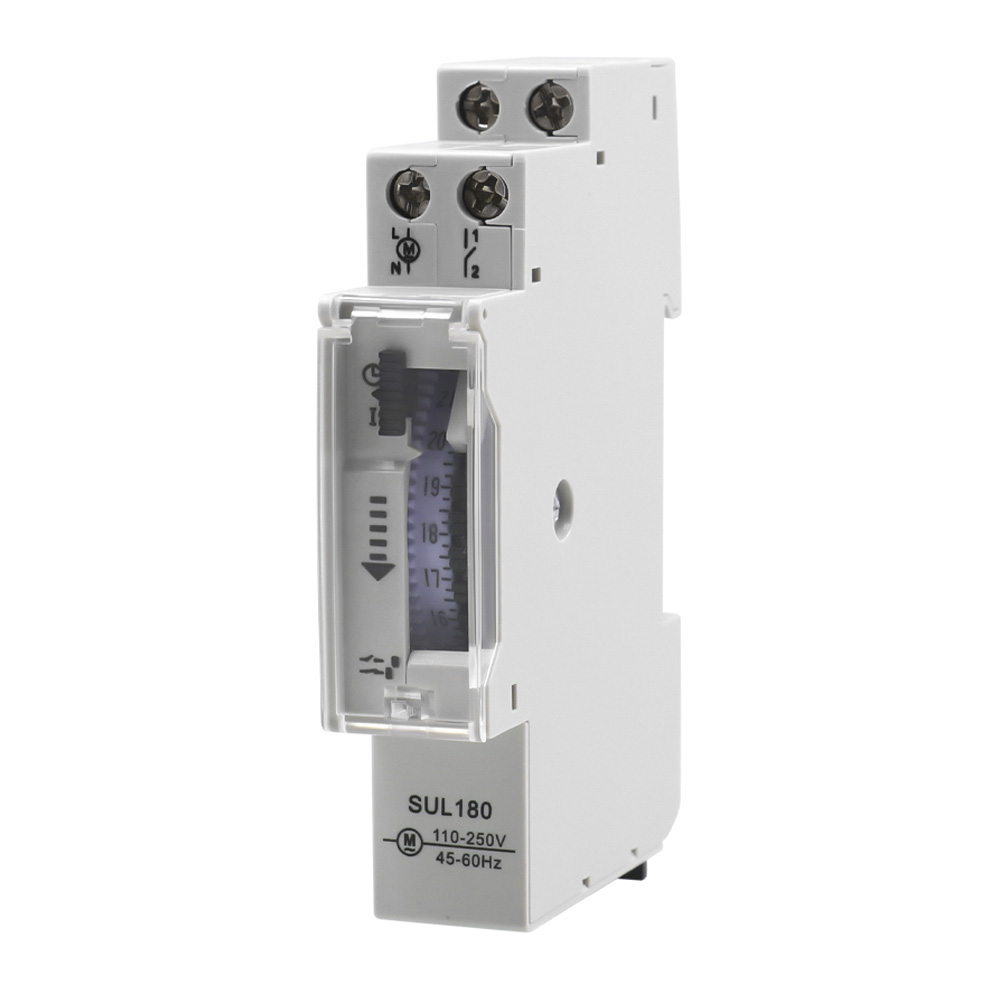

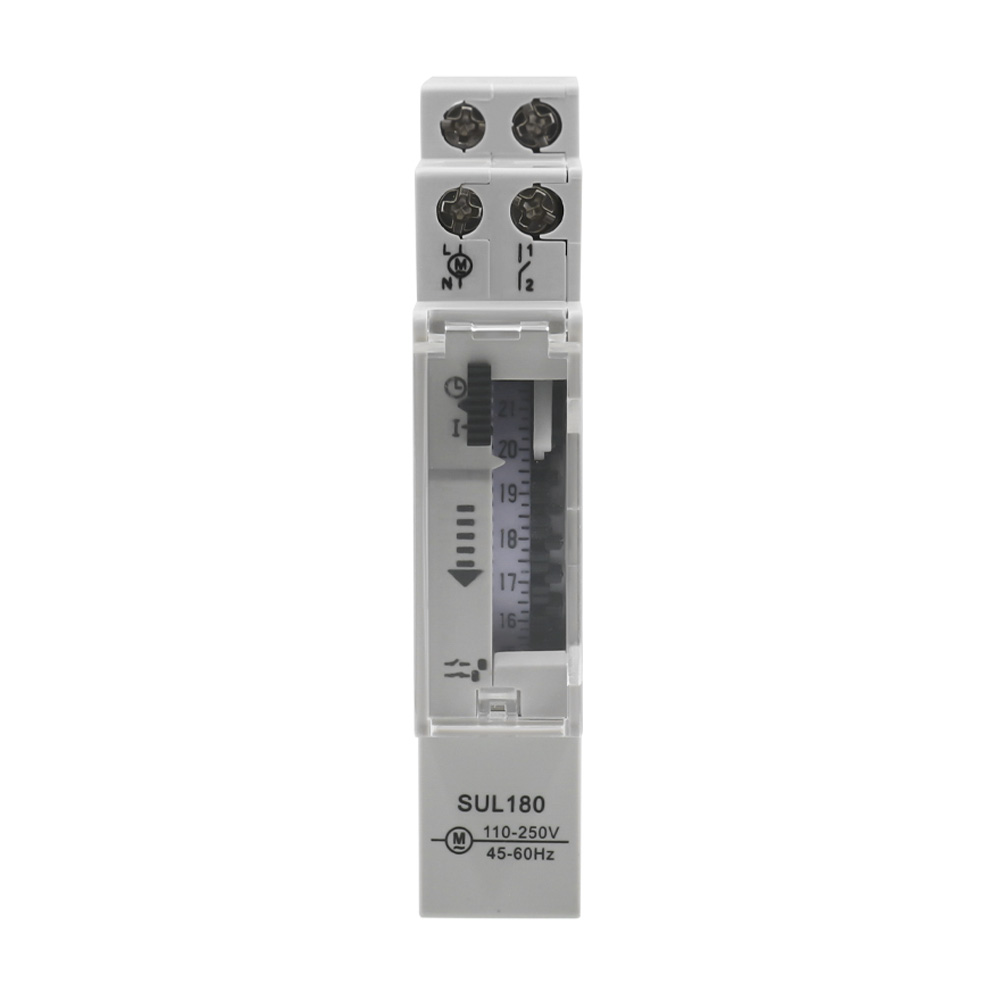

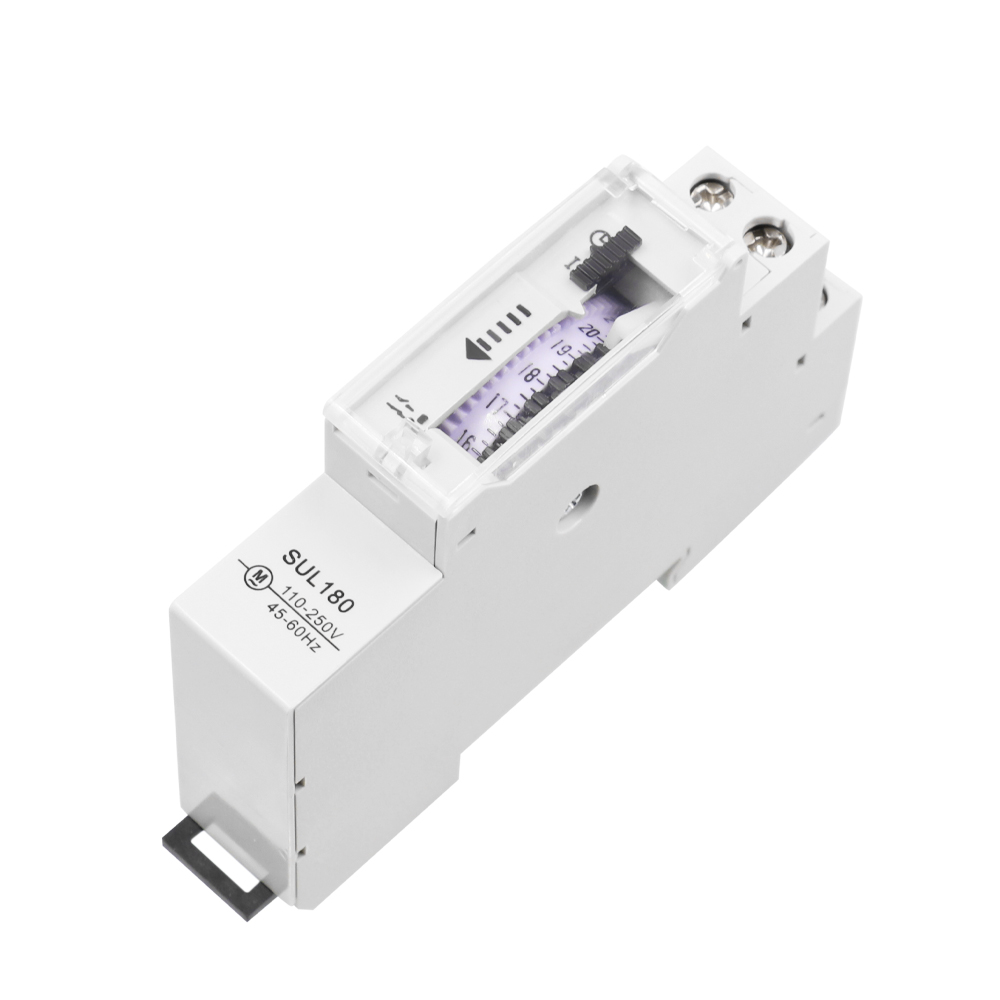

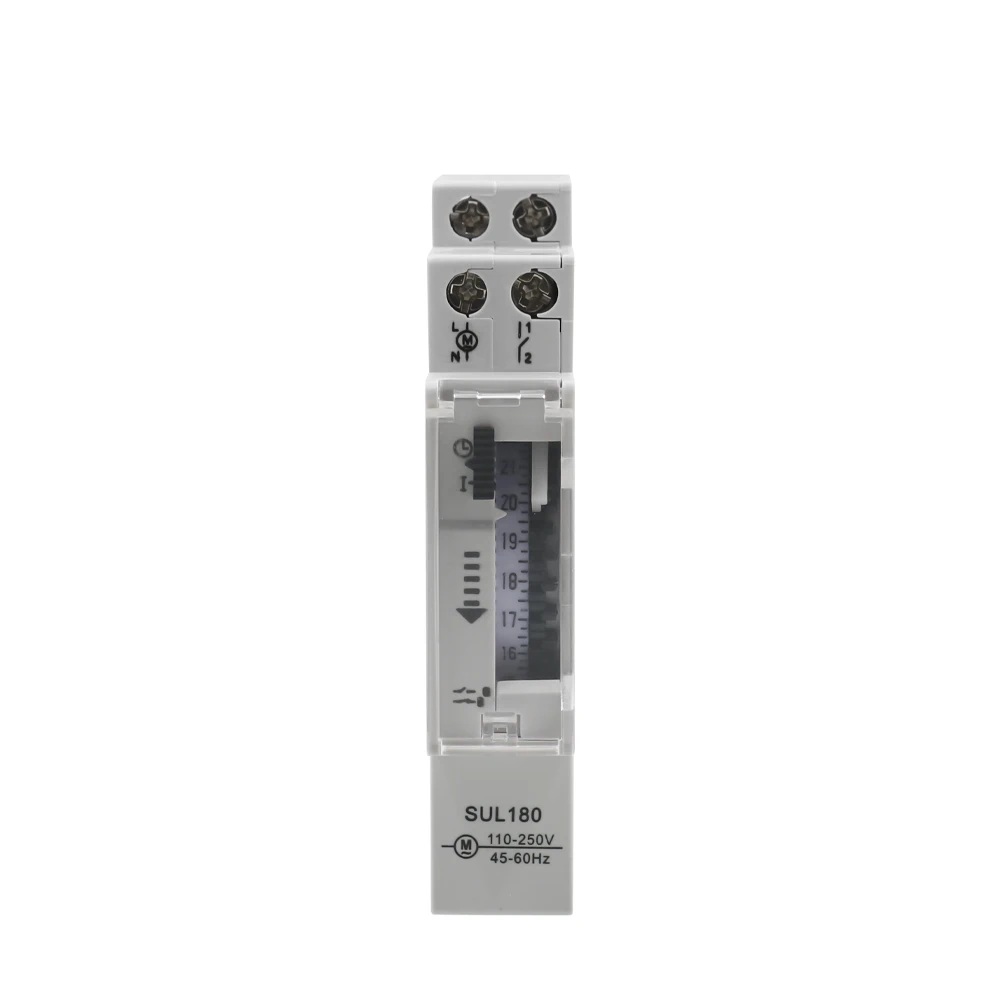

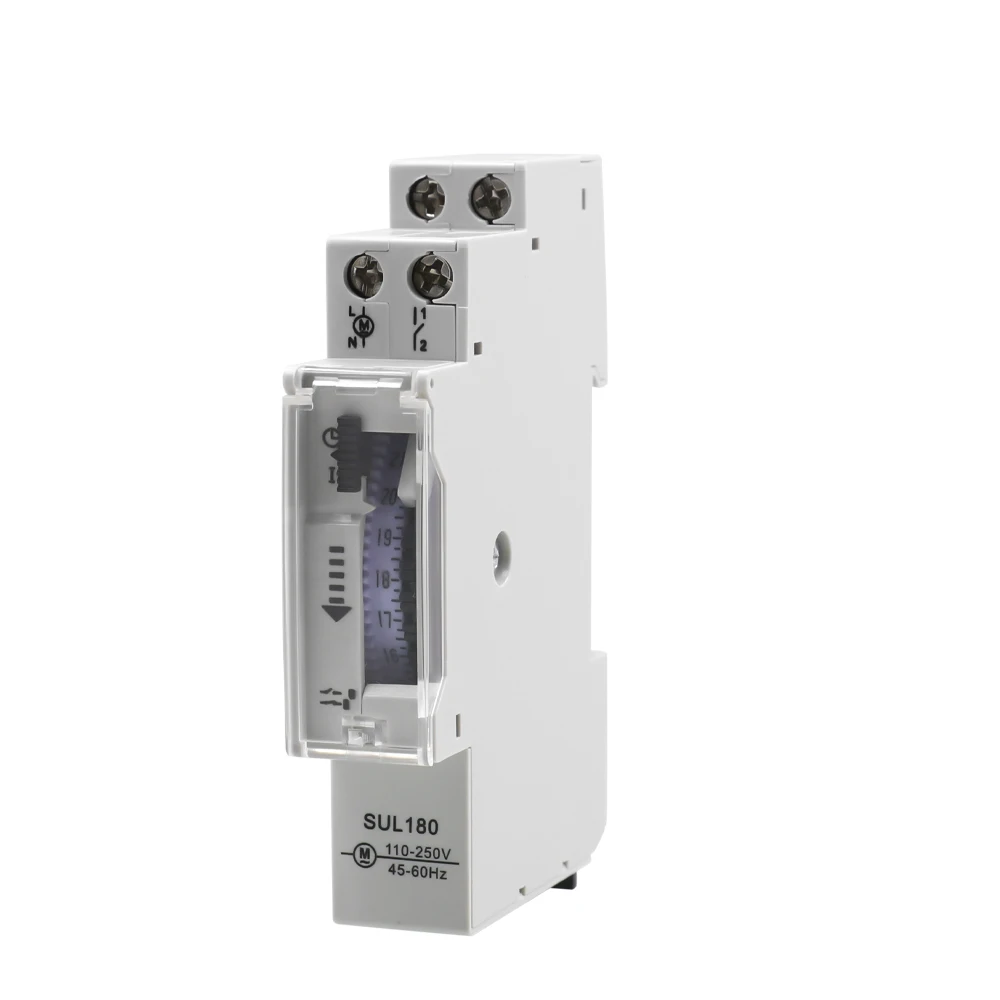

ManHua Mechanical Timer Switch 45-60Hz 24 Hour 110-250V 16A Mechanical Programmable DIN Rail Time Switch SUL180

Specifications:

Rated voltage:220V-240VAC+-10%

Frequency:45/60Hz(common use)

Power consumption:0.5W

Drive method:Quartz controlled stepping motor

Cycle:24 hours

Time precision:±3Sec/day at 22℃

Load:Circuit : Separate circuit(voltage is not applied to the load circuit)

          Switch construction : SPST

          Manual ON/OFF : ON/AUTO/OFF switch

          Capacity : Resistive load  16A

                            Incandescent lamp  10A

                            Inductive(cosφ=0.7）  12A

                            Motor(cosφ=0.7)  110VAC 750W,220VAC 1500W

Setting:Present time setting:Turn the dial till the index is in the current time

             ON/OFF program setting:15 Minutes

             Minimum unit:15 Minutes

             Minimum interval:15Minutes

             No.of ON/OFF operations:96 operations

Working reserve time:72 hours

Ambient temperature :-10℃~+50℃

Ambient humidity:Max.85%

Application：

This mechanical timer product can automatically switch on and switch off various kindsof electric equipments according to the fixed time. It is widely used in all electrical equipments and household appliances where needs to be controlled. Such as street lamps, neon lights, advertisement board lights, production equipments, broadcasting andTV equipments and ect.,

Analogue time switch:

- 1 channel

- Screw terminals

- Manual switch with 3 positions:Permanent ON/AUTO/permanent OFF

- Switching status display

- Daily program

- With power reserve (exchangeable NiMH rechargeable battery)

- 96 switching segments

- Quartz controlled

- Shortest switching time: 15 minutes

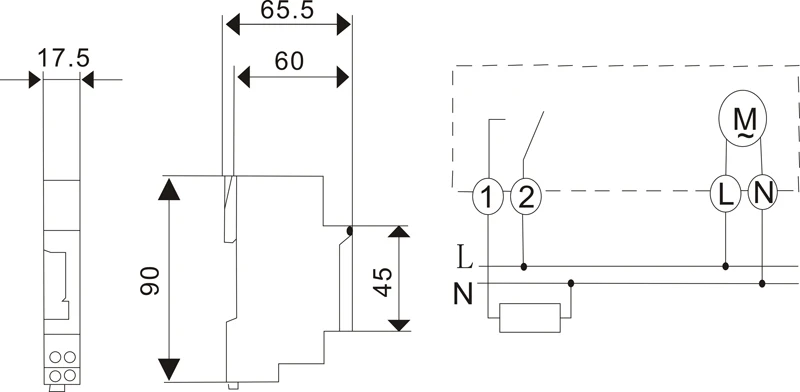

Dimensions：
