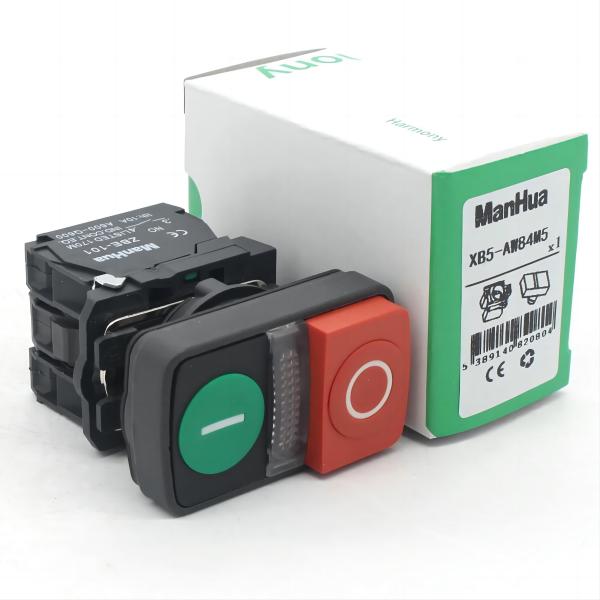

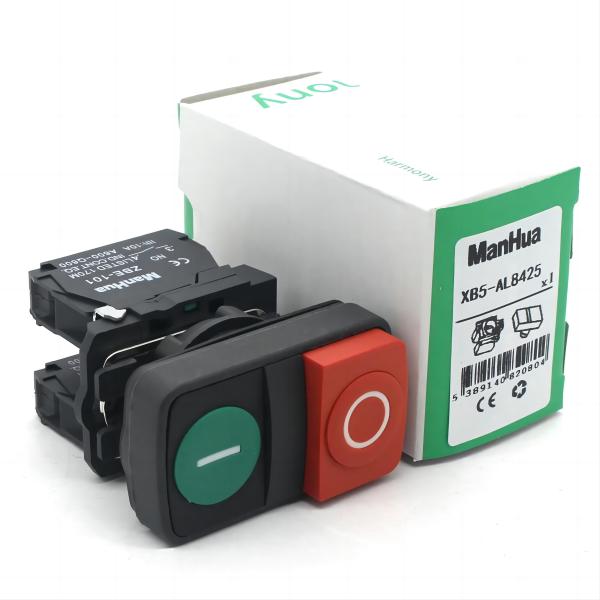

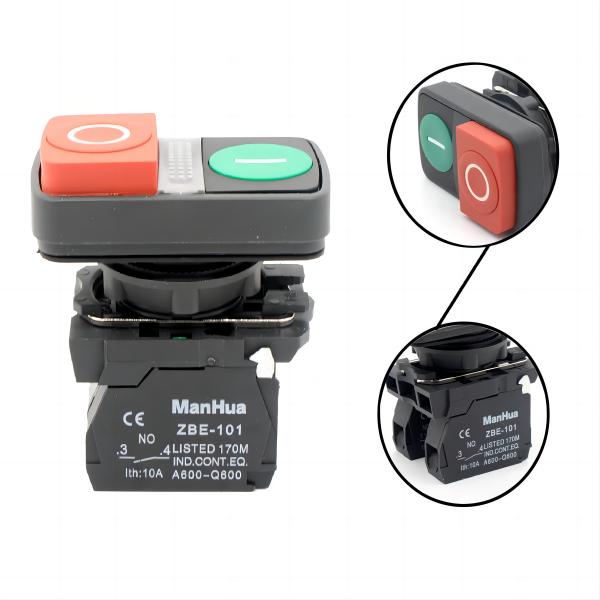

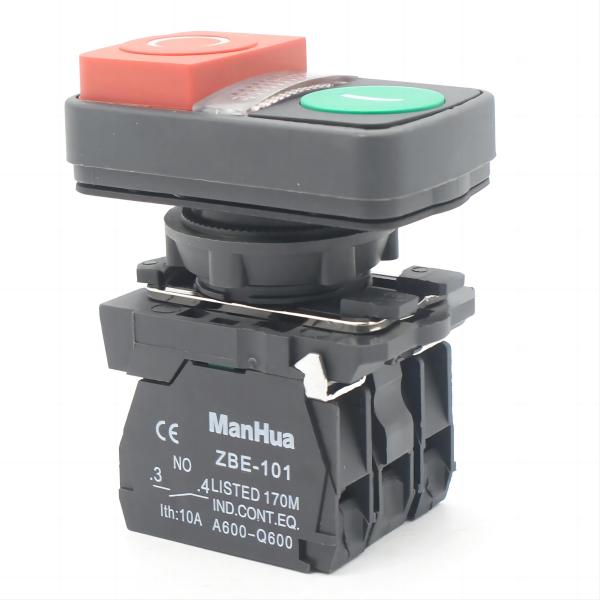

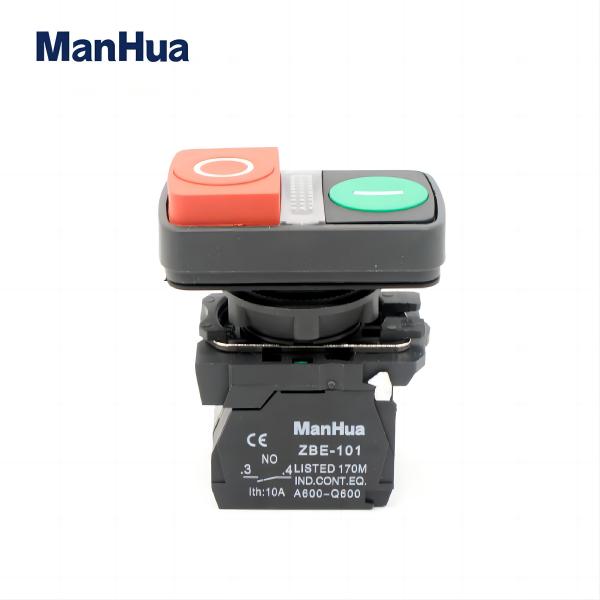

Manhua XB5-AW84M5 & XB5-AL8425 Twin push button switch red-green power supply on off button with LED indicator light

Product description:

XB5 series are suitable to industrial control circuit with AC 50 Hz or 60Hz,0-380V rated voltage and 0-220V DC operating voltage, used for the control of magnetic starter, contactor, relay and other electric circuit.Structure The switch unit slow-break and self-cleaning. It uses modular combustion mode and you can combine from one to eight switch units optional, so can make the product meet requirement of many special control circuits. It can be connected more safely and installed firmly. Economical plastic type can be used in acid environment.

Specification:

1) Operational Voltage: ≤660V

2)Ambient temperature: -25 °C~  +55°C

3) Operational humidity: 45% to 90%

4) Power-frequency withstand voltage: 2500V AC, 1min

5) Contact resistance: ≤50mΩ

6) Mechanical life: Monentary 1000, 000, others:10, 000

7) Electric life:  Monentary 100, 000 others:50000

Work environment:

1)Surrounding temperature:-25℃~+55℃

2) Air relative humidity:≤85%

3) It can be normally work under following condition:

Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h:

4) Pollution grade is III,installation sort is III,protection grade is up to IP65.

5) Altitude:≤2000m.
