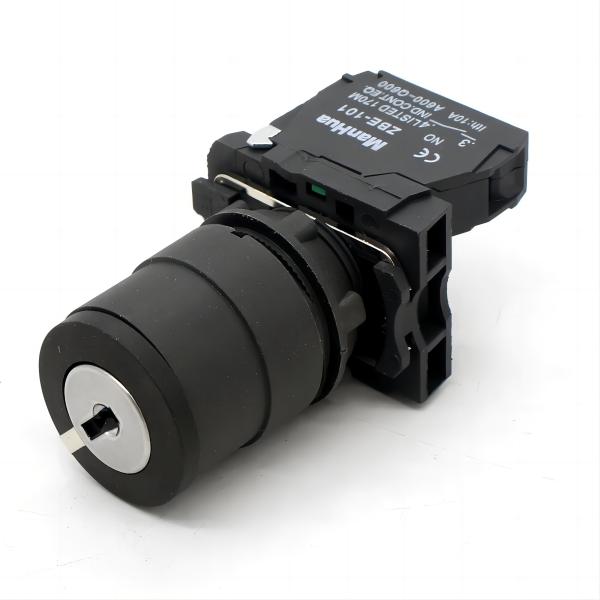

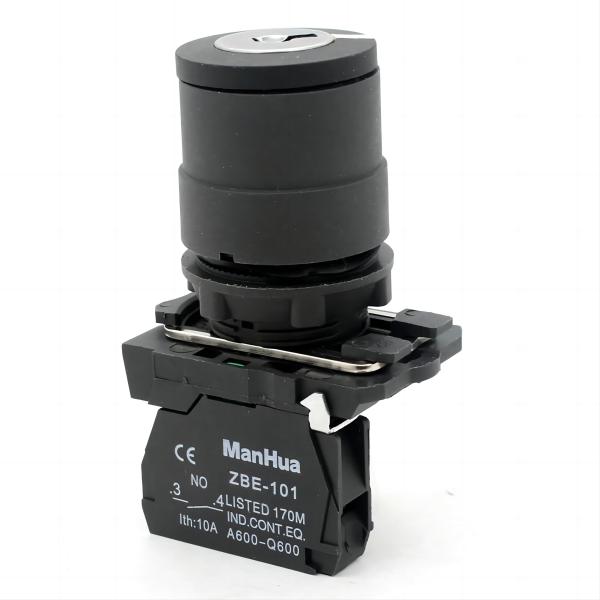

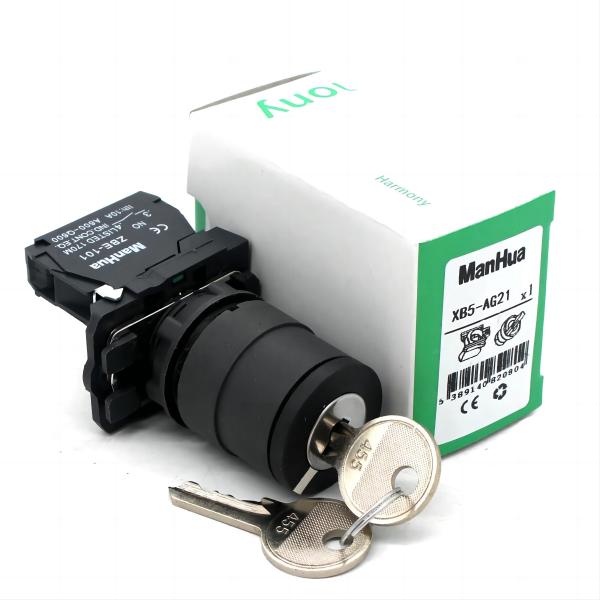

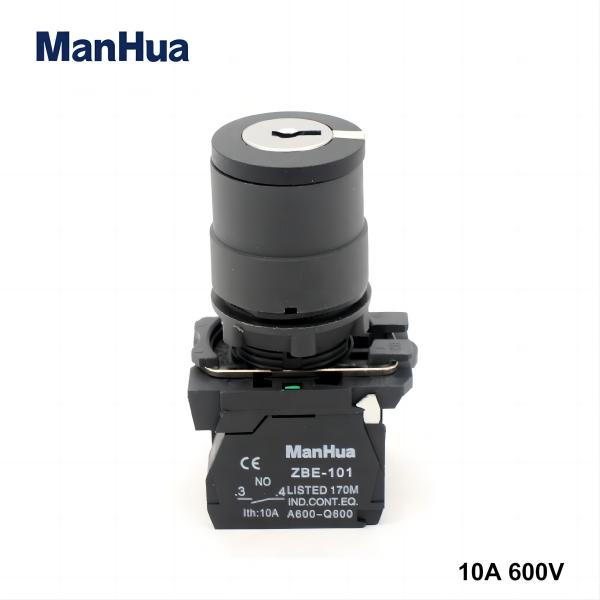

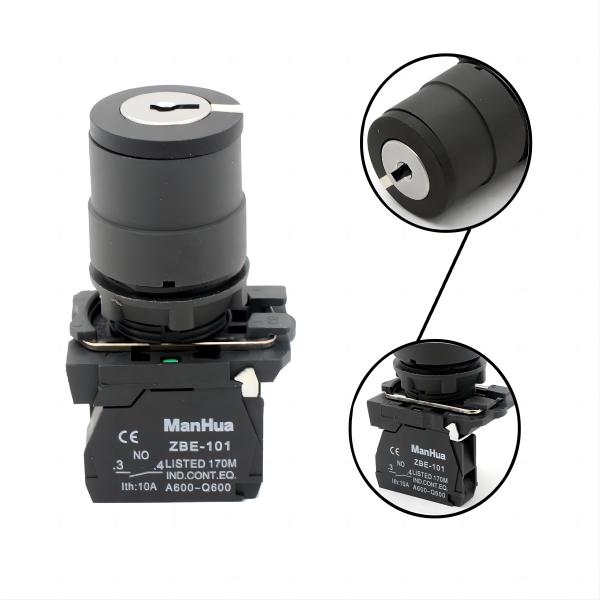

Manhua Silver contact button switch XB5-AG21 Two Position Selector 1NO Open Hole Black Rotary switches with key

Product description:

XB5 series are suitable to industrial control circuit with AC 50 Hz or 60Hz,0-380V rated voltage and 0-220V DC operating voltage, used for the control of magnetic starter, contactor, relay and other electric circuit.Structure The switch unit slow-break and self-cleaning. It uses modular combustion mode and you can combine from one to eight switch units optional, so can make the product meet requirement of many special control circuits. It can be connected more safely and installed firmly. Economical plastic type can be used in acid environment.

Technical Specification:

Operating temperature:-25C-55C(no freezing)The average value in 24 hrs no more than+35℃

Operating humidity:45~85%rh; 45~85%rh(no condensation)

Contact resistance: ≤30mΩ

Insulation resistance: ≥100M

The highest Dielectric streagth:3000VAc50hz

Vibration resistance: 50hz,Amplitude1.0mm

Shock resistance: >10g

Life---Mechanical: Momentary:>2000000 times: alternate, selector>1000000 times: key-lock, emergency>1000000 times

Life---Electrical: >500000tmes

Work environment:

1)Surrounding temperature:-25℃~+55℃

2) Air relative humidity:≤85%

3) It can be normally work under following condition:

Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h:

4) Pollution grade is III,installation sort is III,protection grade is up to IP65.

5) Altitude:≤2000m.
