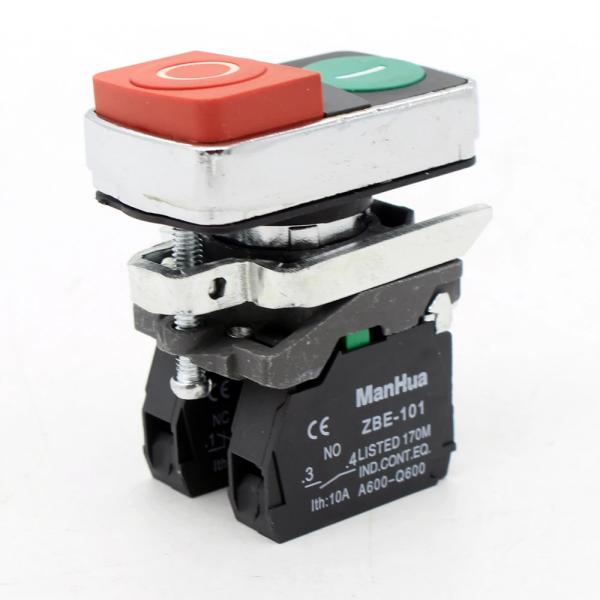

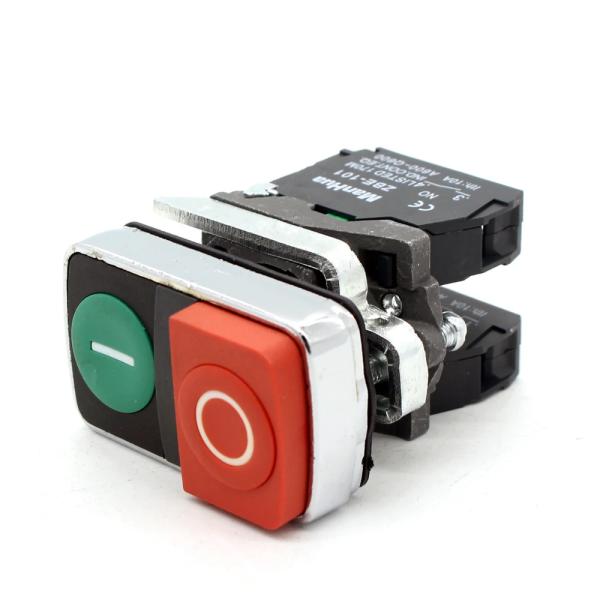

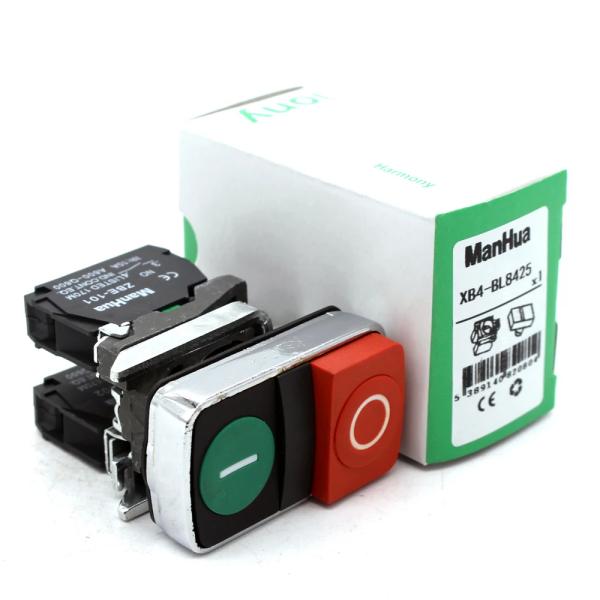

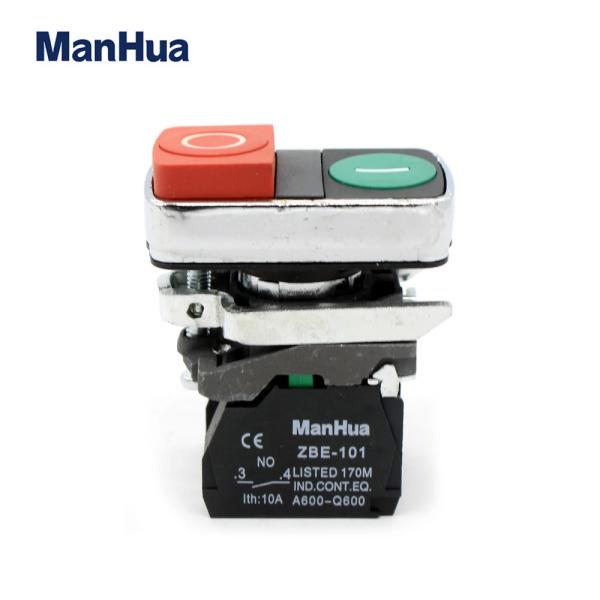

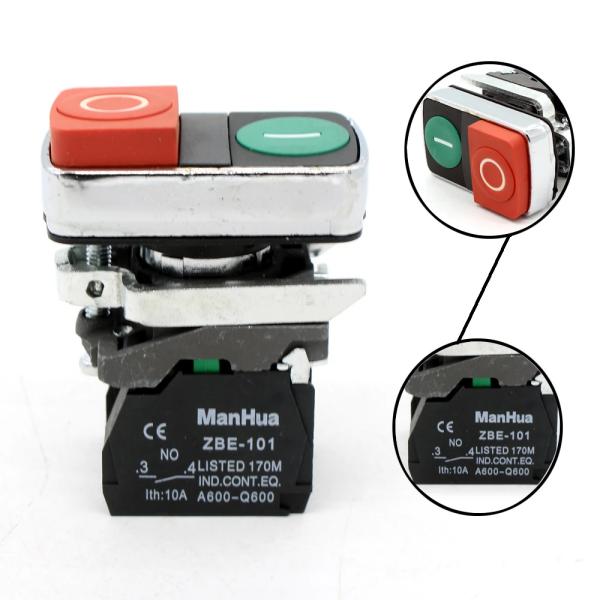

Contact usManHua XB4-BL8425 Twin button switches RED GREEN two color push button switch
Description:
The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.
Specification:
1.Operational Voltage: ≤660V
2.Ambient temperature: -25 °C~ +55°C
3.Operational humidity: 45% to 90%
4.Power-frequency withstand voltage: 2500V AC, 1min
5.Contact resistance: ≤50mΩ
6.Mechanical life: Monentary 1000, 000, others:10, 000
7.Electric life: Monentary 100, 000 others:50000
Work environment:
1)Surrounding temperature:-25℃~+55℃
2) Air relative humidity:≤85%
3) It can be normally work under following condition:
Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h:
4) Pollution grade is III,installation sort is III,protection grade is up to IP40.
5) Altitude:≤2000m.
Dimension:
