Appearance |
 |
 |
 |
 |
|
Type |

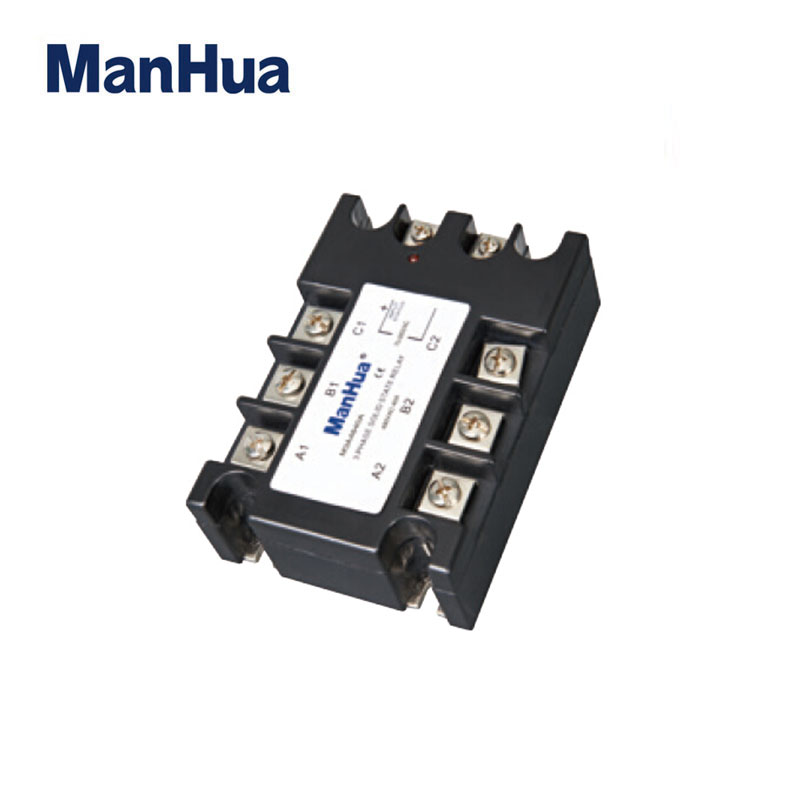

Basic Type M3D 38 A |

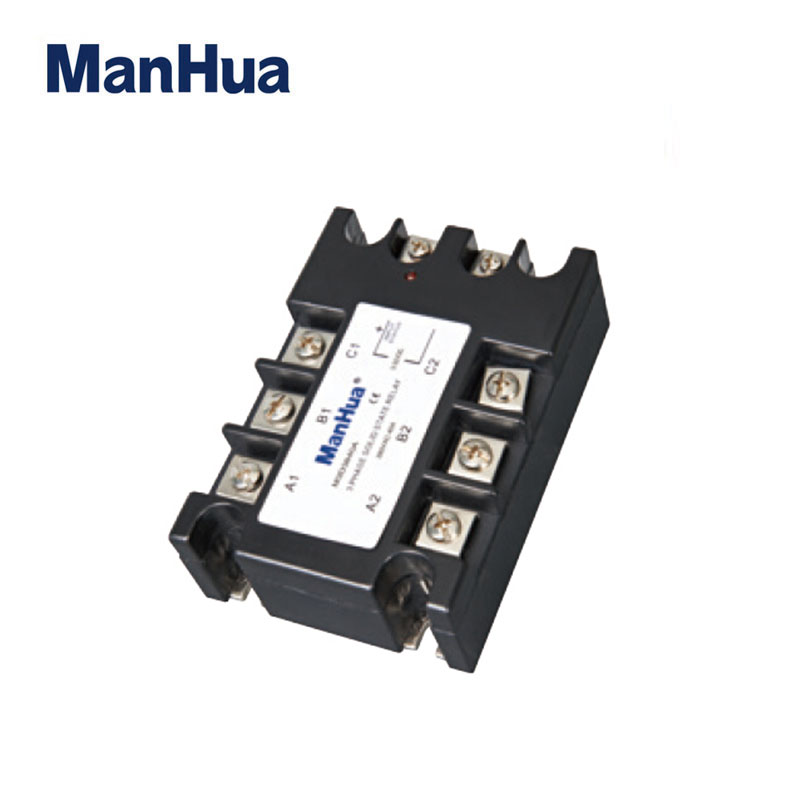

Enhanced Type M3D 48 A |

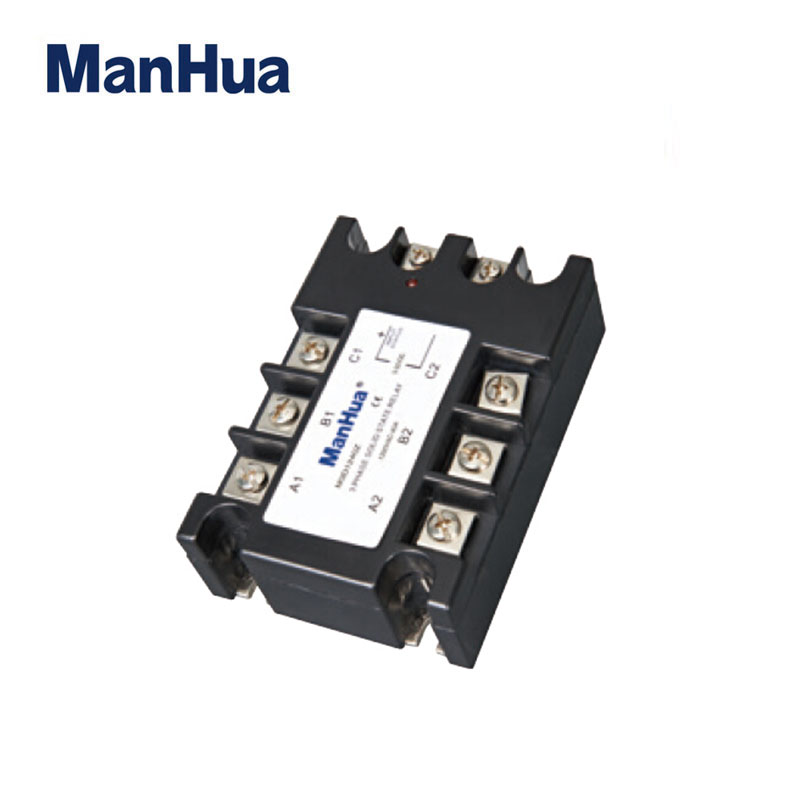

Enhanced Type M3D 120 A |

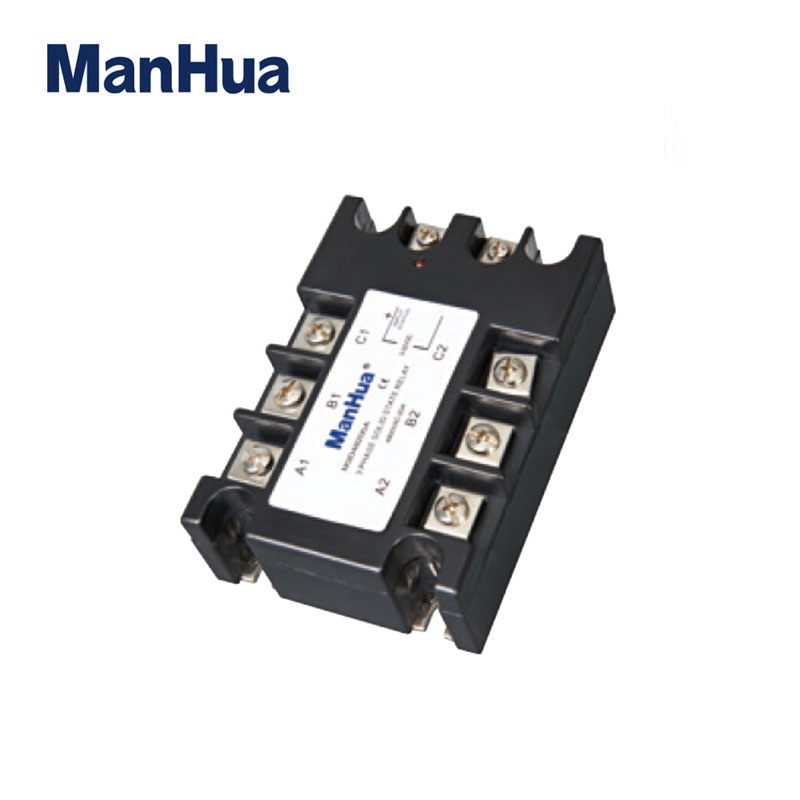

Basic Type M3A 48 A |
|
Load Current |
10A、15A、20A、25A 、30A 、 40A 、 50A、60A、75A、80A、 100A 、120A |
150A、200A |
10A、15A、20A、25A 、 30A 、 40A 、50A、60A、75A、 80A、 100A 、120A |
10A、15A、20A、25A 、 30A 、 40A 、50A、60A、75A、80A 、 100A 、120A |
|
Load Voltage |
380VAC |
480VAC |
1200VAC |
480VAC |
|
Control Voltage |
3-32VDC |
3-32VDC |
3-32VDC |
70-280VAC |
|
Control Current |
10-68mA |
10-68mA |
10-68mA |
AC≤12mA |
|
On Voltage |
≤1.8V |
≤2V |
≤2V |
≤1.8V |
|
Off Leakage Current |
≤10mA |
≤10mA |
≤10mA |
≤10mA |
|
On-off Time |
≤10ms |
≤10ms |
≤10ms |
≤10ms |
|
Dielectric Strength |
2500VAC |
2500VAC |
2500VAC |
2500VAC |
|
Insulation Resistance |
1000MΩ/500VDC |
1000MΩ/500VDC |
1000MΩ/500VDC |
1000MΩ/500VDC |
|
Ambient Temperature |
-30℃~+75℃ |
-30℃~+75℃ |
-30℃~+75℃ |
-30℃~+75℃ |
|
Mounting Methods |
Screw mount |
Screw mount |
Screw mount |
Screw mount |
|
The Work Instructions |
LED |
LED |
LED |
LED |
|
Weight |
450g |
450g |
450g |
450g |
|

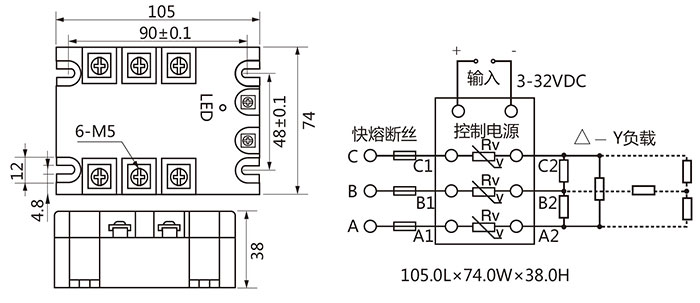

Wiring Drawing(mm) |
 |
|||
|
Instruction |
1、load current 10A,should install radiator,upwards 40A should add fan for force cooling or water cooling. 2、when using lnductive load, please add a varistor at the output side, the value is 1.6-1.9 mutiple of load voltage. |
|||
