Type: M803C(TDK0302LA-R485)

Power consumption: About 1.5VA

Control output: 2*5A , 250VAC(Resistance load)

Display device: LED display

Humidity set: PID parameters , self-tuning

Temperature set: 0-99.9℃

Output control: 0-99.9%RH

Turn different set: Temperature 0-9℃ , Humidity 1-9%RH

Accuracy:Temperature : ±1℃,Humidity ±5%RH

Working mode: 2 modes,0,1

Ambient temperature: -10-70℃

Ambient humidity: 45-85%RH

Mechanical life: at least 3000 000 times

Weight.Dimension: About 210g , 72*72*111mm

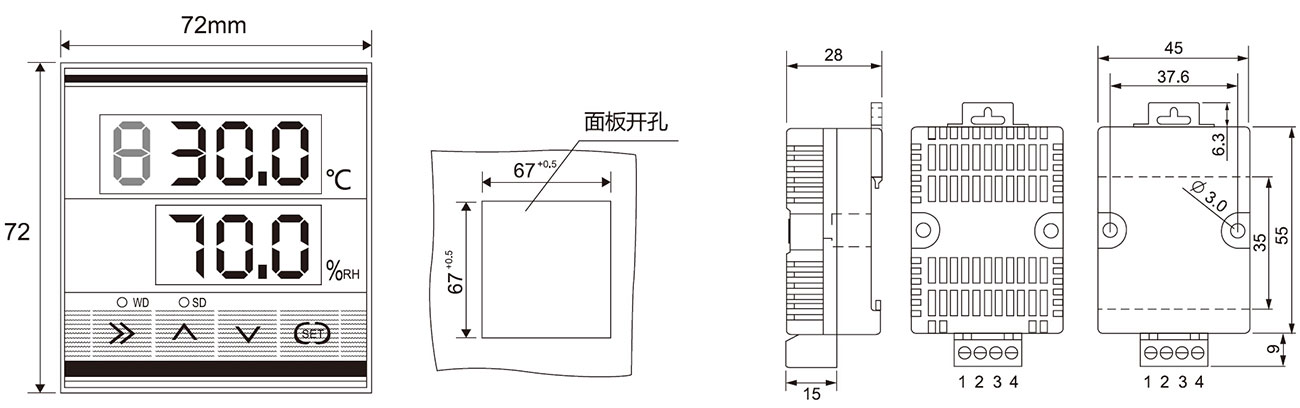

Inatallation Dimension:

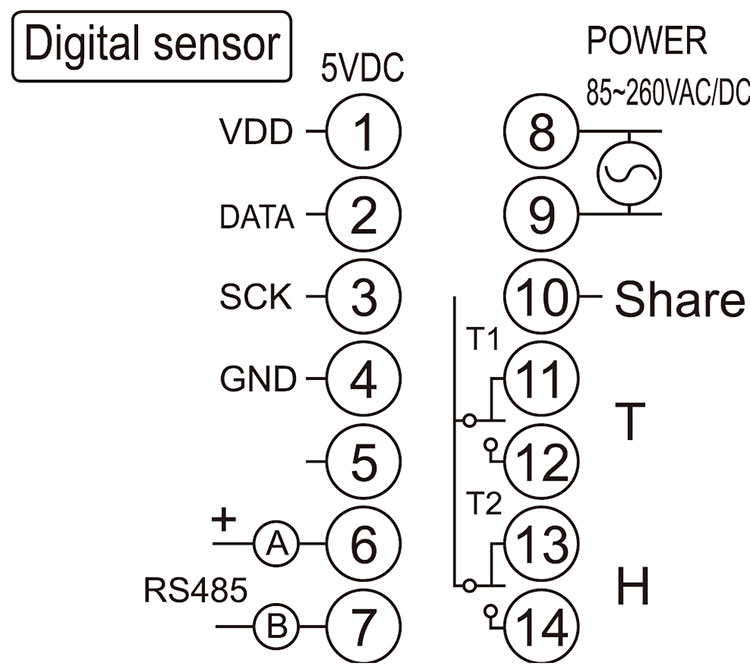

Witing Diagram:
