Type: XMTD

Operating Voltage: AC220V ±10%, 50~60Hz

Output contact capacity: AC220V (resistance) 3A

Input signal: Thermocouple

PID adjustment: OUTPUT 0-10MA OR 4-20MA

Display accuracy: <=1.0%F.S

Control accuracy: <=0.75%F.S

Operation temperature: -10-50°C

Operation humidity: <=85%

Dimension: 72*72*115mm

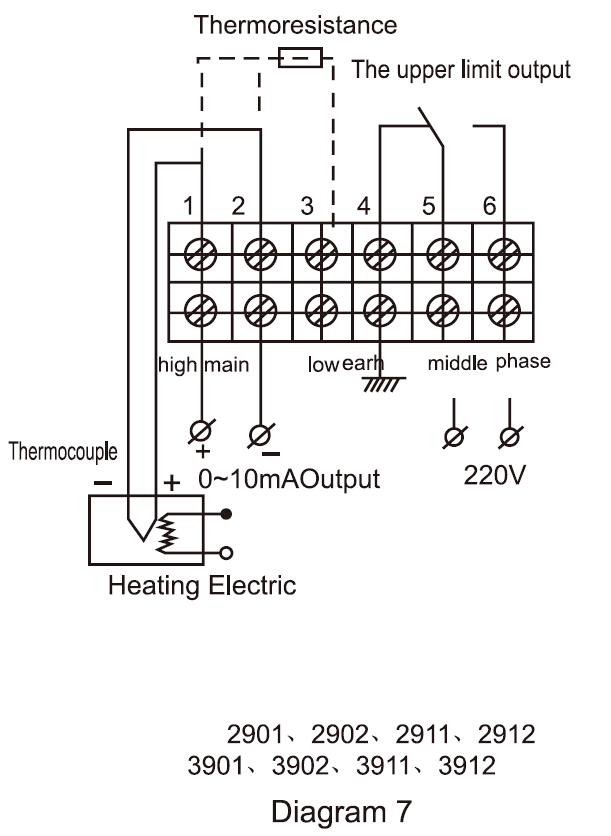

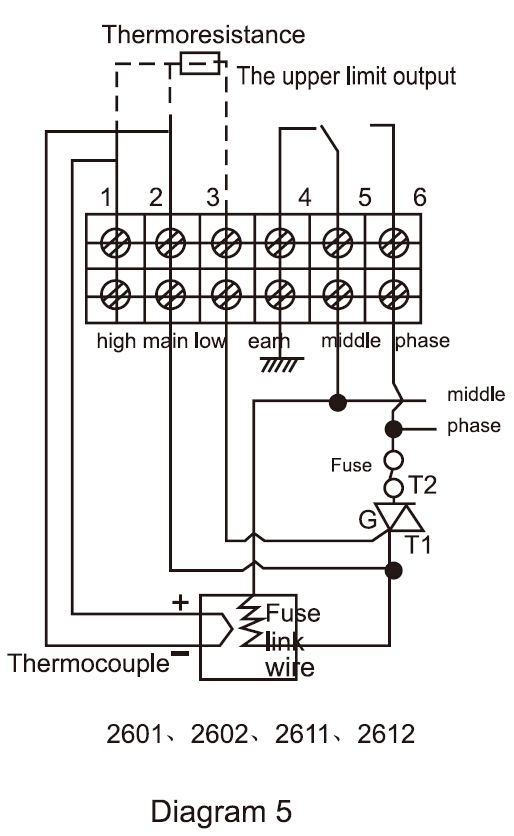

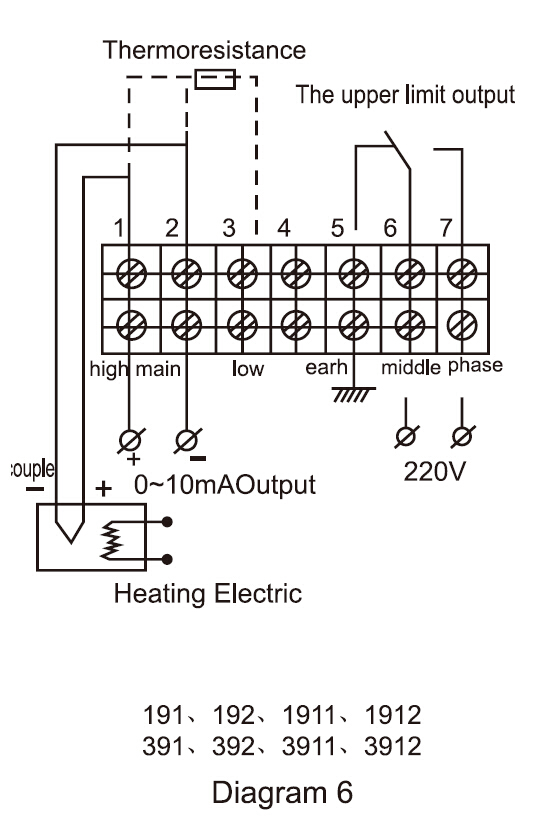

Connection Diagram:
