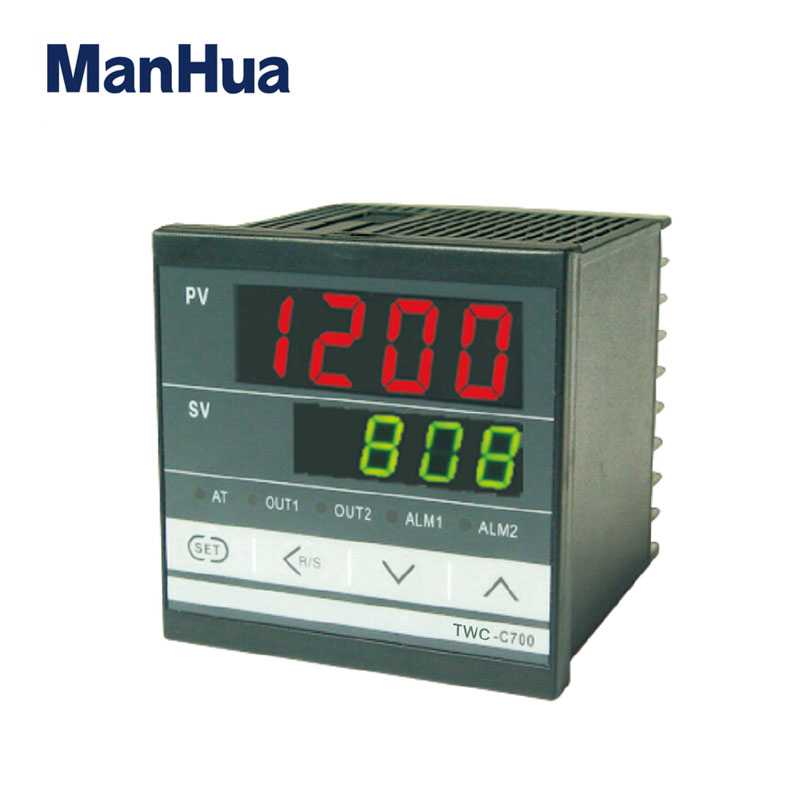

TEMPERATURE CONTROLLER TWC-C700

Type: TWC-C700
Operating Voltage: 220VAC 50/60Hz
Input: TC,RTD , standard voltage/current signal Request quotation

Type: TWC-C700

Operating Voltage: 220VAC 50/60Hz

Input: TC,RTD , standard voltage/current signal

Accuracy: ±0.5%FS

Display: SV PV: -1999~1999

Control mode: PID parameters,self-tuning

Output control: voltage/current,relay,SSR,SCR,Alarm(max 2)

Output contact capacity: 250VAC 3A( Resistive)

Insulation resistance: >50MΩ(500VDC)

Environmental conditions: 0~50℃ , 30~85%RH noncorrosive gas area

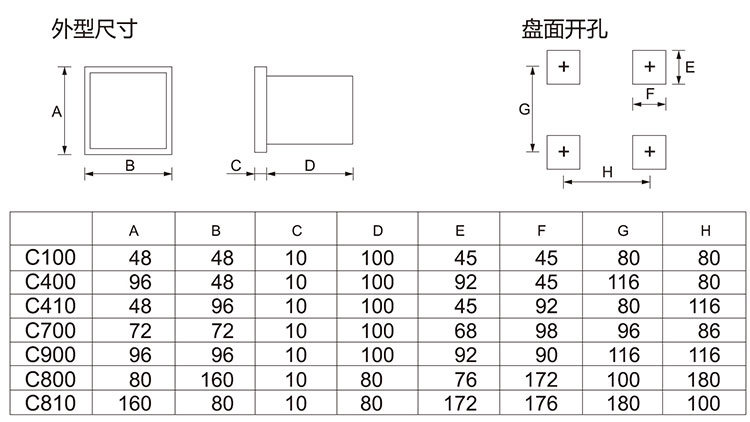

Inatallation Dimension:

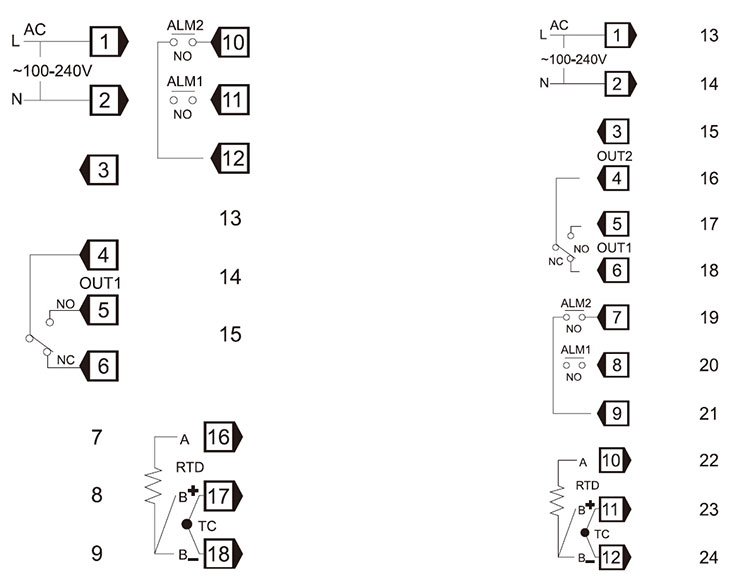

Witing Diagram:
