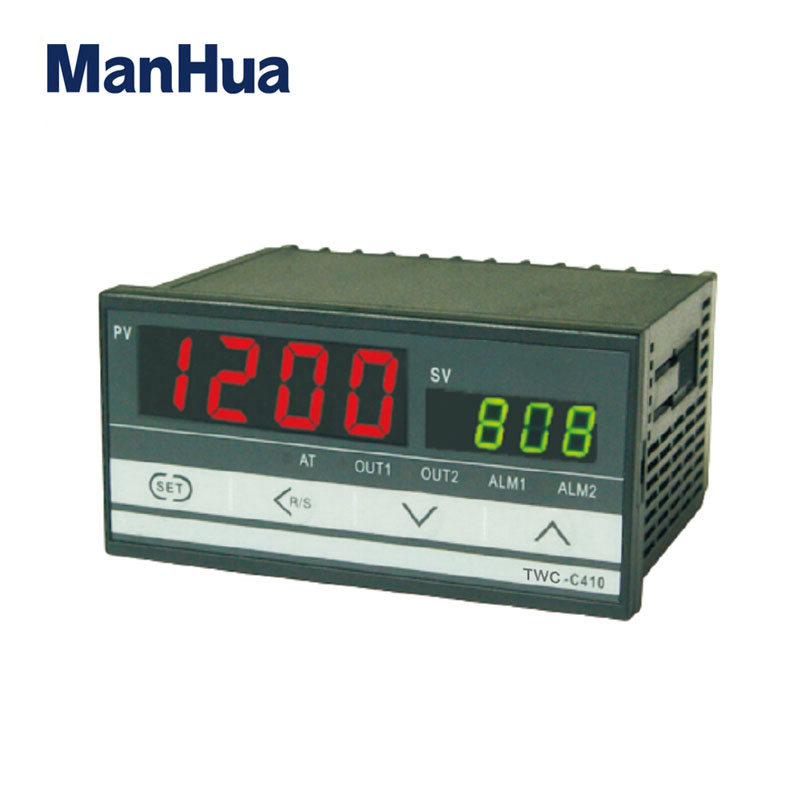

TEMPERATURE CONTROLLER TWC-C410

Type: TWC-C410
Operating Voltage: 220VAC 50/60Hz
Input: TC,RTD, standard voltage/current signal Request quotation

Type: TWC-C410

Operating Voltage: 220VAC 50/60Hz

Input: TC,RTD, standard voltage/current signal

Accuracy: ±0.5%FS

Display: SV PV: -1999~1999

Control mode: PID parameters,self-tuning

Output control: voltage/current , relay , SSR , SCR,Alarm(max 2)

Output contact capacity: 250VAC 3A( Resistive)

Insulation resistance: >50MΩ(500VDC)

Environmental conditions: 0~50℃,30~85%RH noncorrosive gas area

Inatallation Dimension:




Witing Diagram:
