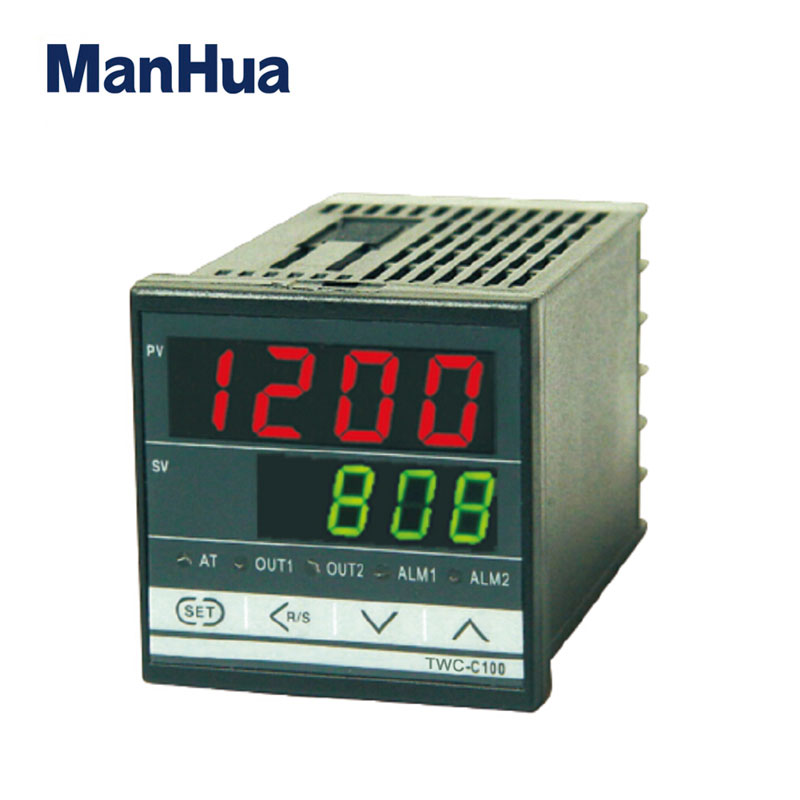

Type: TWC-C100

Operating Voltage: 220VAC 50/60Hz

Input: TC,RTD, standard voltage/current signal

Accuracy: ±0.5%FS

Display: SV PV： -1999~1999

Control mode: PID parameters,self-tuning

Output control: voltage/current , relay , SSR , SCR,Alarm（max 2）

Output contact capacity: 250VAC 3A( Resistive)

Insulation resistance: >50MΩ（500VDC）

Environmental conditions: 0~50℃,30~85%RH noncorrosive gas area

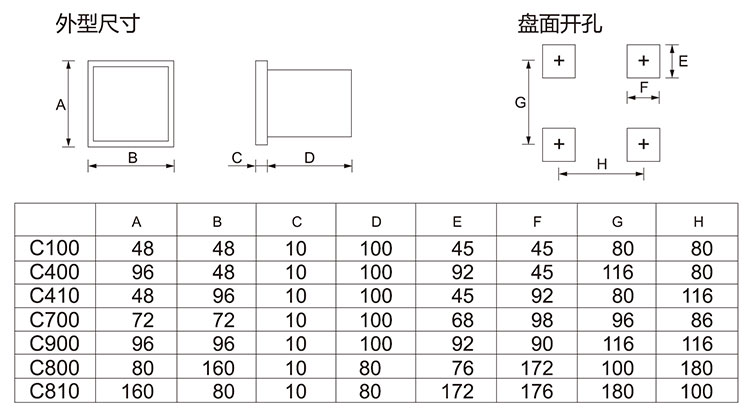

Inatallation Dimension:

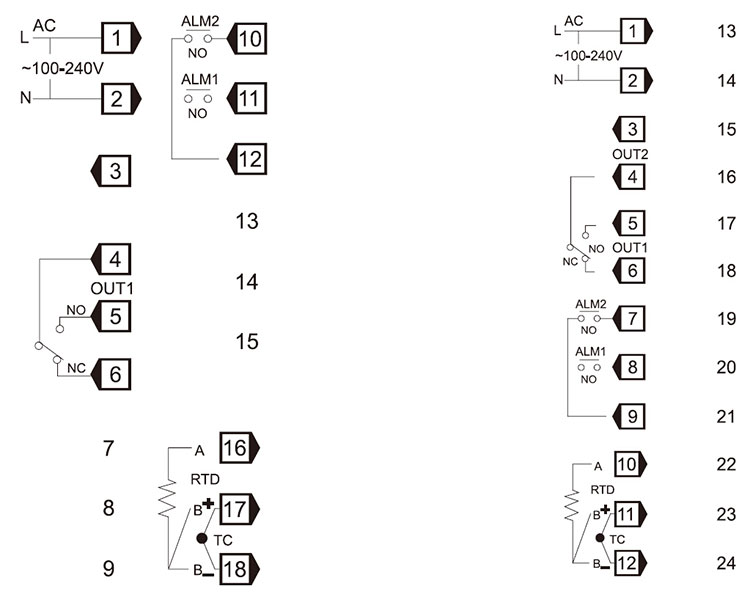

Witing Diagram:
