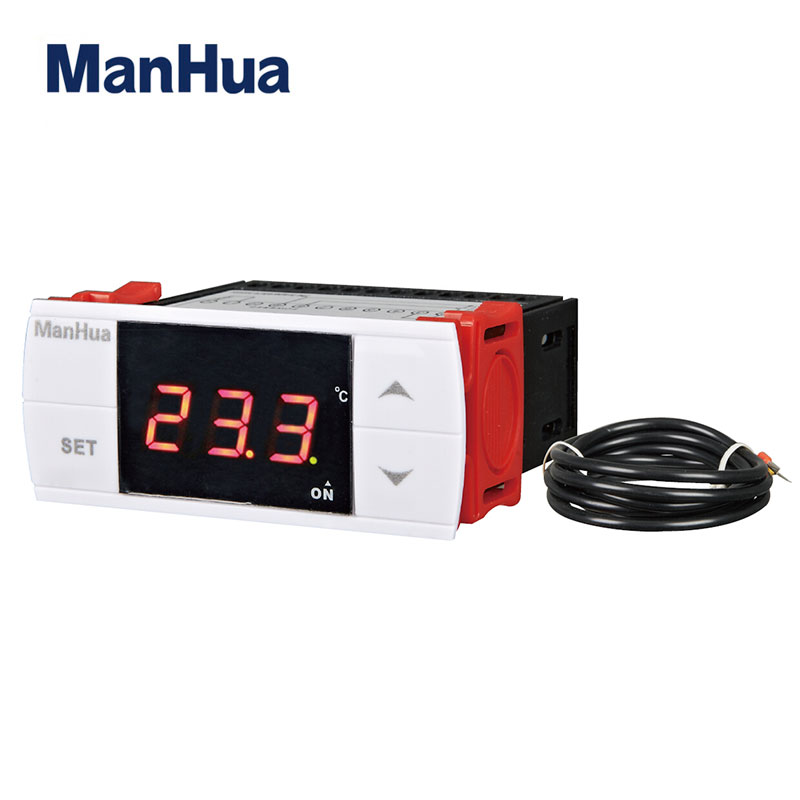

Type: TC08

Input: One sensor NTC（10kΩ/25℃，B Value3950K）1.5 meters

Measurement accuracy: Inside -30 ～50℃ ±1℃±0.5%FS， other ±2℃±0.5%FS

Measuring range: -45～80℃

Temperature control values: SV PV： -1999~1999

Control mode: -45～80℃

Output contact capacity: 220VAC 10A

Dimension: W82mm*H35mm*D68mm

Hole size: W71mm*H29mm

Insulation resistance: >50MΩ(500VDC)

Insulation strength: 1500VAC/1min

Power consumption: <5VA

Environmental conditions: -10～50℃，10～90%RH noncorrosive gas area

Weight: About 150g

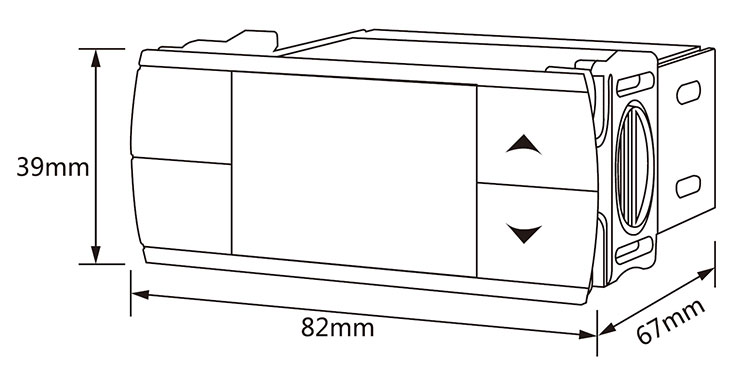

Inatallation Dimension:

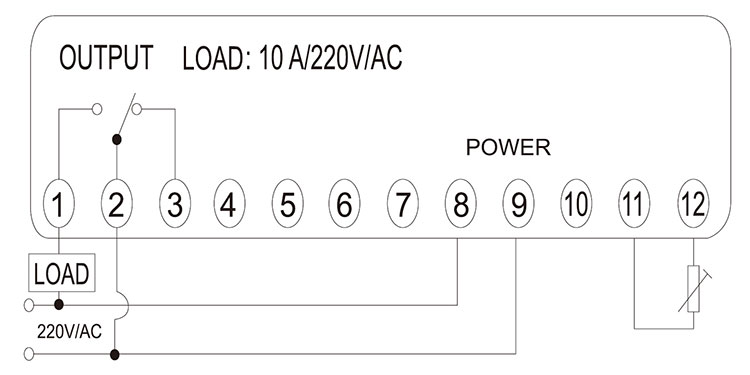

Witing Diagram:
