Type: MX-902

Power Supply: 230VAC , 110VAC , 85-265VAC 50/60Hz

Control Mode:

Dim PID control

Stepping control

Accuracy: ±0.5%FS

Environmental Conditions: 0~50℃ , <85%RH noncorrosive area

Power consumption: <5VA

Main Output: SSR，Relay

Alarm mode: Diviation alarm

Signal Input:

Thermocouple:K.J.R.S.B.E.T.U.L W5Re/W26Re

Hotresistance:Pt100 Jpt100

Dimension(mm) :

Frame(W×H): 72×72mm

Installation: Embed instrument in the hole on the panel face

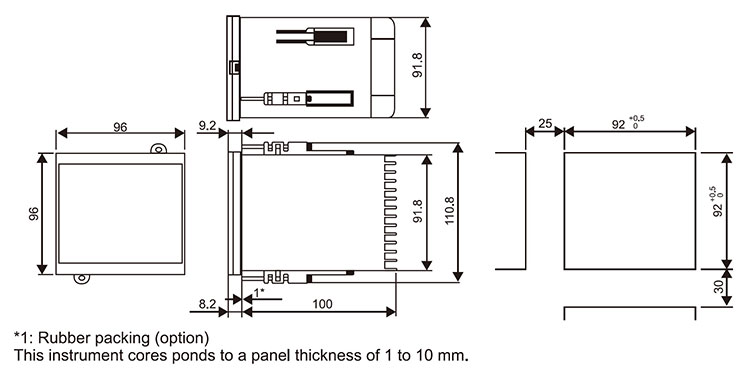

Inatallation Dimension:

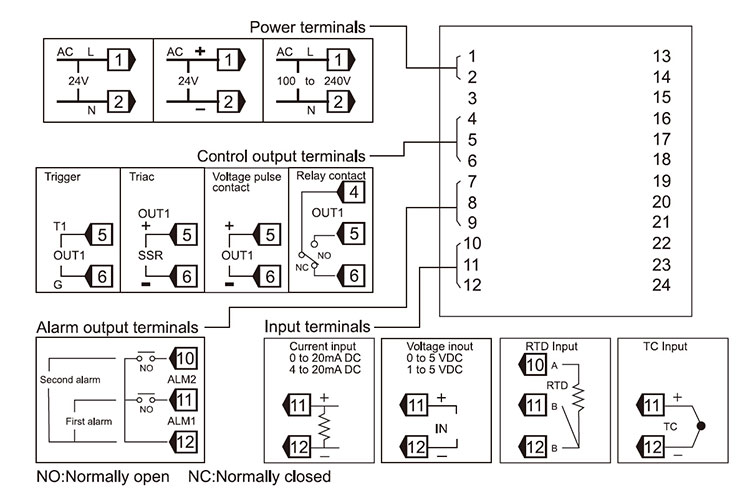

Connection Diagram:
