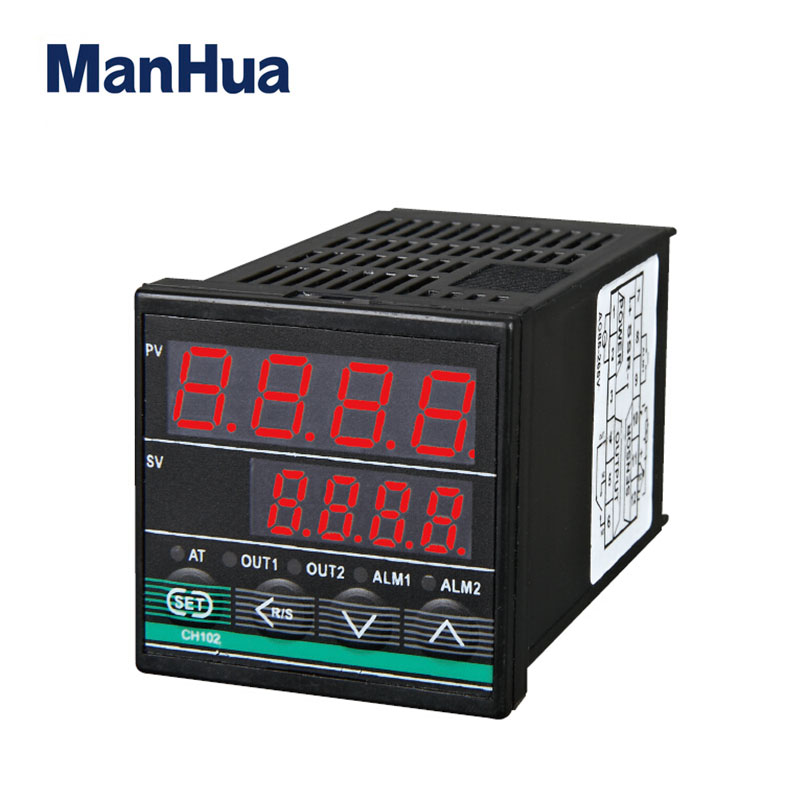

TEMPERATURE CONTROLLER MX-102

Type: MX-102
Power Supply: 230VAC , 110VAC , 85-265VAC 50/60Hz
Accuracy: ±0.5%FS Request quotation

Type: MX-102

Power Supply: 230VAC , 110VAC , 85-265VAC 50/60Hz

Control Mode:

Dim PID control

Stepping control

Accuracy: ±0.5%FS

Environmental Conditions: 0~50℃ , <85%RH noncorrosive area

Power consumption: <5VA

Main Output: SSR,Relay

Alarm mode: Diviation alarm

Signal Input:

Thermocouple : K . J . R . S . B . E . T . U . L W5Re/W26Re

Hotresistance : Pt100 Jpt100

Dimension:

Frame(W×H): 96×48mm

Frame(W×H): 72×72mm

Frame(W×H)48×96mm

Installation: Embed instrument in the hole on the panel face

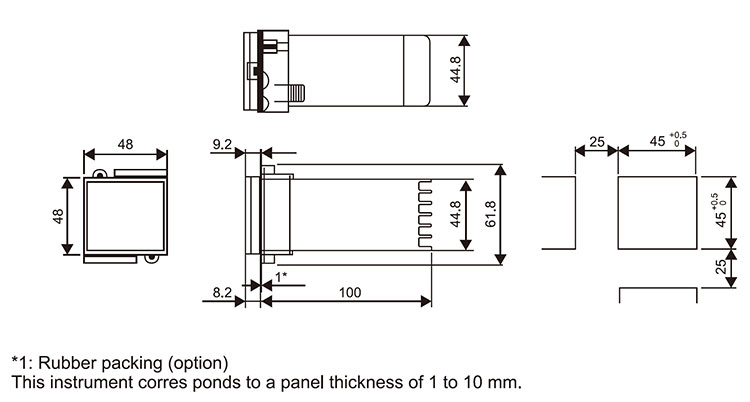

Inatallation Dimension:

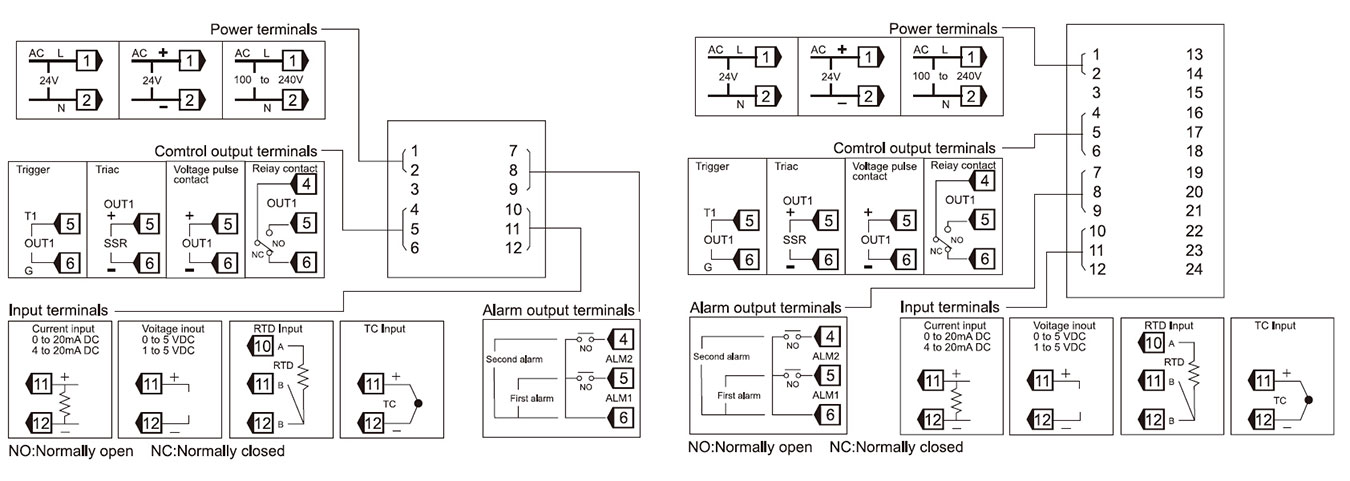

Connection Diagram:
