Type: MF-96VD

Operating Voltage: AC110V , 220V 50~60Hz

Output contact capacity: AC220V (resistance) 3A

Input signal: K , J thermocouple

PID adjustment: OUTPUT 0-10MA OR 4-20MA

Operation temperature: -10-50°C

Operation humidity: <=85%

Dimension: 72*72/96*96mm

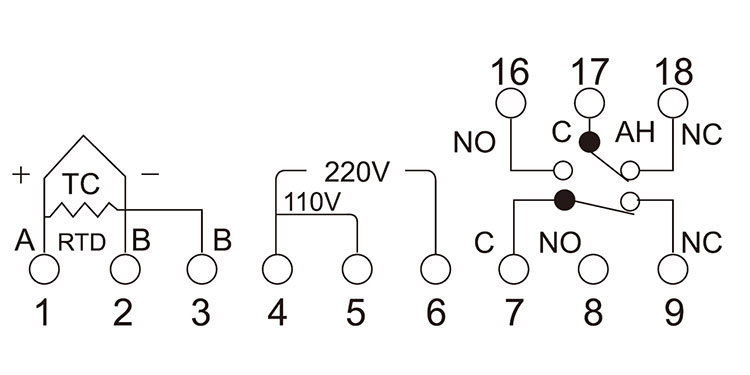

Connection Diagram:
