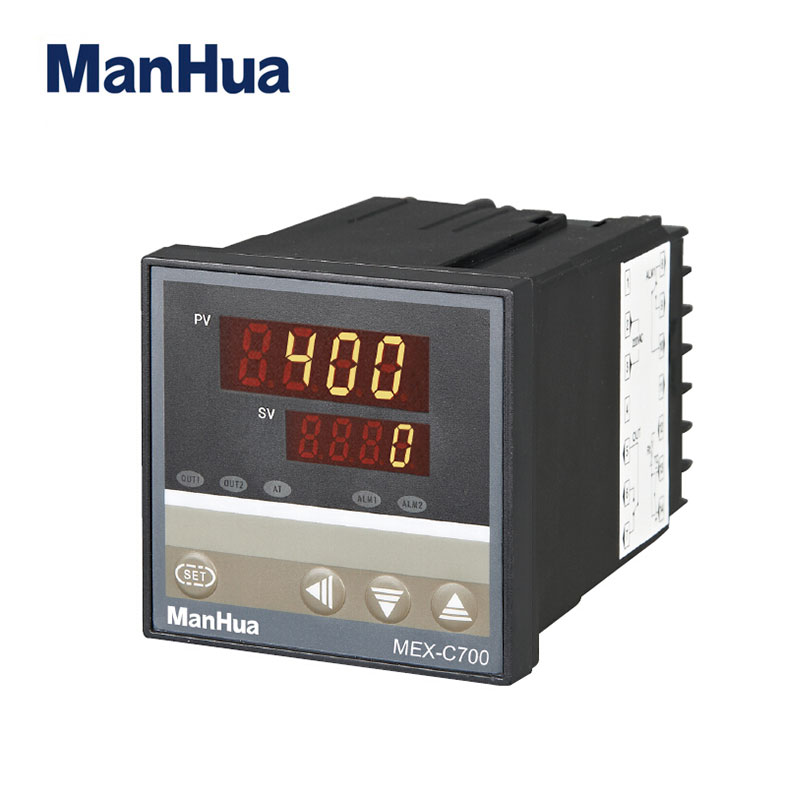

Type: MEX-C700

Power Supply: AC85-AC265V 50Hz

Control Mode: 1.Industrial and PID Parameters of Control System 2.Self tuning control

Accuracy: ±0.5%FS Compensating error of cold side: ±2℃

Environmental Conditions: 0~50℃ , 30~85%RH NONCORROSIVE GAS AREA

Power consumption: <10VA

Alarm mode: Diviation alarm

Signal Input:

THERMOCOUPLE : K , J , R , S , B , E , N

HOTRESISTANCE : PT100 AND CU50

STABDARD SIGNAL : 0-5VDC 0-10MA 4-20MA

ONLY ONE OPTION

Main Output:

RELAY , SSR , SCR , CURRENT

ONLY ONE OPTION

Dimension (mm):

Frame(W×H): 72×72mm

Hole's size(W×H): (92+1)×(44+1)mm

Installation: Embed instrument in the hole on the panel face

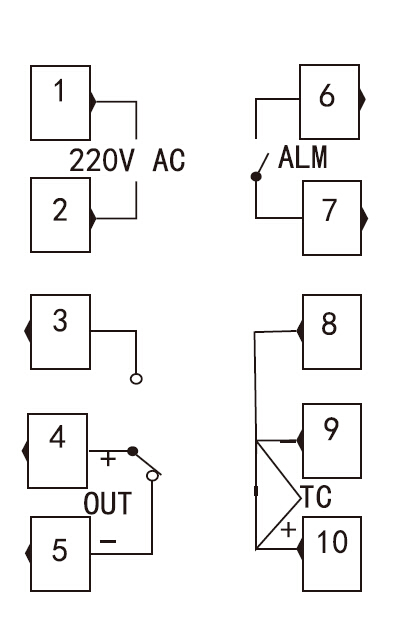

Connection Diagram:
