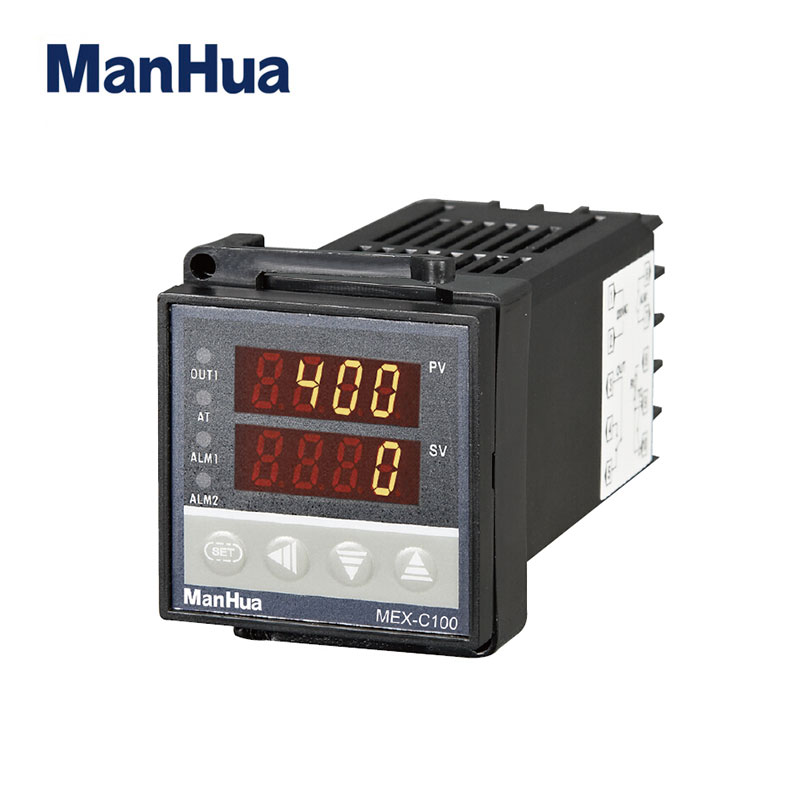

Type: MEX-C100

Power Supply: 230VAC , 110VAC , 85-265VAC 50/60Hz

Control Mode: 1. Industrial and PID Parameters of Control System 2. Self tuning control

Accuracy: ±0.5%FSCompensating error of cold side: ±2℃

Environmental Conditions: 0~50℃ , 30~85%RH NONCORROSIVE GAS AREA

Power consumption: <10VA

Alarm mode: Diviation alarm

Signal Input:

THERMOCOUPLE : K , J , R , S , B , E , N

HOTRESISTANCE : PT100 AND CU50

STABDARD SIGNAL : 0-5VDC 0-10MA 4-20MA

ONLY ONE OPTION

Main Output:

RELAY , SSR , SCR , CURRENT

Dimension:

Frame(W×H): 48×96mm

Hole's size(W×H): (44+1)×(92+1)mm

Installation: Embed instrument in the hole on the panel face

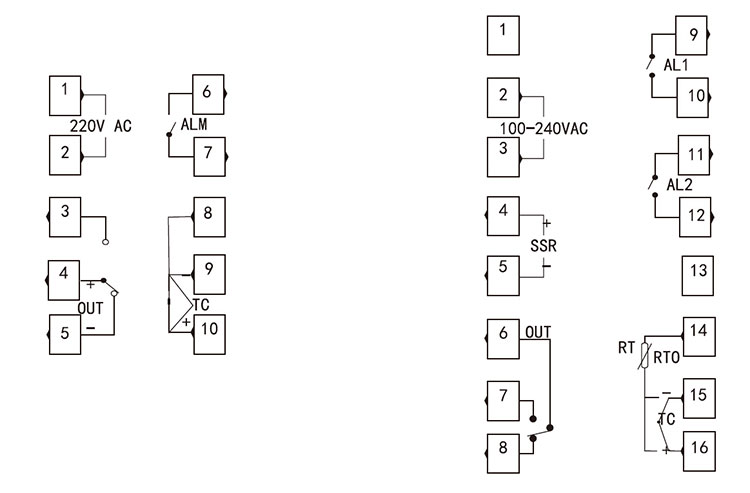

Connection Diagram:
