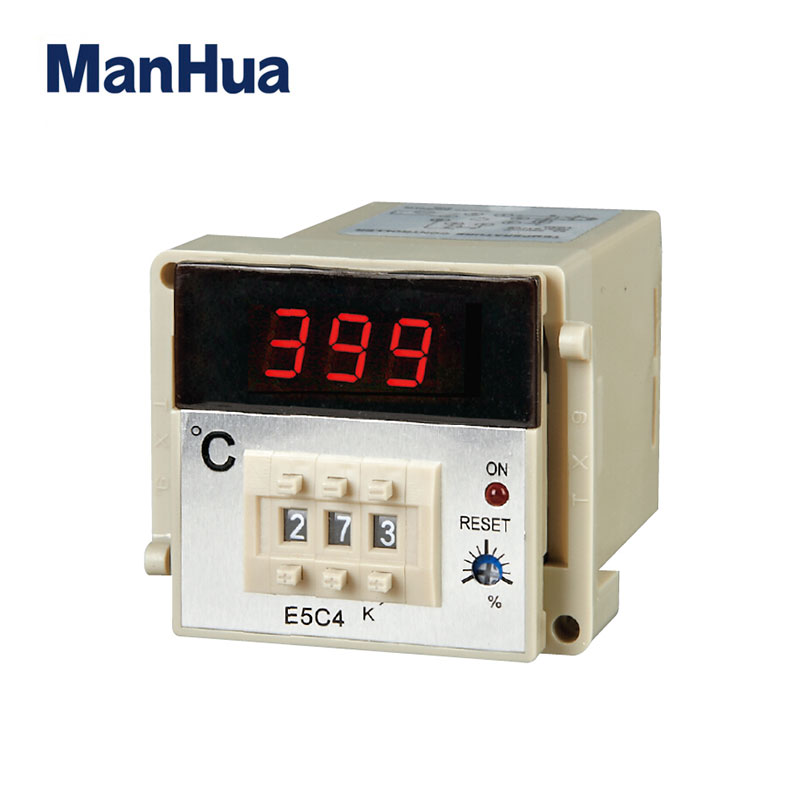

TEMPERATURE CONTROLLER E5C4

Type: E5C4
Operating Voltage: 100/120 VAC , 50/60 Hz or 220/240 VAC , 50/60 Hz
Sensor input types: Thermocouple type: K , J Platinum RTD Request quotation

Type: E5C4

Operating Voltage: 100/120 VAC , 50/60 Hz or 220/240 VAC , 50/60 Hz

Sensor input types: Thermocouple type: K , J Platinum RTD

Control Output: relay(SPDT, 3 A, 250 VAC)

Setting accuracy: ±2% MAXIMUM OF FULL SCALE

Control mode: ON/OFF OR PD

Control period: Approx. 20 seconds, where ratio of ON to OFF is 1:1

Power consumption: Approx. 2 VA

Humidity: 35 to 85% RH

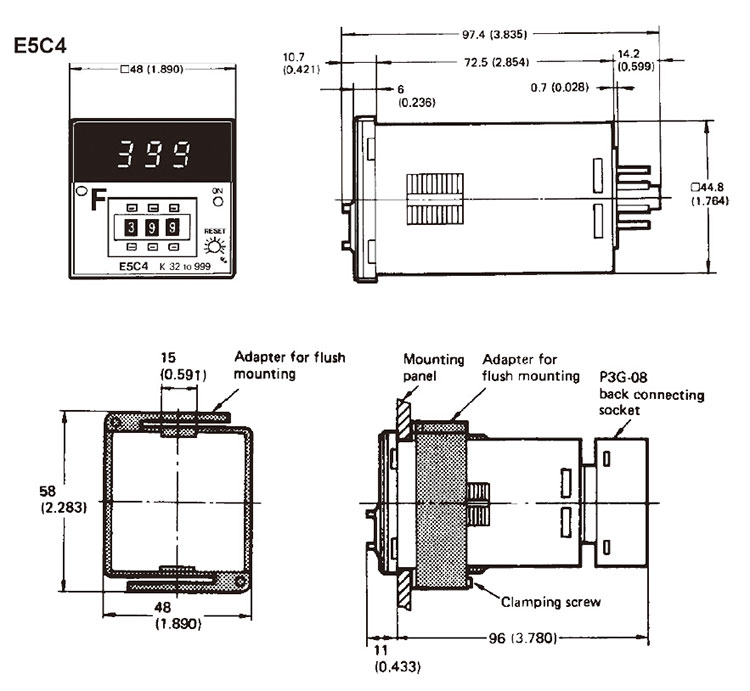

Connection Diagram:
