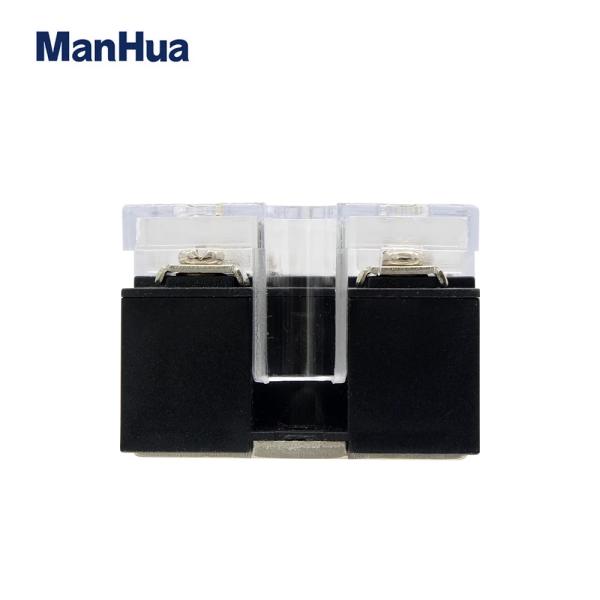

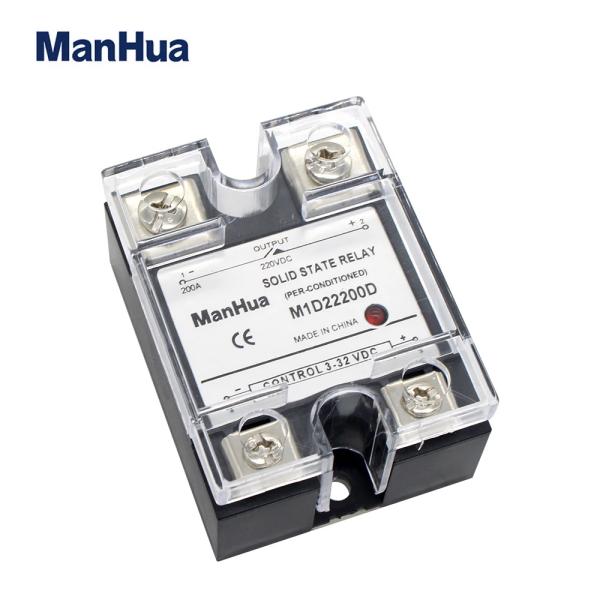

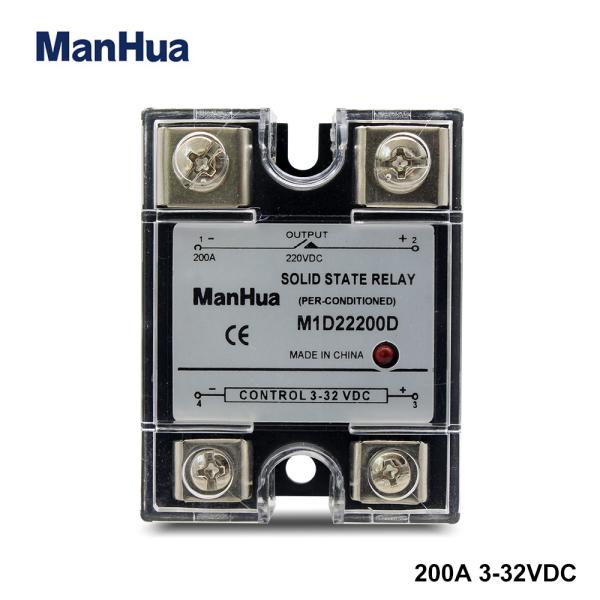

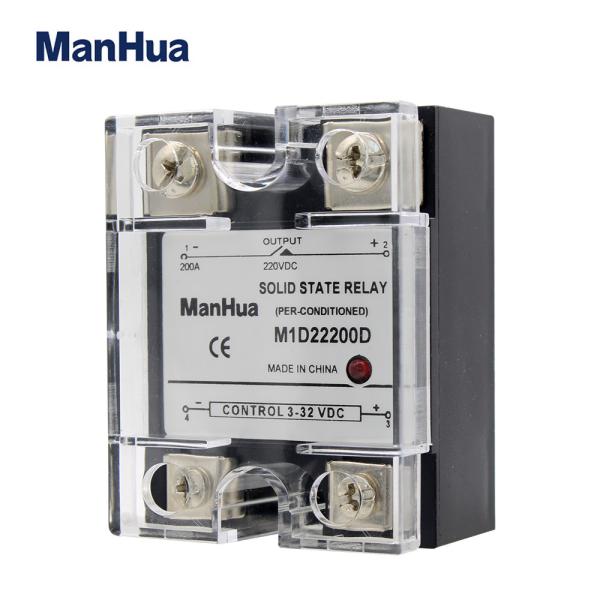

SSR M1D22200D Sealed Single Phase DC 3-32VDC 200A General Purpose Black Solid State Relay

Power Source: DC Voltage: 3-32V
is_customized: Yes Usage: General Purpose
Model Number: M1D22200D Contact Load: Low Power
Protect Feature: Sealed Theory: Solid State Relay
Brand Name: ManHua Origin: Mainland China
Load Voltage: 220VDC Control Voltage: 3-32VDC
Control Current: DC2-15mA On Leakage Current: Less than 4mA
On-off Time: Less than 10mS Insulation Resistance: 500M Ohm/500VDC
Ambient Temperature: -20~+70 Degree Celsius The Work Instruction: LED Request quotation
Video PDF Download Contact us

ManHua Sealed Single Phase SSR M1D22200D DC 3-32VDC 200A General Purpose Black Solid State Relay

Specification:

Load Current:200A

Load Voltage:220VDC

Control Voltage:3-32VDC

Control Current:DC2-15mA

On Voltage:≤1.5V

On leakage Current:≤4mA

On-off time:≤10mS

Dielectric Strength:1500VAC

Insulation Resistance:500MΩ/500VDC

Ambient Temperature:-20~+70°C

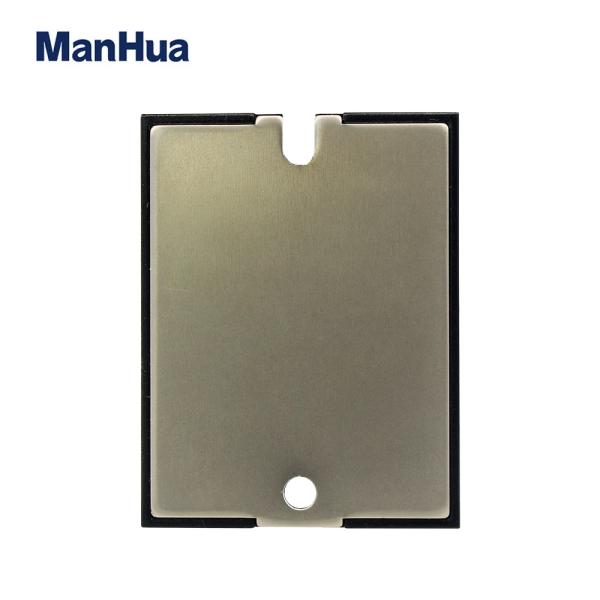

Mounting Methods:Bolt Fixing

Working Station Indicator:LED


Features:

Small volume ,small input power, non-contact,sparkless, noiseless, non-machinery wear, anti-vibration and the long life.


Application:

With a switch no spark, no noise,high switching speed,anti-corrosion,moisture-proof,anti-vibration,long life.high reliability,electromagnetic compatibility and other characteristics.It can be widely used in aerospace,marine,household appliances,machine tools,telecommunications,automobile,mining,etc.automation and control area.
