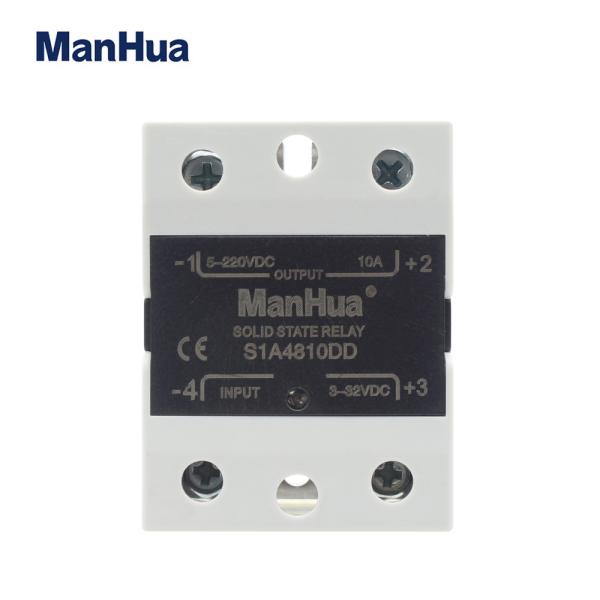

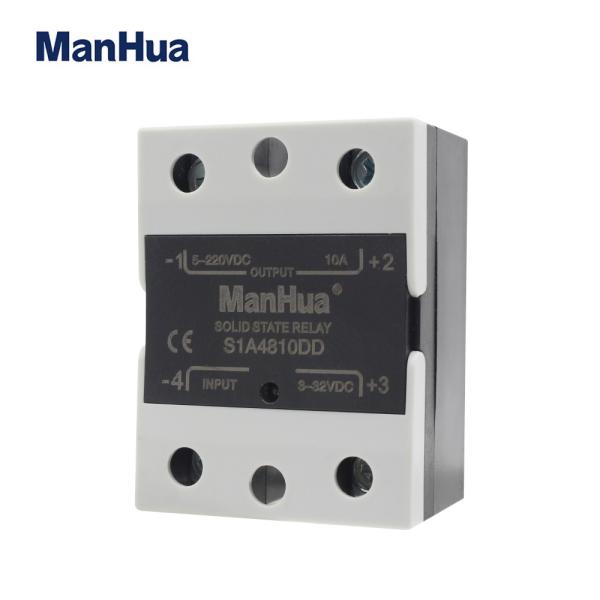

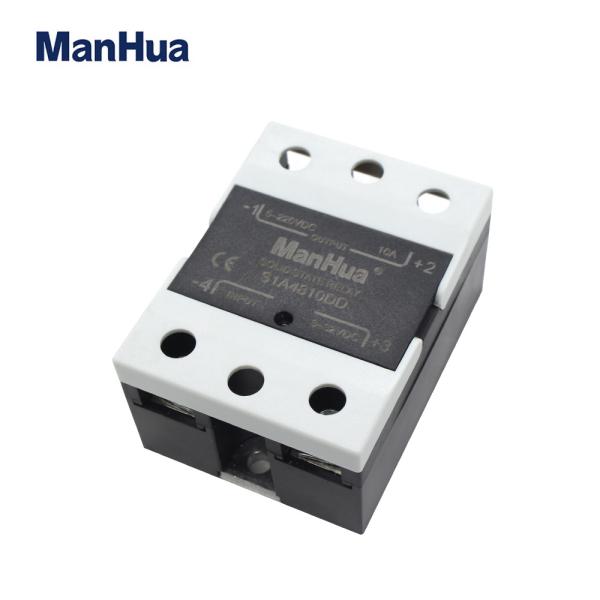

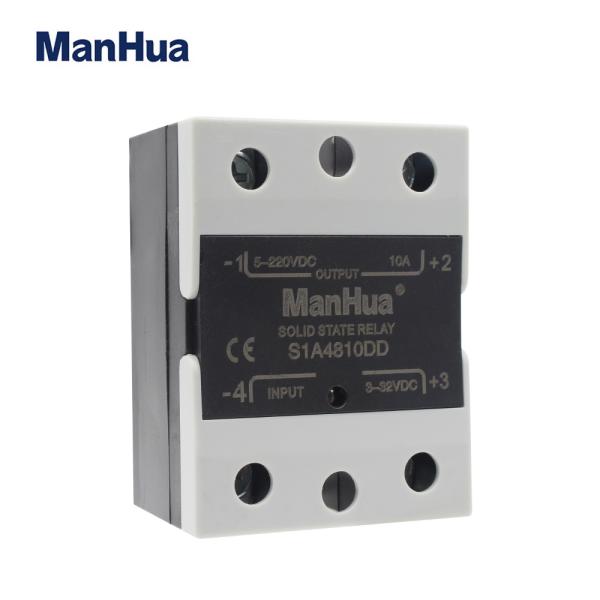

SSR 10A/25A/40A/60A 3-32VDC Input 5-220VDC Output Single Phase DC to DC SSR Solid State Relay Module

Power Source: DC Voltage: 220V
is_customized: Yes Usage: General Purpose

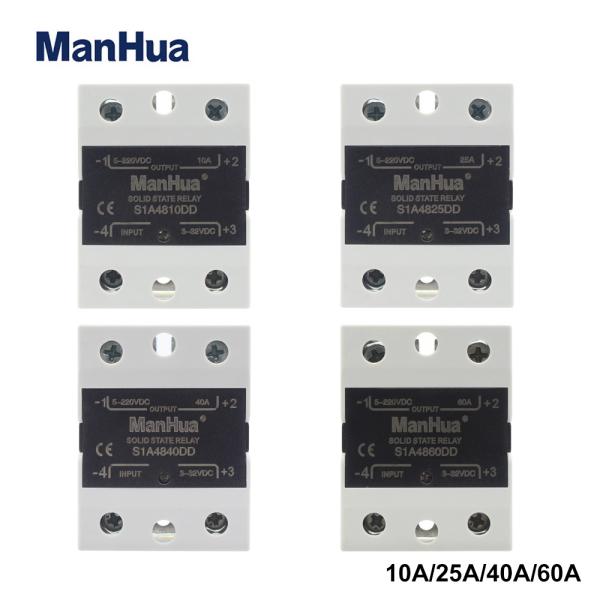

Model Number: S1A4810DD/S1A4825DD/S1A4840DD/S1A4860DD Contact Load: Low Power
Protect Feature: Sealed Theory: Solid State Relay
Brand Name: ManHua Input Voltage: 3-32V DC
Output Control Load: 5-220V DC Control method: DC control DC
Ambient temperature: -25℃~+75℃ The Work Instruction: LED
On-off Time: less than 10mS Off Leakage Current: less than 4mA Request quotation

ManHua SSR 10A/25A/40A/60A 3-32VDC Input 5-220VDC Output Single Phase DC to DC SSR Solid State Relay Module

11

Specification:

Load Current:10A/25A/40A/60A

Load Voltage:5~220VDC

Control Voltage:3~32VDC

On Voltage:≤ 1.5VAC

Off Leakage Current:≤4MA

On-off Time:≤ 10MS

Dielectric Strength:2500VAC

Insulation Resistance:100M Ω /500VDC

Ambient Temperature:-25~+75°C

Work instruction: LED



Features:

Small volume ,small input power, non-contact,sparkless, noiseless, non-machinery wear, anti-vibration and the long life.



Application:

With a switch no spark, no noise,high switching speed,anti-corrosion,moisture-proof,anti-vibration,long life.high reliability,electromagnetic compatibility and other characteristics.It can be widely used in aerospace,marine,household appliances,machine tools,telecommunications,automobile,mining,etc.automation and control area.
