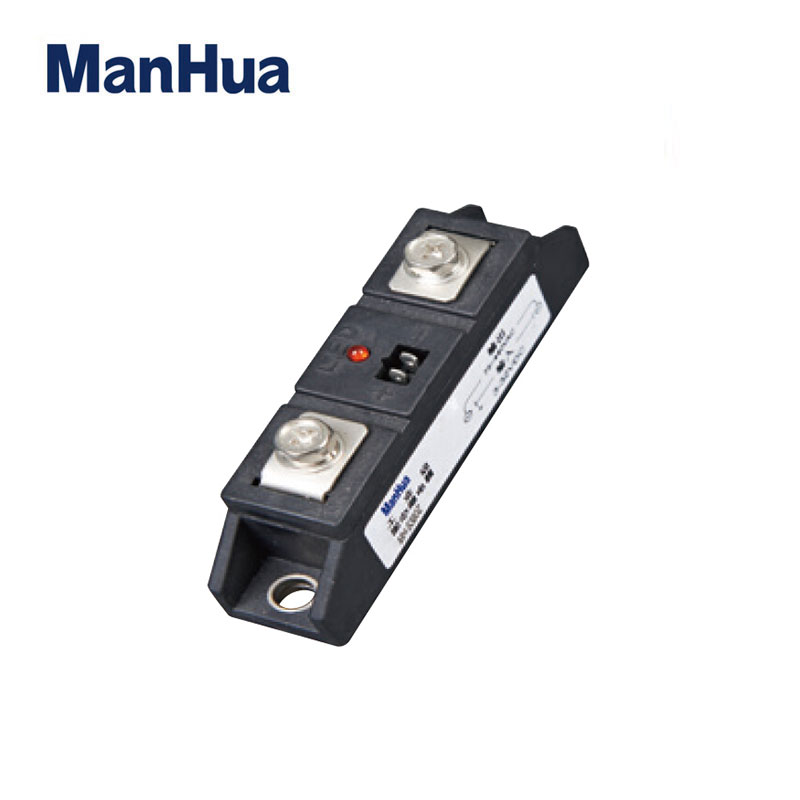

Type: MH-HS380Z

Load Voltage: Basic Type 440VAC

Load Current:40A、60A、80A

Control Voltage:90-250VAC / 3-32VDC

Control Current:AC ≤ 12mA DC3-25mA

On Voltage:≤ 1.5V

Off Leakage Current:≤ 4mA

On-off Time: ≤10ms

Dielectric Strength:2500VAC

Insulation Resistance: 1000MΩ/500VDC

Ambient Temperature:-30℃ ~+75℃

Mounting Methods: PCB

The Work Instructions: LED

Weight: 120g

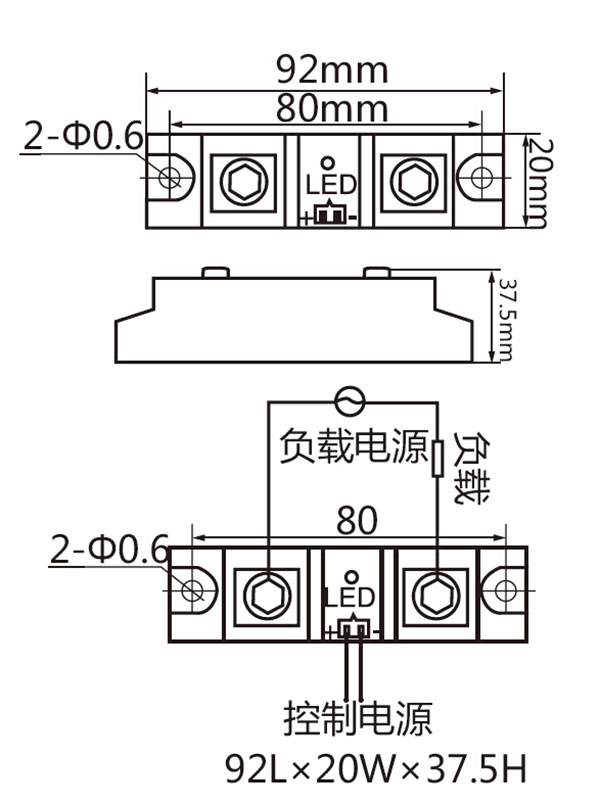

Wiring Drawing(mm):

Instruction:

1、load current 10A,should install radiator,upwards 40A should add fan for force cooling or water cooling.

2、when using lnductive load, please add a varistor at the output side, the value is 1.6-1.9 mutiple of load voltage.
