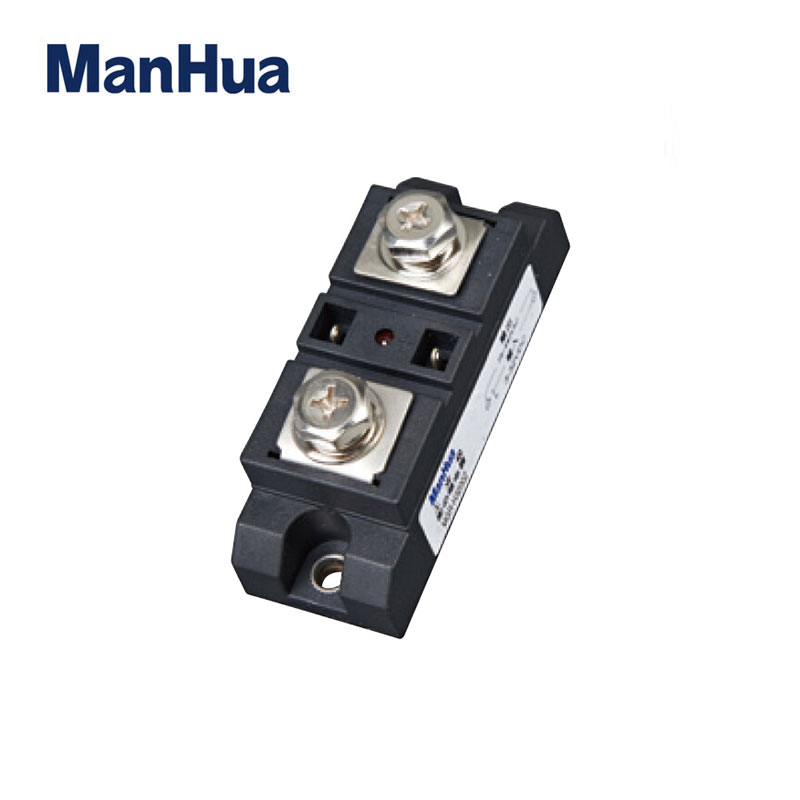

Type: MH-H3200Z

Load Voltage: Enhanced Type 1200VAC

Load Current: 150A、200A、250A、290A、300A、400A

Control Voltage:90-250VAC / 3-32VDC

Control Current:AC ≤ 12mA DC3-25mA

On Voltage:≤ 1.5V

Off Leakage Current:≤ 4mA

On-off Time: ≤10ms

Dielectric Strength:2500VAC

Insulation Resistance: 1000MΩ/500VDC

Ambient Temperature:-30℃ ~+75℃

Mounting Methods: PCB

The Work Instructions: LED

Weight: 240g

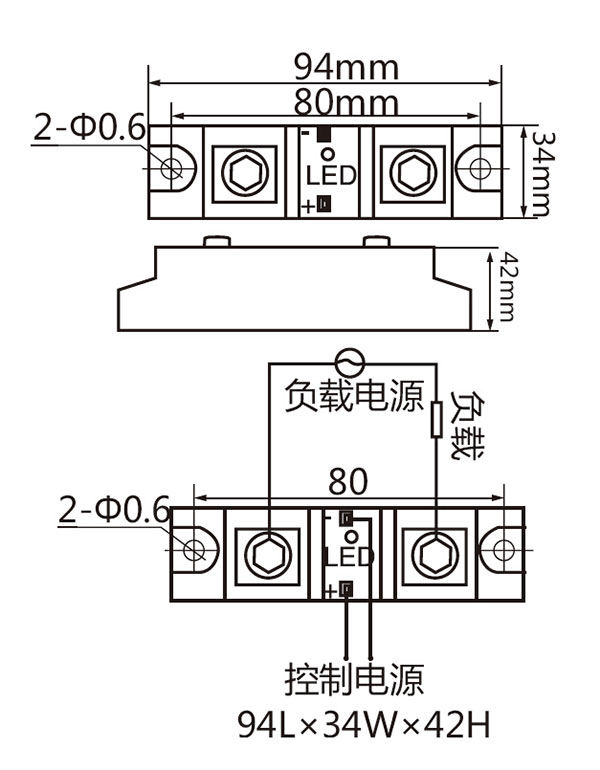

Wiring Drawing(mm):

Instruction:

1、load current 10A,should install radiator,upwards 40A should add fan for force cooling or water cooling.

2、when using lnductive load, please add a varistor at the output side, the value is 1.6-1.9 mutiple of load voltage.
