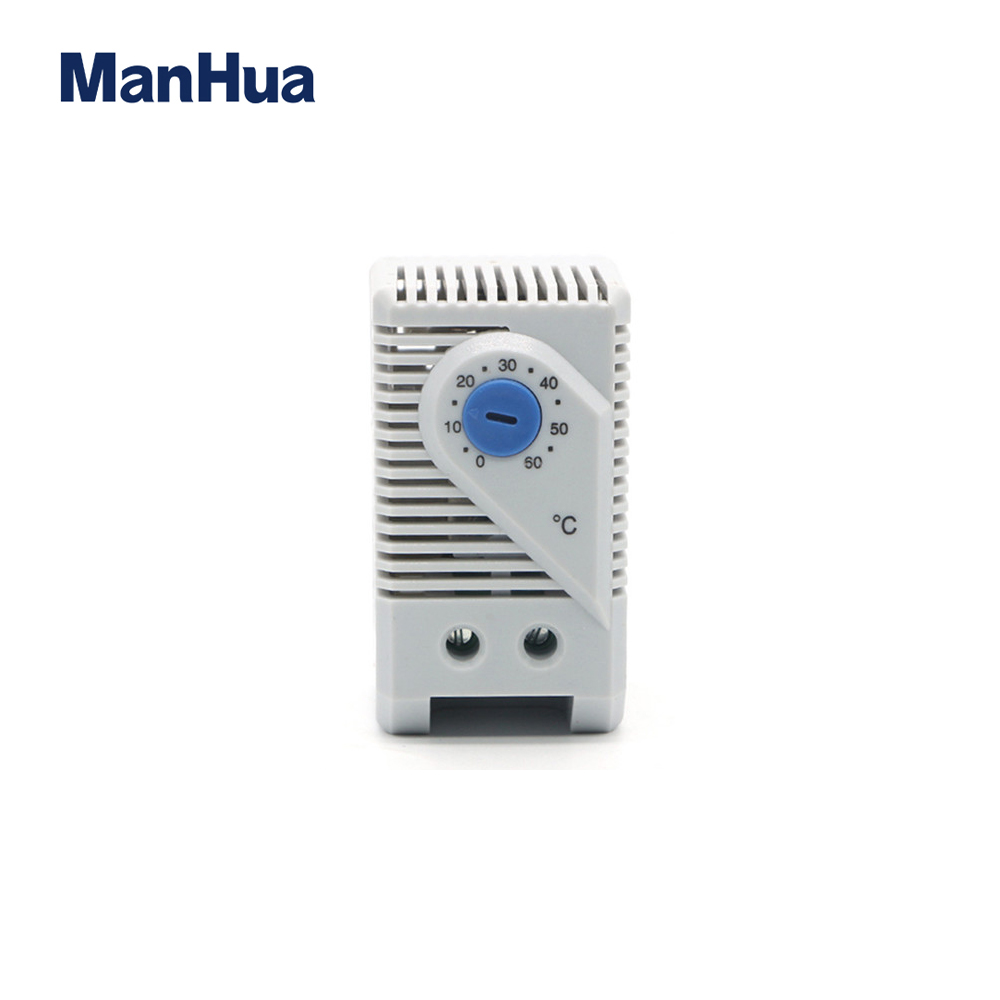

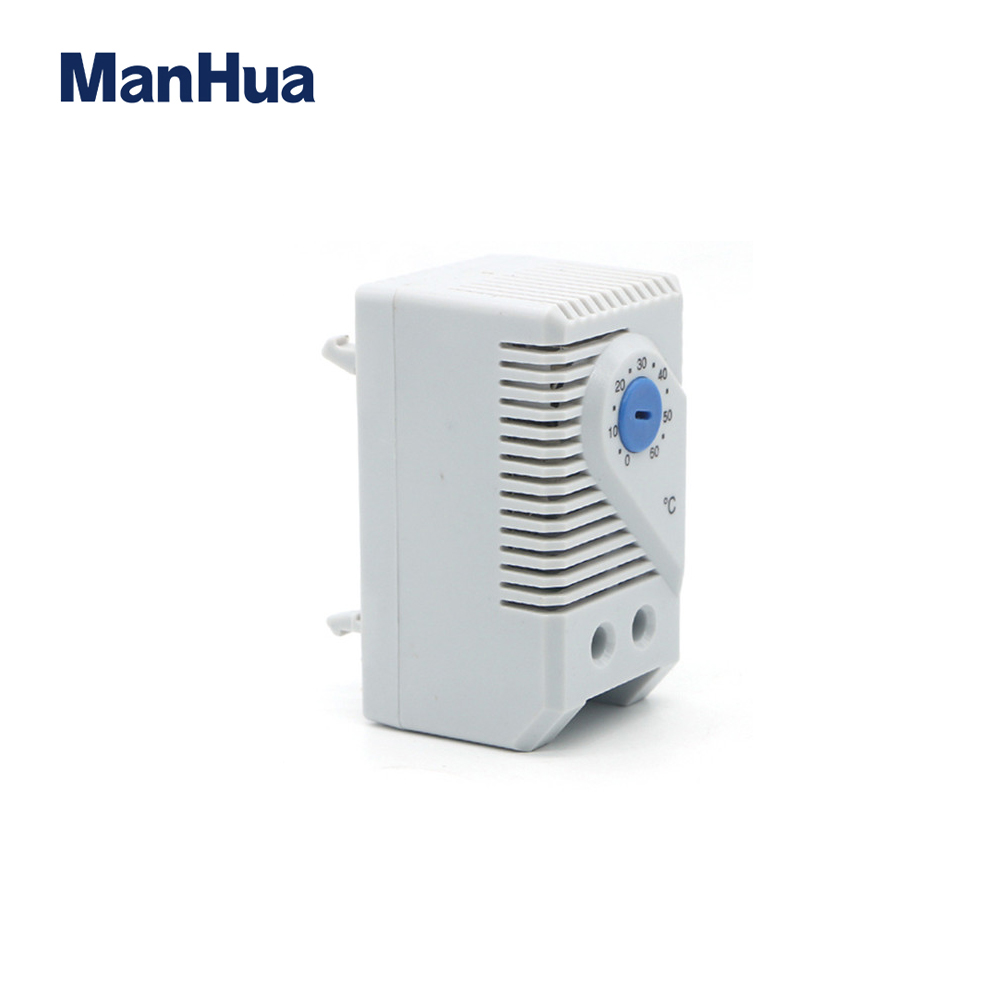

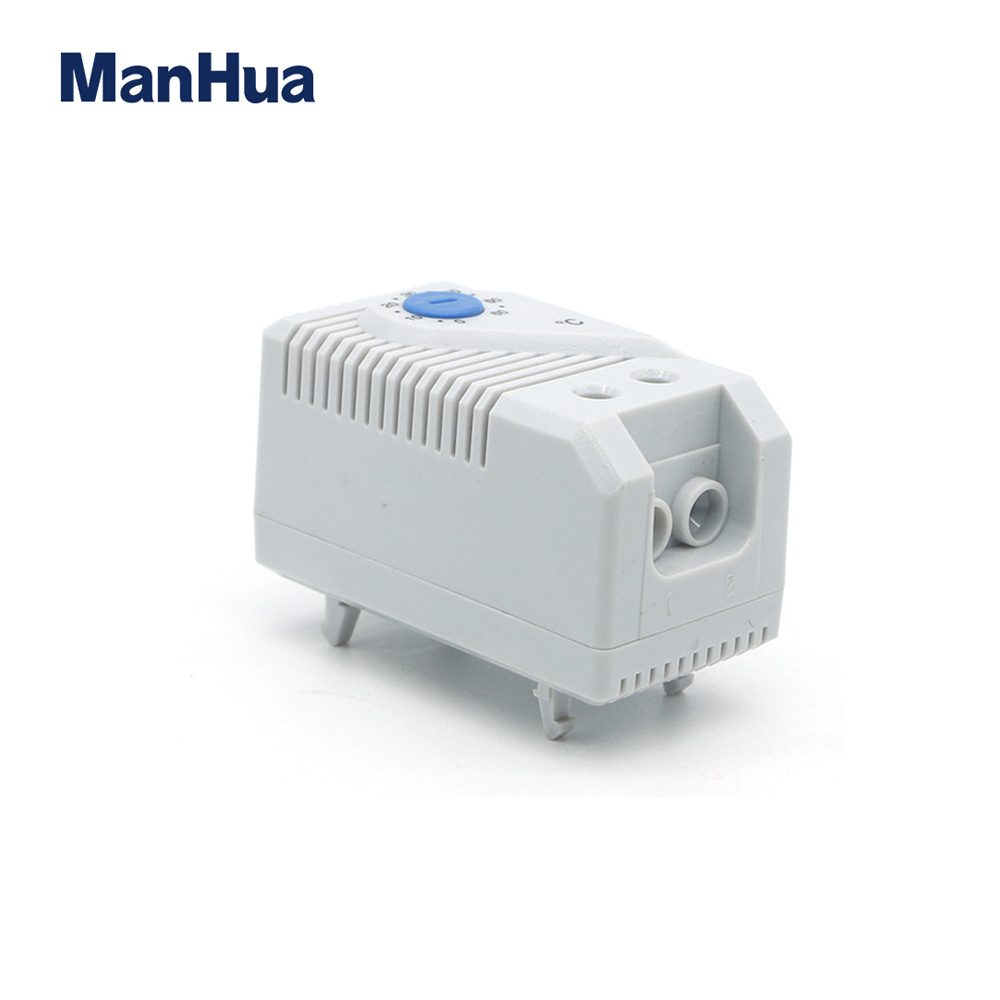

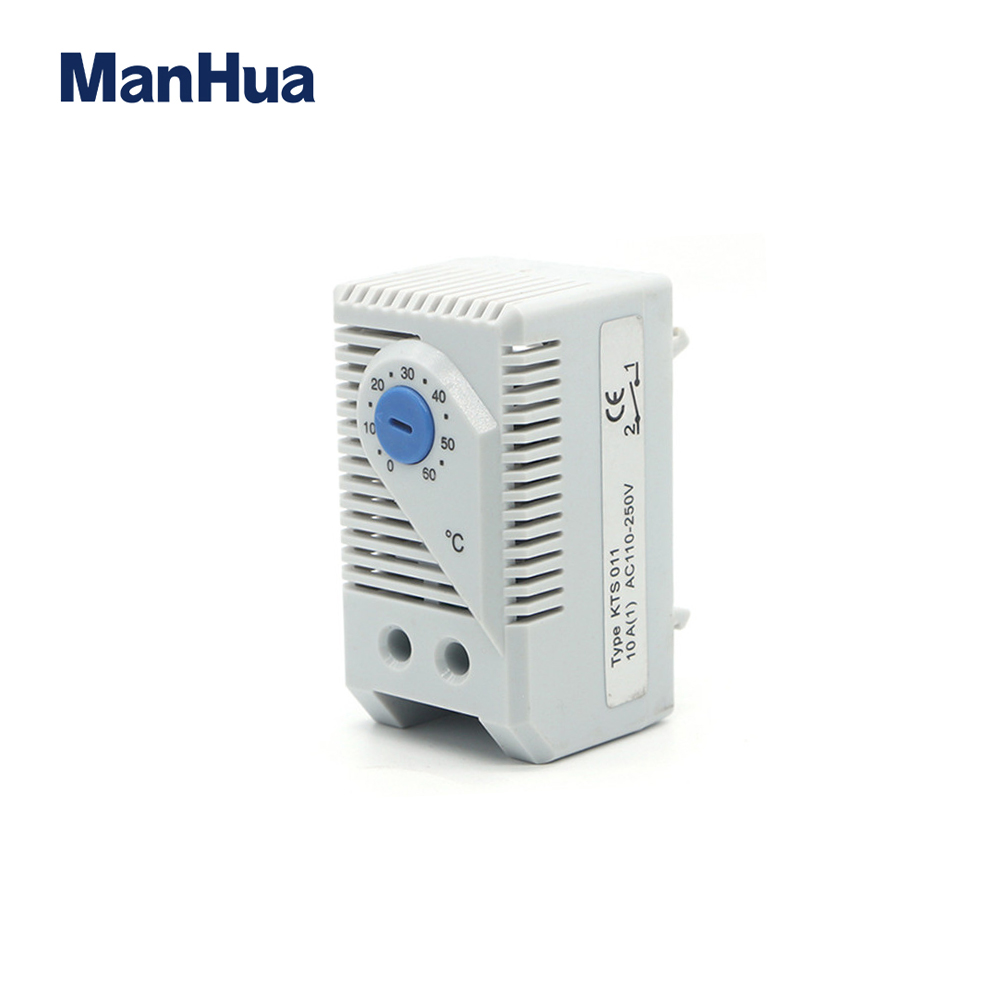

SMALL COMPACT THERMOSTAT KTS 011

Type: KTS 011
Sensor Element: Thermostatic bi-metal
Maximum Tolerance: ±7.2˚F(4K) Request quotation

Type: KTS 011

Sensor Element: Thermostatic bi-metal

Maximum Tolerance: ±7.2˚F(4K)

Switching Difference(Hysteresis): 12.6˚F±5.4˚F(7˚C±3K)

Service Life: 100,000 cycles

Swiching Capacity(Max.load): 15A resistive/2A inductive @ 120 VAC/10A resistive/2A inductive @ 250 VAC/DC 30W

EM/EMC Compliance: EN55014-1-2 , EN16000-3-2 , EN61000-3-3

Connections: 2-pole terminal for AWG 14 max.(2.5mm2)

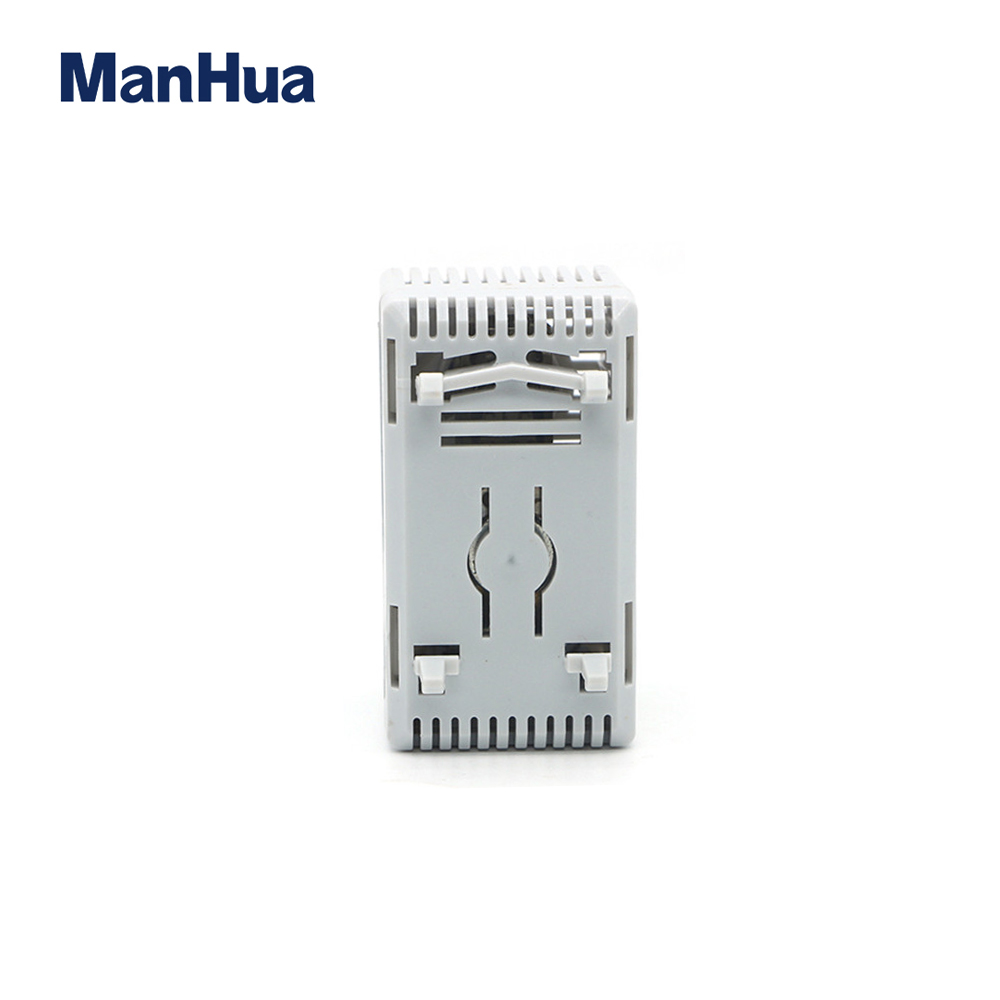

Mounting: Clip for 35mm DIN rail(EN50022)

Dimensions(H X W X D): 2.4 x 1.3 x 1.7”(60 x 33 x 43mm)

Protection Type: IP20

Operatng Temperature: -4 to 176˚F(-20 to 80˚C)

Wiring Diagram:
