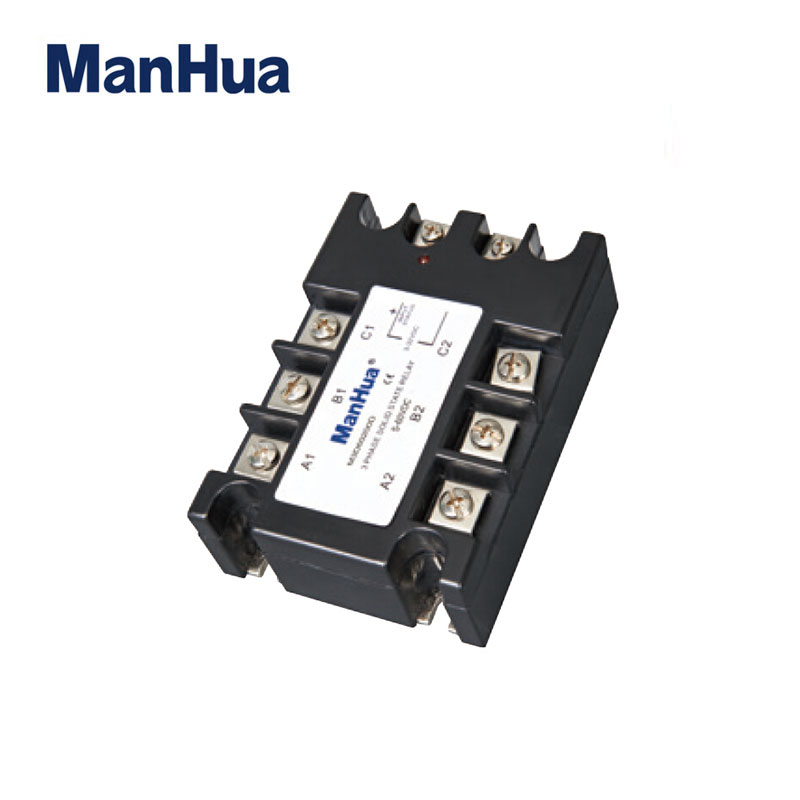

Type: M3D 60 D

Load Current: 200A、300A、400A、600A

Load Voltage: 5-60VDC

Control Voltage: 3-32VDC

Control Current: DC5-50mA

On Voltage: ≤ 1.5V

Off Leakage Current: ≤2mA

On-off Time: ≤10ms

Dielectric Strength: 2000VAC

Insulation Resistance:500MΩ/500VDC

Ambient Temperature: -30℃~+75℃

Mounting Methods: Screw mount

The Work Instructions: LED

Weight: 132g

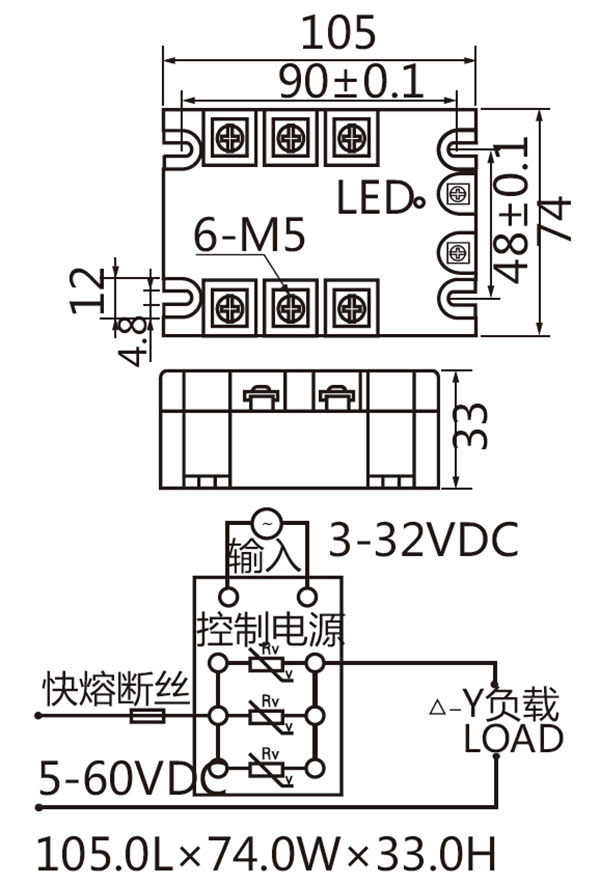

Wiring Drawing(mm):

Instruction:

1、load current 10A,should install radiator,upwards 40A should add fan for force cooling or water cooling.

Note: □ Means load current
