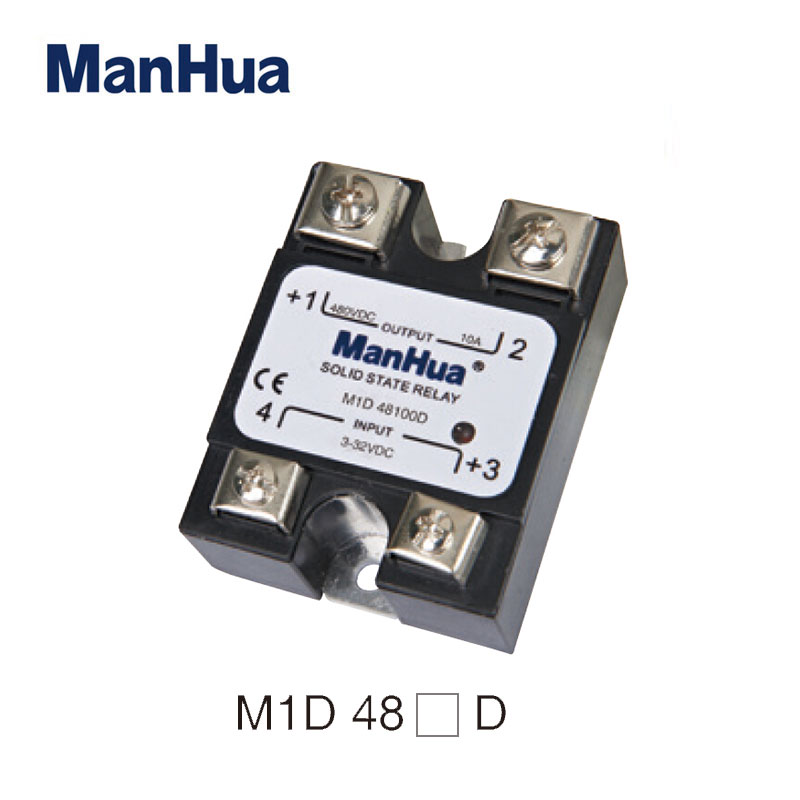

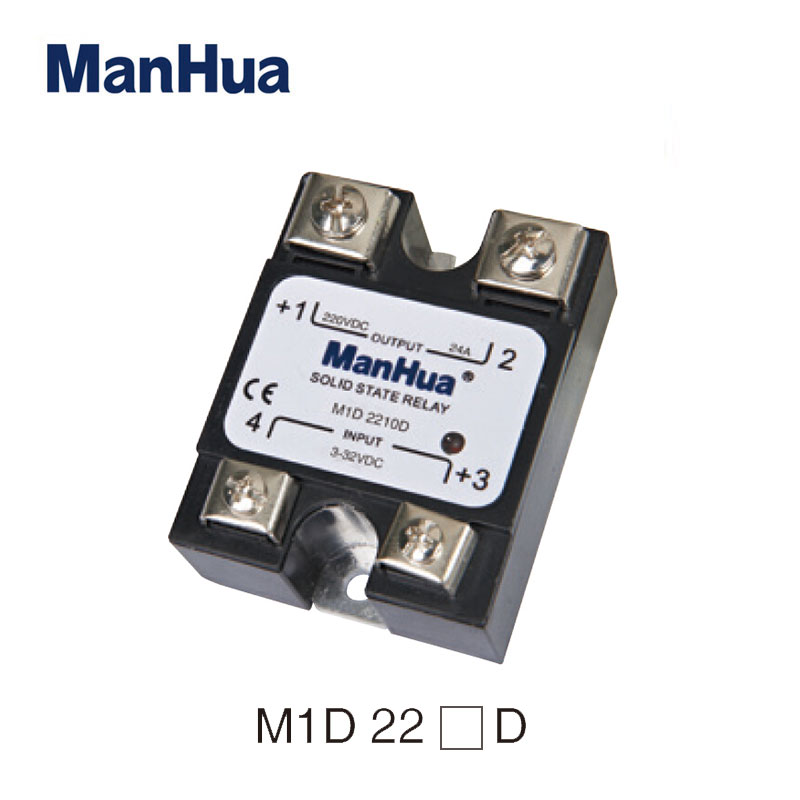

Type: M1D 48 D/M1D 22 D

Load Current: 10A、15A、20A、25A、30A、40A、50A、60A、80A、100A

Load Voltage: 480VAC(M1D 48 D) / 24-220VDC(M1D 22 D)

Control Voltage: 3-32VDC

Control Current:DC5-25mA

On Voltage: ≤ 2.3V

Off Leakage Current: ≤2mA

On-off Time: ≤10ms

Dielectric Strength: 2000VAC

Insulation Resistance:500MΩ/500VDC

Ambient Temperature: -30℃~+75℃

Mounting Methods: Screw mount

The Work Instructions: LED

Weight: 90g（10A，25A）, 135g（40A above）

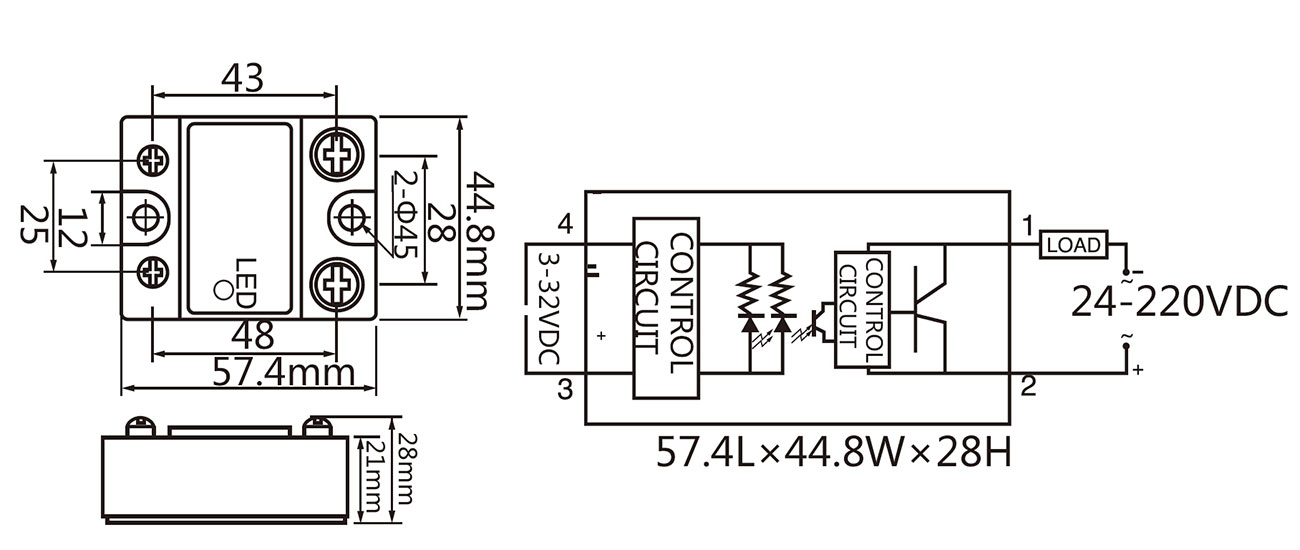

Wiring Drawing(mm):

Instruction:

1、load current 10A,should install radiator,upwards 40A should add fan for force cooling or water cooling.

Note: □ Means load current
