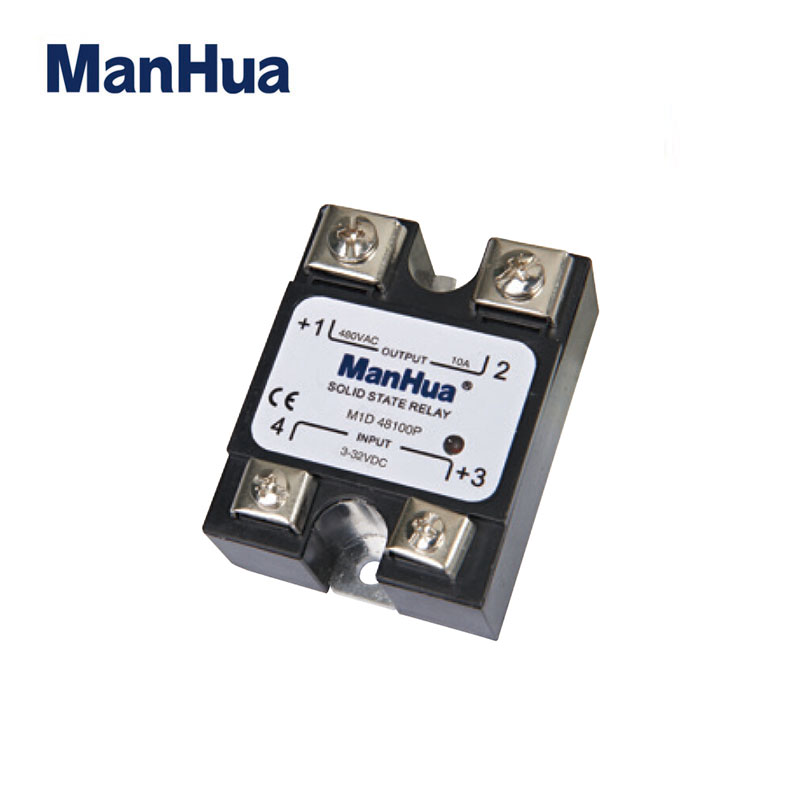

Type: Random Type M1D 48 P

Load Current: 10A, 40A, 60A, 100A, 120A (120A, 200A, 300A) Industrial appearance

Load Voltage: 480VAC

Control Voltage: 4-8VDC

Control Current: AC≤12mA

On Voltage: ≤1.5V

Off Leakage Current: ≤2mA

On-off Time: ≤10ms

Dielectric Strength: 2500VAC

Insulation Resistance: 1000MΩ/500VDC

Ambient Temperature: -30℃~+75℃

Mounting Methods: Screw mount

The Work Instructions: LED

Weight: 135g

Wiring Drawing(mm):

Instruction:

1、load current 10A,should install radiator,upwards 40A should add fan for force cooling or water cooling.

2、when using lnductive load, please add a varistor at the output side, the value is 1.6-1.9 mutiple of load voltage.

Note: □ Means load current
