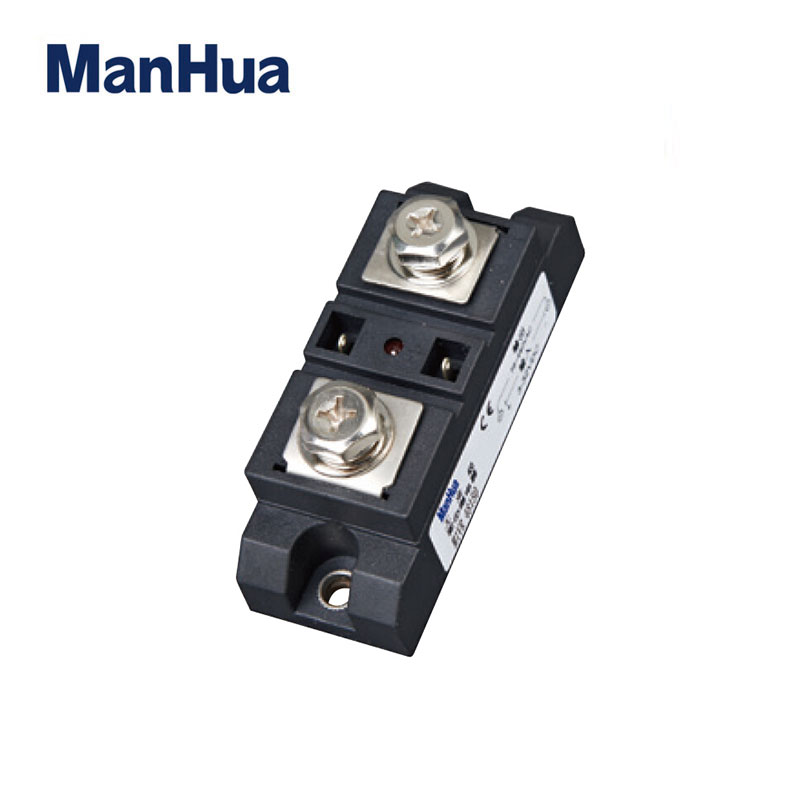

Single Phase AC Solid State Voltage Regulator Resistance Regulator M1VR 48

Type: Resistance Regulator M1VR 48
Load Current: 150A、200A、300A、400A
Load Voltage: 0~480VAC Request quotation

Type: Resistance Regulator M1VR 48

Load Current: 150A、200A、300A、400A

Load Voltage: 0~480VAC

Control Voltage: (470KΩ-560KΩ/2W)

Control Current: \

On Voltage: ≤ 1.5V

Off Leakage Current: ≤2mA

On-off Time: \

Dielectric Strength: 2500VAC

Insulation Resistance: 1000MΩ/500VDC

Ambient Temperature: -30℃~+75℃

Mounting Methods: Screw mount

The Work Instructions: LED

Weight: 90g(10A,25A), 135g(40A above)

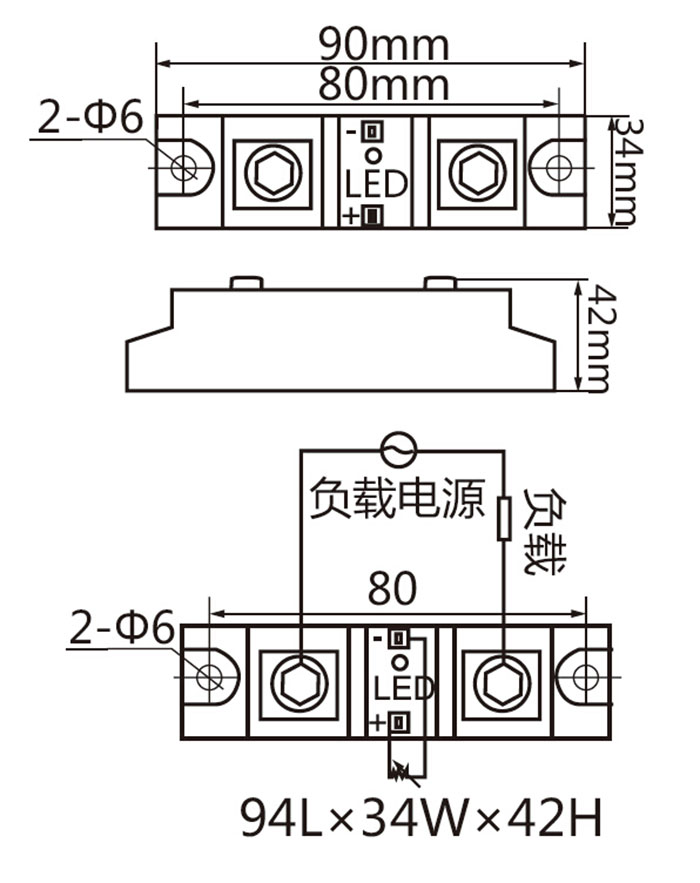

Wiring Drawing(mm):




Instruction:

1、load current 10A,should install radiator,upwards 40A should add fan for force cooling or water cooling.

Note: □ Means load current
