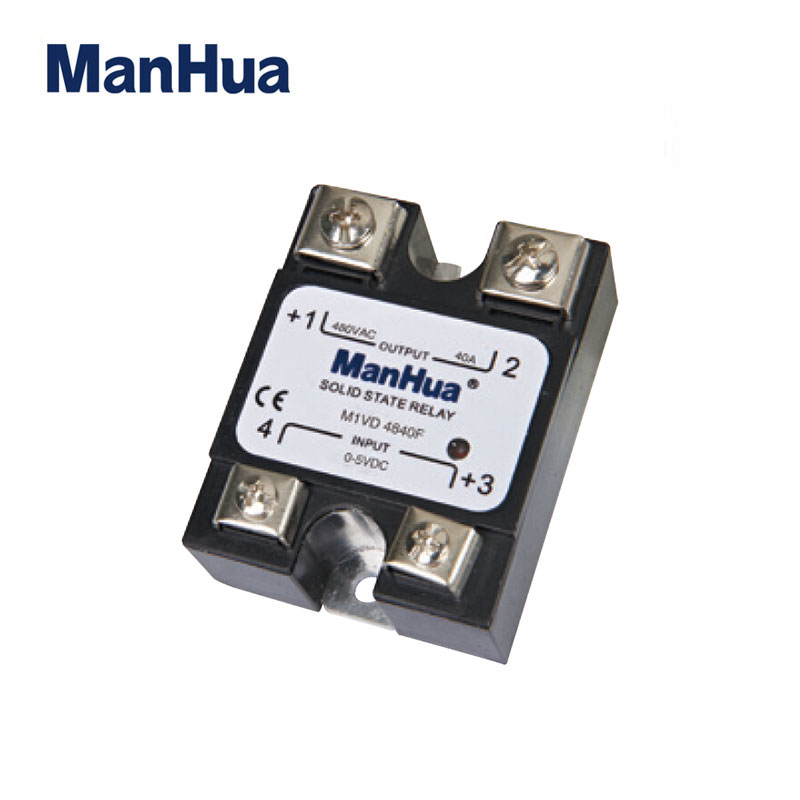

Single Phase AC Solid State Voltage Regulator M1VD 48 F

Type: Voltage Regulator M1VD 48 F
Load Current: 10A、15A、20A、25A、30A、 40A、50A、60A、75A、80A、90A、100A、120A
Load Voltage: 0~480VAC Request quotation

Type: Voltage Regulator M1VD 48 F

Load Current: 10A、15A、20A、25A、30A、 40A、50A、60A、75A、80A、90A、100A、120A

Load Voltage: 0~480VAC

Control Voltage: 0-5VDC,0-10VDC

Control Current: DC4-20mA

On Voltage: ≤ 1.5V

Off Leakage Current: ≤2mA

On-off Time: ≤10ms

Dielectric Strength: 2500VAC

Insulation Resistance: 500MΩ/500VDC

Ambient Temperature: -30℃~+75℃

Mounting Methods: Screw mount

The Work Instructions: LED

Weight: 90g(10A,25A), 135g(40A above)

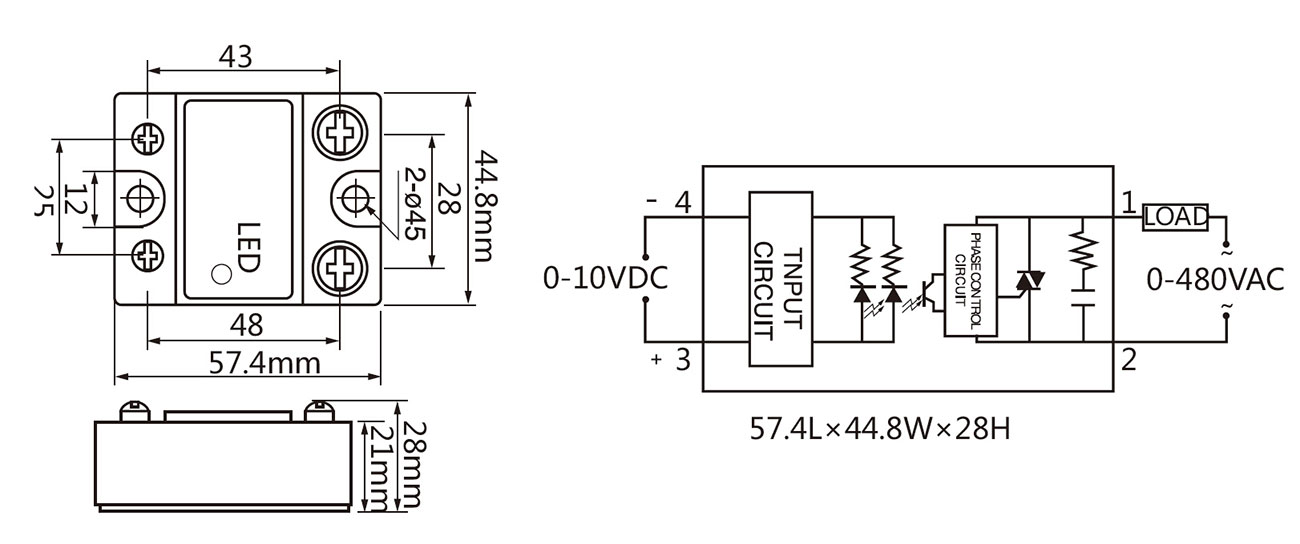

Wiring Drawing(mm):


Instruction:

1、load current 10A,should install radiator,upwards 40A should add fan for force cooling or water cooling.

Note: □ Means load current
