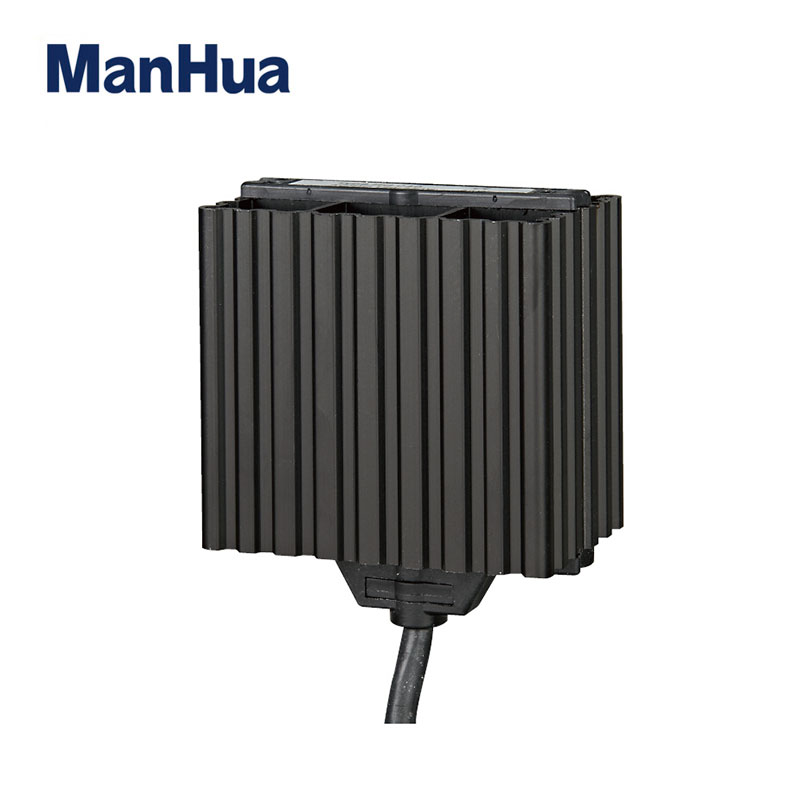

Type: HG-140

Operating Voltage: 120/240V AC/DC(min 110，max 265)

Heating capacity: 15W , 30W , 45W , 60W , 75W , 100W , 150W

Heating element: PTC resister

Heater body: anodised extruded aluminum profile

Connection: 3 clamps for standard wire 0.5-1.5mm²

Connection casing: plastic according to UL94 V-0

Mounting: 35mm din rail

Operating/storage temperature: （-20 to +70℃）

IR Rate: IP54

Wiring Diagram:
