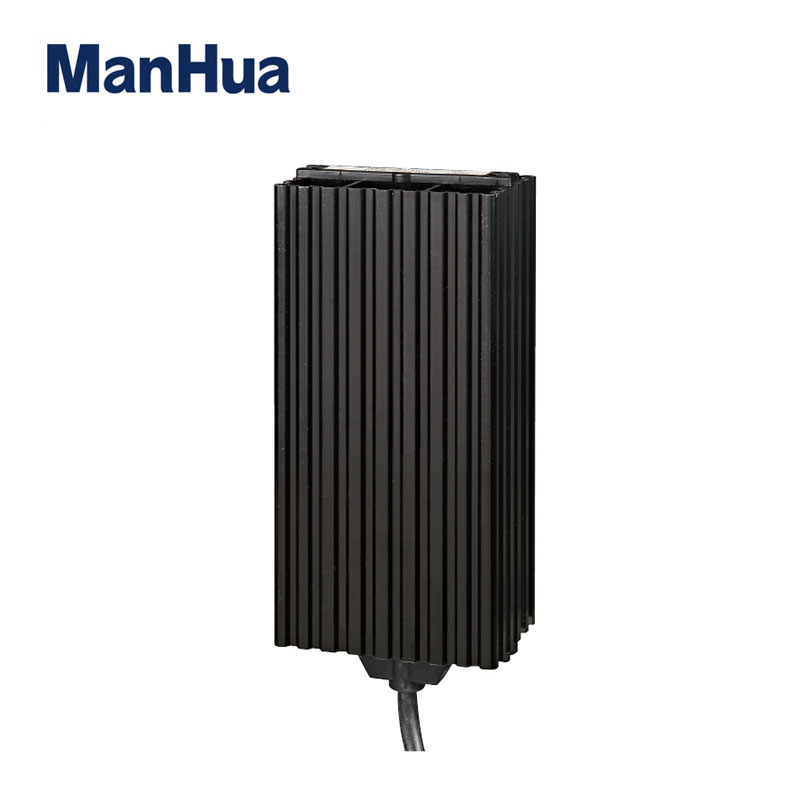

Type: HG-040

Operating Voltage: 24/48V, 24/48 AC/DC

Heating capacity: 15W , 30W , 45W , 60W , 75W , 100W , 150W

Heating element: resistance heater

Heater body: anodised extruded aluminum profile

Connection: 1.5mm² standard wire

Connection casing: plastic according to UL94 V-0

Mounting: 35mm din rail

Operating/storage temperature: （-45 to +70℃）

IR Rate: IP20

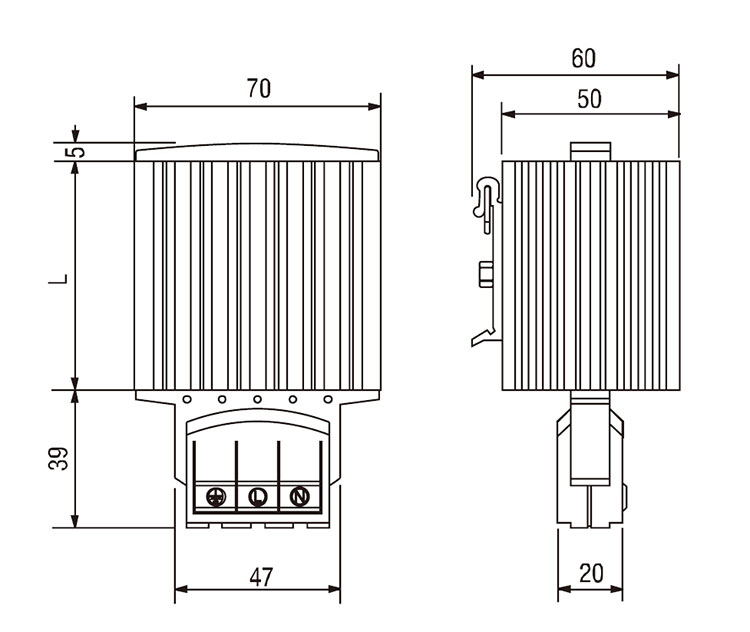

Wiring Diagram:
