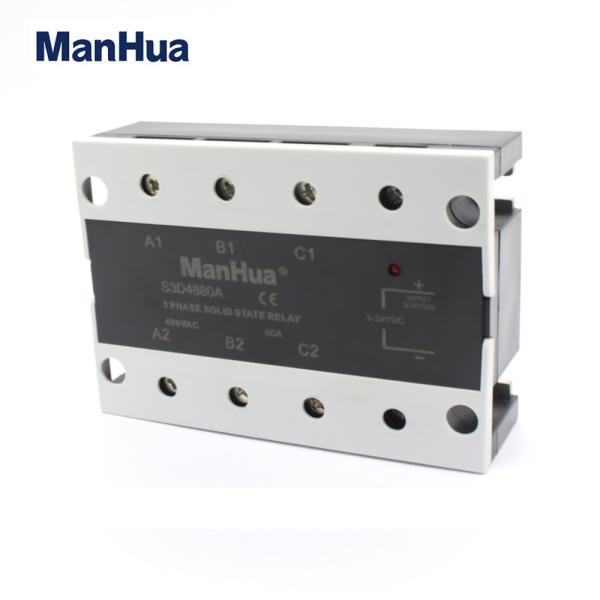

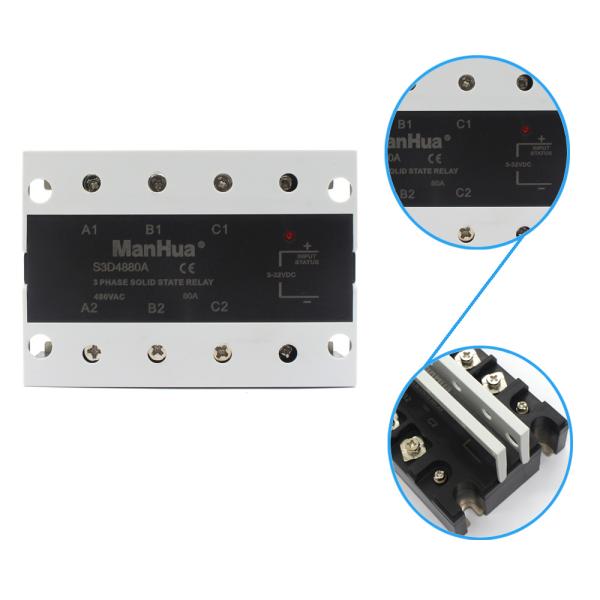

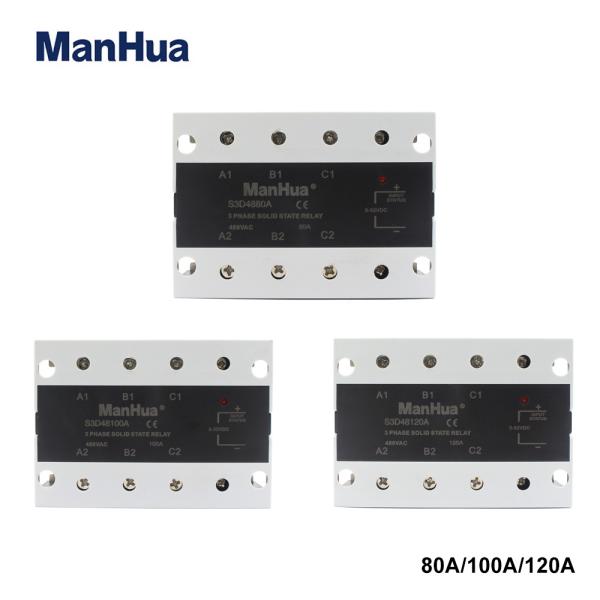

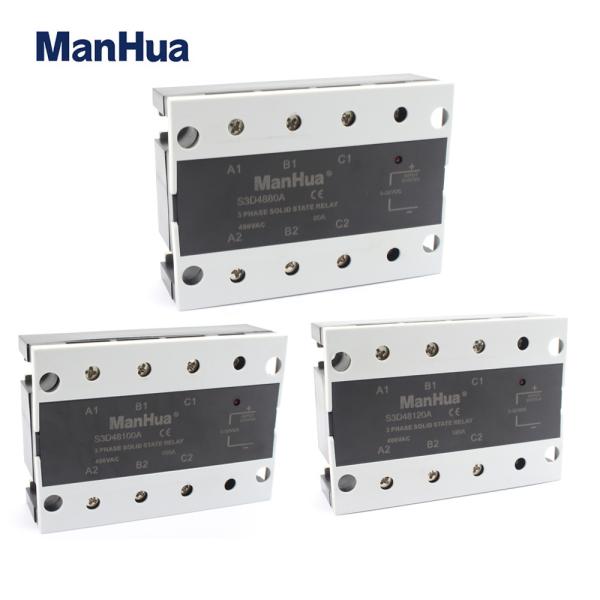

ManHua SSR DC-AC 80A/100A/120A Three Phase Solid State Relay 480VAC 3-32VDC

Specification:

Load Current :80A/100A/120A

Load Voltage:480VAC

Control Voltage:3-32VDC

Control Current DC:10-68mA

On voltage:≤2VAC

Off Leakage Current:≤10mA

On-off Time:≤10ms

Dielectric Strength:2500VAC

Insulation Resistance:1000M/500VDC

Ambient Temperature:-30~+75℃

The work instructions:LED

Features:

1.Three-phase solid state relay is suitable for automatic control circuit with AC frequency 50HZ/60HZ, rated voltage 480V or less, and achieves the purpose of directly driving large current load with a small control signal. Widely used in digital program control devices, motor control devices, temperature control devices, data processing systems and computer terminal interface circuits.

2.This product has some advantages like reliable operation, long service life, no noise, no contact, no spark, no electromagnetic interference, fast switching speed, strong anti-interference ability, small volume, impact resistance, anti-vibration, explosion-proof, moisture-proof, anti-corrosion.

Application:

Industrial automation installment, AC motor control, Intermediate relay,solenoid valve control, Numerical control machinery,external guidnance system,computer periphery connection, Illumination,stage lighting control, Electric stove,heating,warm control, street light,signal light,traffic light,Color photo enlargement,film processing equipment,injection machinery.Automatic fire control and security system,etc.
