Photocell switch MSL12401EL

Type: MSL12401EL
Nominal voltage: 120,220,240VAC;50/60Hz Request quotation

Type

MSL12401EL

Nominal voltage

120,220,240VAC;50/60Hz

Maximum load

1000 watt tungsten,1800 VA .HID

Guaranteed operation

5000 operations minimum(13.7 years)

Turn-on/Turn-off

<1:5(Thermal)

<1:4(Electronic)

Delay time(Instant on)

30 to 120 seconds

Operating temperature

-40℃to +70℃(-40F to +158F)

Surge protection(Mov)

90J,180J,320J(optional)

Average power consumption

<1watt

Photocell

Cadmium sulphide(Cds),or phototransistor(Hermetically sealed Cds)

Materials

Cover:Polypropylene UV stabilized,High impact,Flammability ersistance

Warranty

Full warrant against defects in material and workmanship for 1 year from date of manufacture

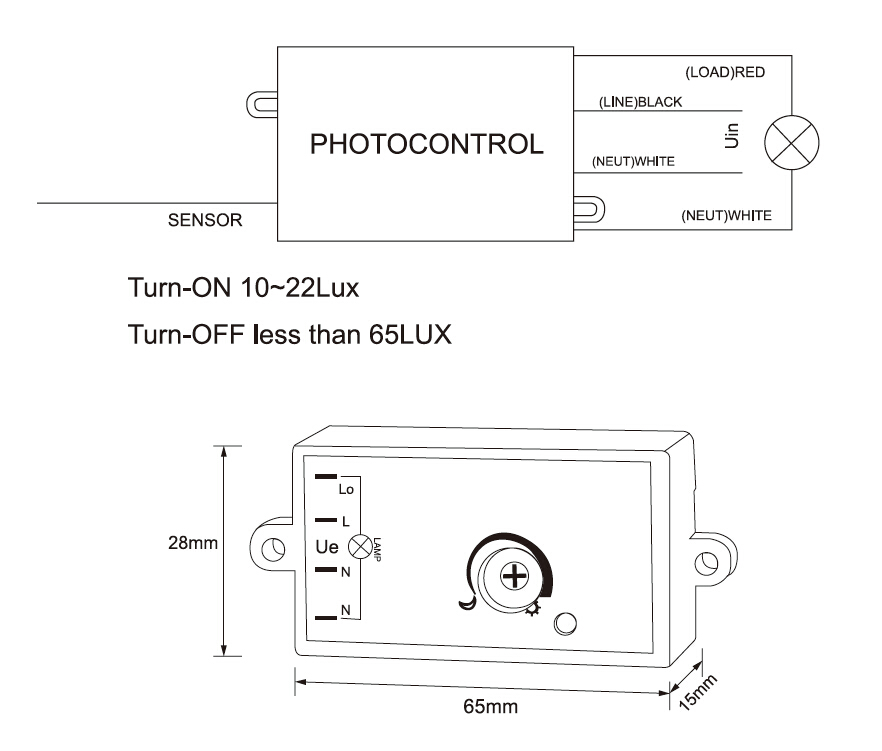

Wiring Drawing(mm):
