Photocell Switch MS-BF

Type: MS-BF
Color choices:Gray,Blue,Red Request quotation

Type: MS-BF

Application:work with HID,incandescent

Nominal voltage:120,240,50/60Hz;10A/16A

Maximum load:1000 watt tungsten,1800 VA

Guaranteed operation:5000 operations minimum(13.7 years)

Turn-on darkness level:<10-22 LUX

Turn-off lightness level:>65 LUX

Turn-on/Turn-off:<1:4

Delay time(Instant on):<30 seconds

Power consumption:<0.8 watts

Surge protection(Mov):660J

Sensor type:silicob photodiode

MEMA IP LEVEL:  IP54

Housing:UV polycarbonate

Color choices:Gray,Blue,Red

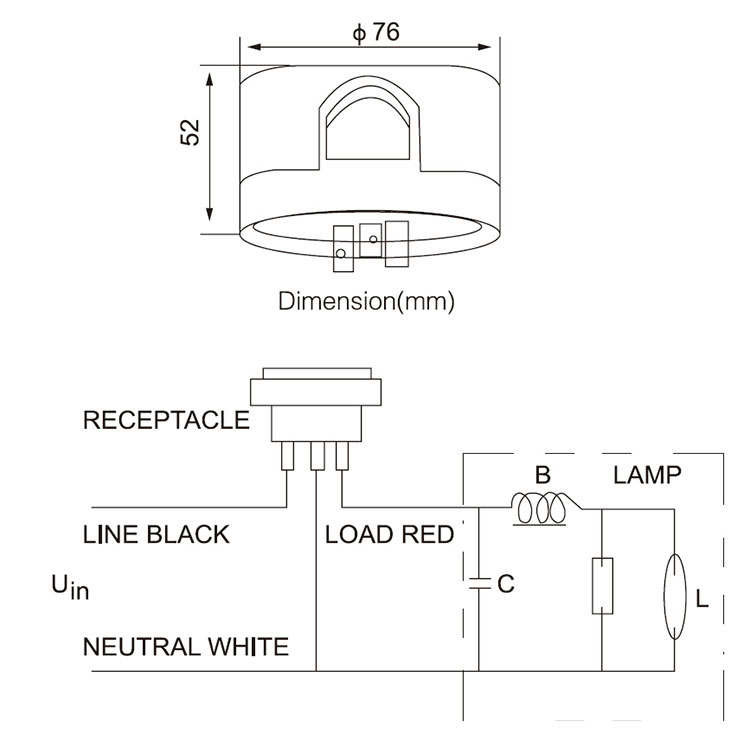

Wiring Drawing(mm):

Gray



Blue
