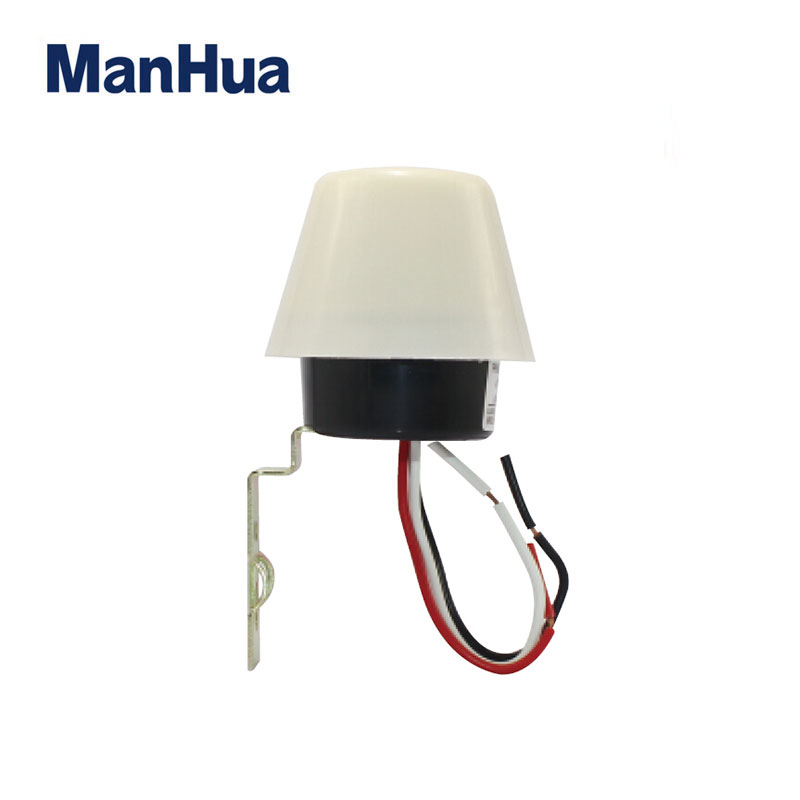

Photocell Switch MS-B

Type: MS-B
Nominal voltages: 120,220,240,277,120-277,480VAC,50/60 HZ;6A/10A Request quotation

Type: MS-B

Nominal voltages: 120,220,240,277,120-277,480VAC,50/60 HZ;6A/10A

Maximum load:1000 watt tungsten,1800 VA .HID

Guaranteed operation:5000 operations minimum(13.7 years)

Turn-on/Turn-off):<1:5(Thermal); <1:4(Electronic)

Delay time(Instant on):30 to 120 seconds

Operating temperature:-40℃to +70℃(-40F to +158F)

Surge protection(Mov)(:90J,180J,

320J(optional)(90J,180J,320J

Average power consumption:<1watt

Photocell:Cadmium sulphide(Cds),or phototransistor(Hermetically sealed Cds)

Wiring Drawing(mm):
