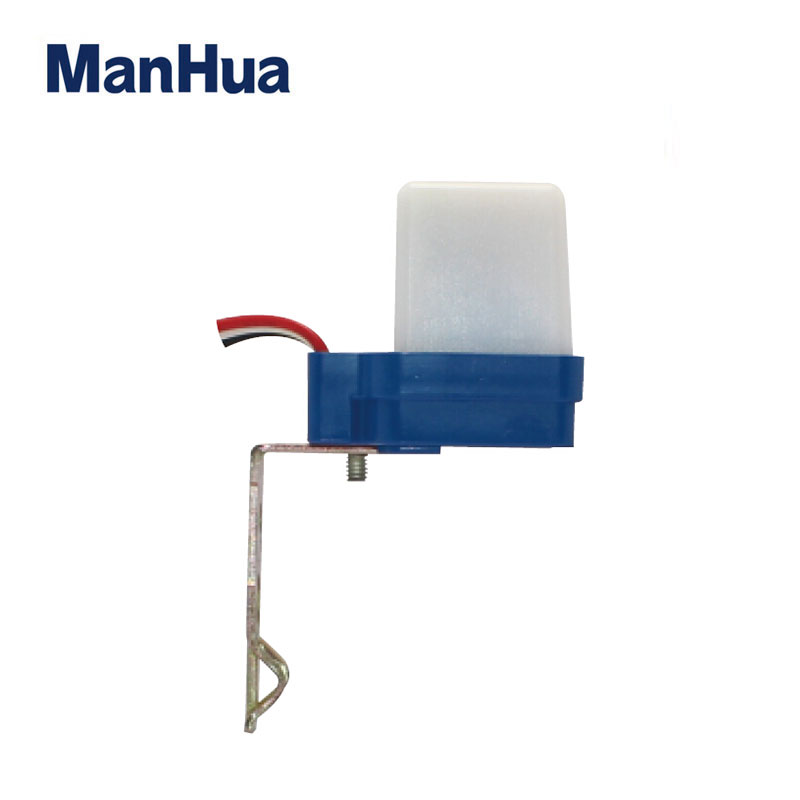

Photocell switch MS-AS06

Application: work with LED,HID,incandescent
Nominal voltage: DC12,24,48V;AC120,240;85-265V;3A/6A/10A Request quotation

Application: work with LED,HID,incandescent

Nominal voltage: DC12,24,48V;AC120,240;85-265V;3A/6A/10A

Maximum load: 1000 watt tungsten,1800 VA .HID

Guaranteed operation: 5000 operations minimum(13.7 years)

Turn-on darkness level: <30,10,5 LUX

Turn-off lightness level: >100,40,20 LUX

Turn-on/Turn-off: 1:4(Electronic)

Delay time(Instant on): <30S

Surge protection(Mov): 90J,180J,320J(optional)

Average power consumption: <1 watt

Operating temperature: -40℃to +70℃(-40F to +158F)

Sensor type: Cadmium sulphide(Cds)

Housing: UV polycarbonate

MEMA IP LEVEL: IP54

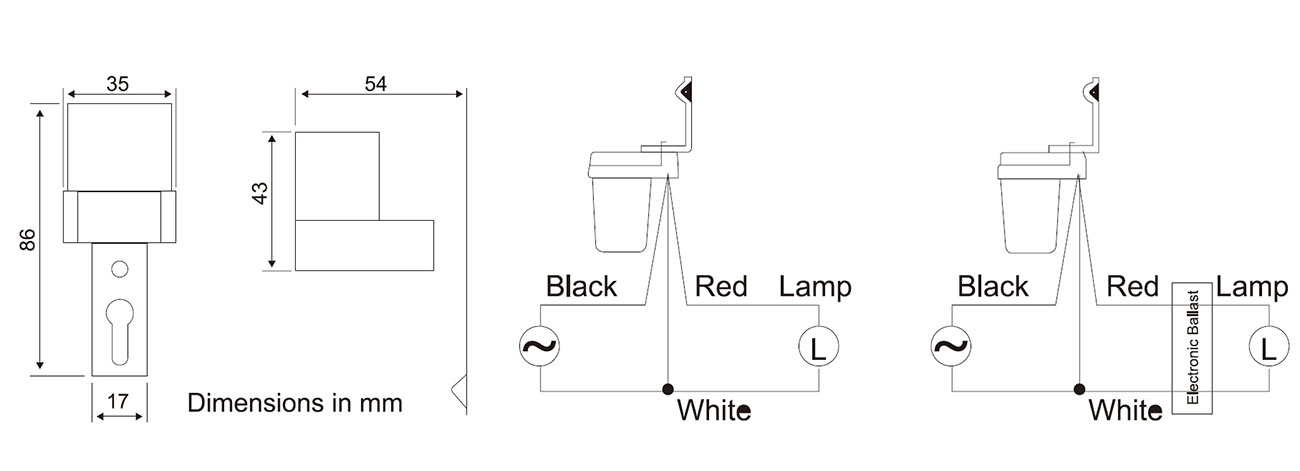

Wiring Drawing(mm):
