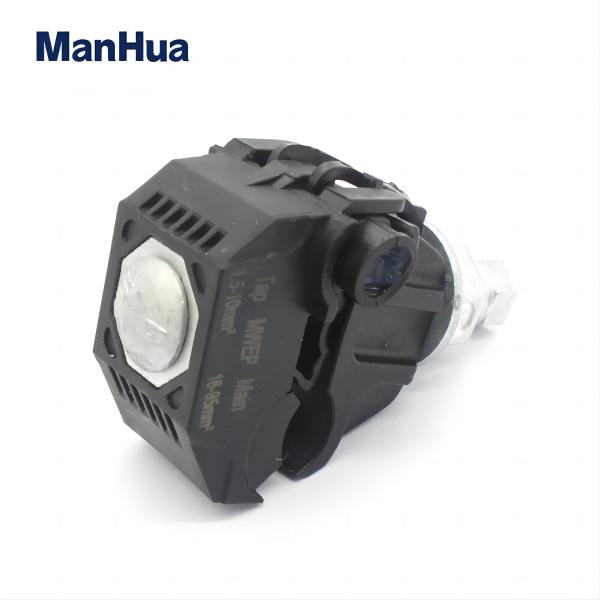

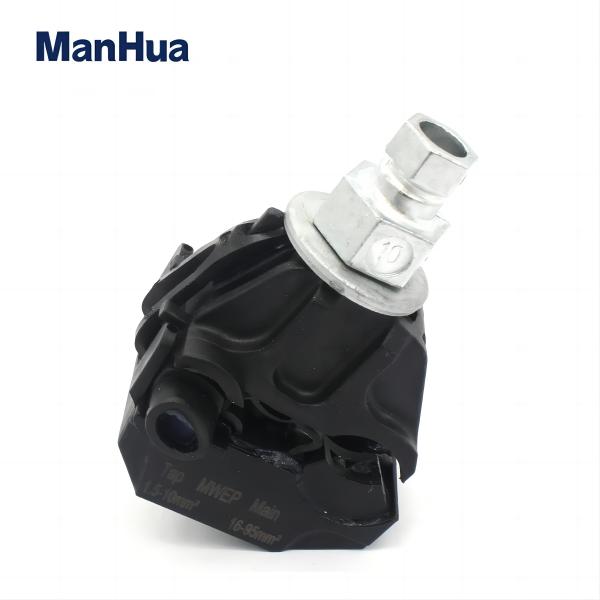

MWEP Insulation Piercing Connector main line 16-95mm² branch line 1.5-10 mm² insulated puncture clamp

Model Number: MWEP Model: MWEP
Main: 16-95mm2 Branch: 1.5-10mm2
Colour: Black Request quotation

Manhua MWEP Insulation Piercing Connector main line 16-95mm² branch line 1.5-10mm² insulated puncture clamp

11

Specification:

Model Number: MWEP

Type: Crimp Terminal, Piercing connector

Application: ABC cable

Colour: Black

Performance: Fireproof,waterproof

Tap cable: Isolated



Feature:

1. Pierced structure, easy installation, no need to peel the insulated wire.

2. Torque nut with constant puncture pressure to ensure good electrical connection without damaging the wires.

3. Self-sealing structure, moisture-proof, waterproof, anti-corrosion, prolong the service life of insulated wires and clamps.

4. Adopt special contact blade, suitable for copper (aluminum) butt and copper-aluminum transition.

5. The electrical contact resistance is small, and the contact resistance is less than 1.1 times of the resistance of equal-length branch wires.

6. Special insulation case, anti-light and environmental aging, dielectric strength> 12KV.

7. Arc surface design, suitable for same (different) diameter wire connection, wide connection range.



Installation method:

7



123
