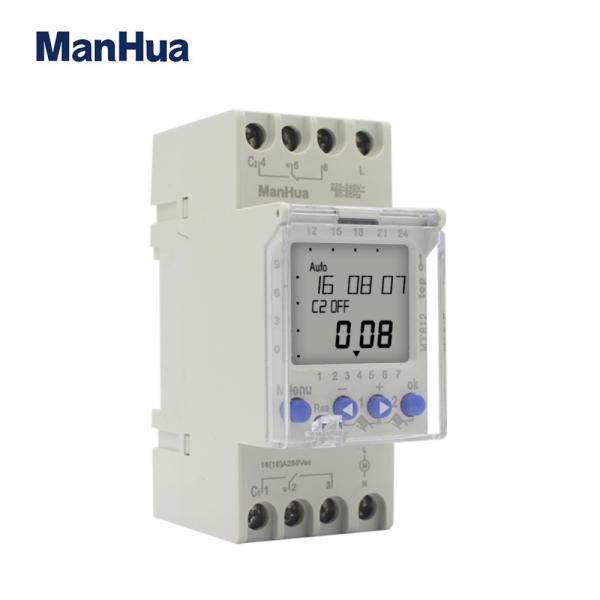

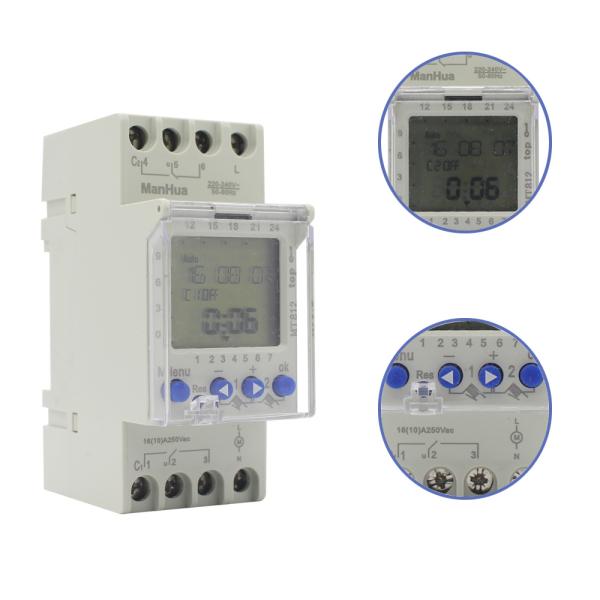

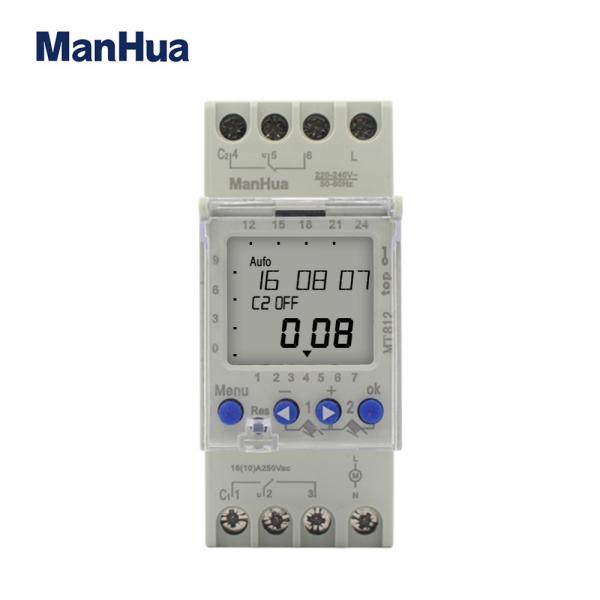

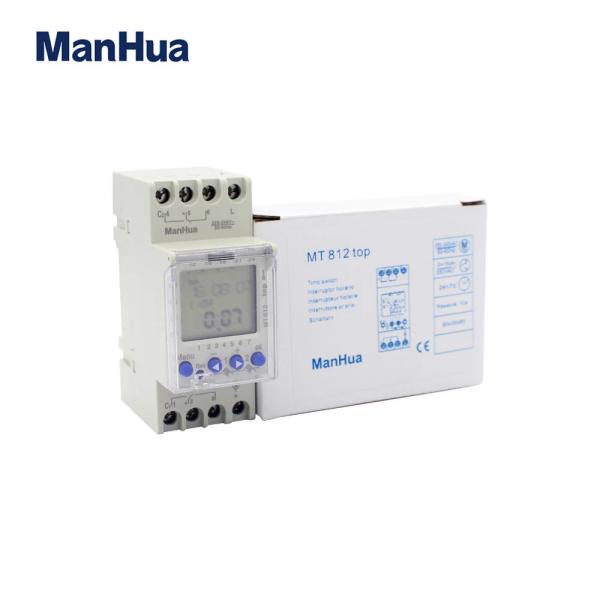

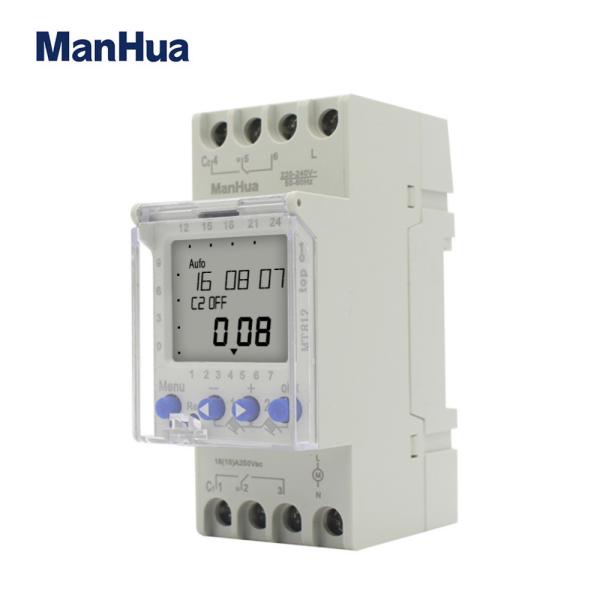

ManHua MT812  2 Channel 16A Multi function Weekly Programmable DIN Rail LCD Digital Time Switch

Technical specifications:

Rated voltage:230-240v~+6%-10%

Frequency:50-60Hz

Own consumption:max. 7.5 VA

Contact:zero-potential, gap less than 3mm

Switching power:16A, 250V~, cos =1;10A, 250V~, cos =0.6

Incandescent lamp load:2300W

Halogen lamp load:2300W

Timing basic:quartz

Working precision:1 sec./day at 20

Shortest switching time:1 minute

Display:LCD display with text line

Operating control elements:4 touch keys and 1 reset key

Power reserve:approx. 4 years with display with full controllability (temp. 20) by means of an environmentally friendly lithium battery

Permissible ambient temperature:-10℃…+ 50℃

Introduce:

The MT812 Din rail weekly program digital time switch have a wide screen, display more information, and unit have more diverse functions.  It is mainly used in the multi-stage time period to control multiple circuits on or off, that have more and more contact output cycle setting. These products both industrial and civilian high degree of intelligence and easy to operate.  The products according to the time set by the user,automatically turn on and turn off the varity of electrical equipment.Control object can lights,light boxes,neon signs,production equipment,agriculture,aquaculture,warehouse exhaust dehumidifier automatically preheat optimal control products,such as radio and television equipment.Lithium battery inside,high-precision,industrial-grade chips,strong anti-jamming

Product function:

1.2-channels programming digital timers

2.Setting/correcting the date and time Summer/winter time

3.Programming the switching time:Switching times for lighting systems, machines, ventilation systems, alarm systems etc.

4.Cycle program:Cyclically recurring time functions within the scope of a timer,e.g. slow flashing indicator, water treatment,advertisement  lighting.

5.Pulse program:e.g.:for breaktime signals, ventilation systems, flushing systems, bell controls etc.

Dimension  drawings:
