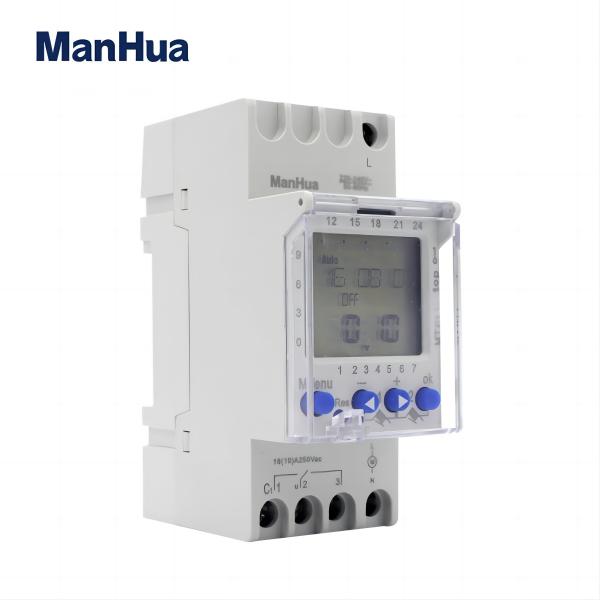

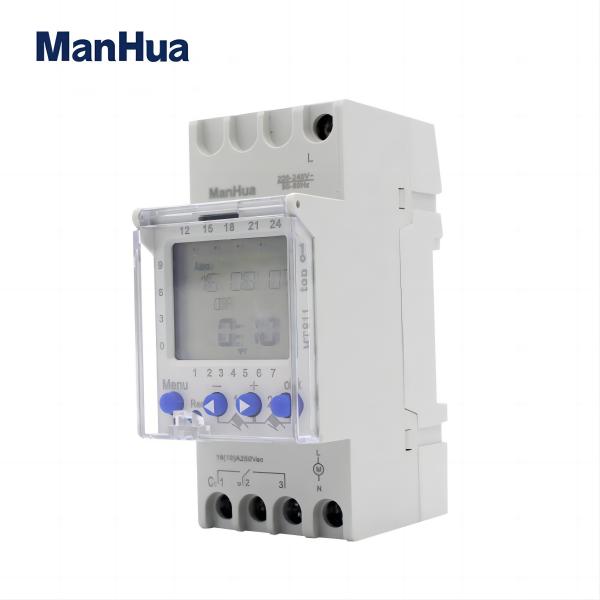

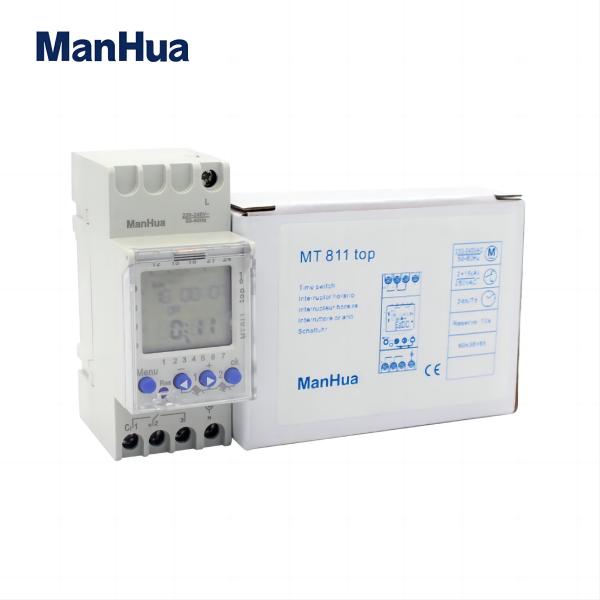

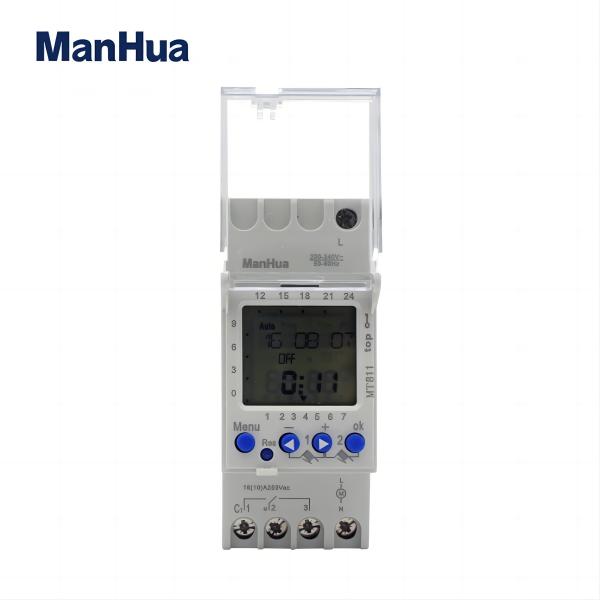

Manhua MT811 250V 16A LCD din rail 24 hour weekly adjustable mechanical timer switch

Technical specifications:

Rated voltage:230-240v~+6%-10%

Frequency:50-60Hz

Own consumption:max. 7.5 VA

Contact:zero-potential, gap less than 3mm

Switching power:16A, 250V~, cos =1;10A, 250V~, cos =0.6

Incandescent lamp load:2300W

Halogen lamp load:2300W

Timing basic:quartz

Working precision:1 sec./day at 20

Shortest switching time:1 minute

Display:LCD display with text line

Operating control elements:4 touch keys and 1 reset key

Power reserve:approx. 4 years with display with full controllability (temp. 20) by means of an environmentally friendly lithium battery

Permissible ambient temperature:-10℃…+ 50℃

Product function:

1.Single channel programming digital timers

2.Setting/correcting the date and time Summer/winter time

3.Programming the switching time:Switching times for lighting systems, machines, ventilation systems, alarm systems etc.

4.Cycle program:Cyclically recurring time functions within the scope of a timer,e.g. slow flashing indicator, water treatment,advertisement  lighting.

5.Pulse program:e.g.:for breaktime signals, ventilation systems, flushing systems, bell controls etc.

Applications：

- Light of billboard or showcase control

- Air-condition or Commercial Refrigeration

- Pumps/Motor/Fan Control

- Hydroponic Systems

- Wastewater Treatment Systems

- Generator Exercising

- Boilers / Heater Control

- Pool & Spa

- Ventilation

- Hot Water Pump Circulation

- Lighting Panel Control

- Landscape Lighting

- Bug and Pest Control Systems

- Aerobic Waste Water Systems

- General Electrical Circuits

Dimension  drawings:
