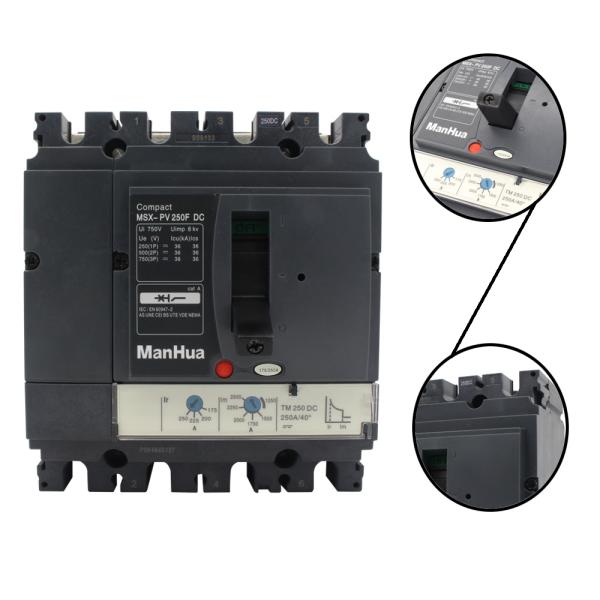

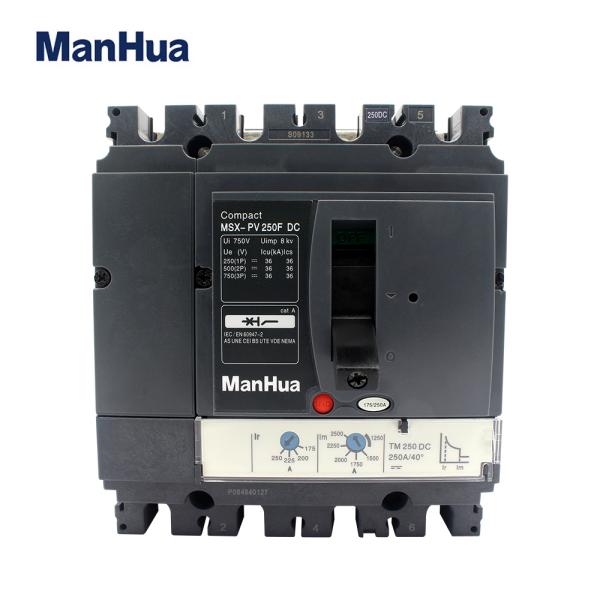

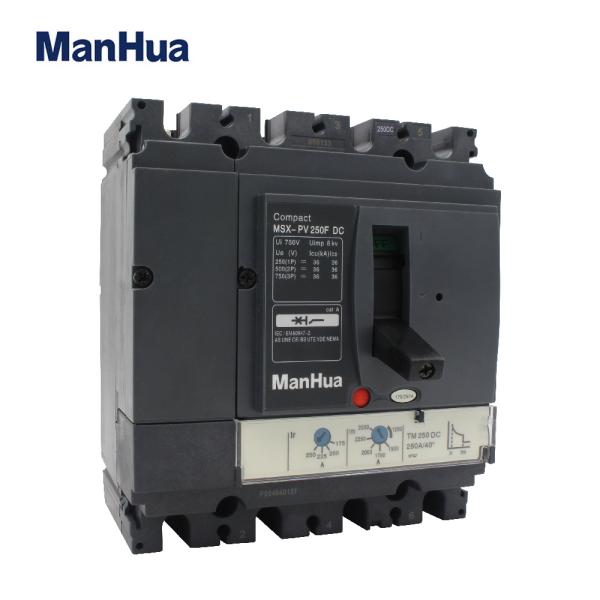

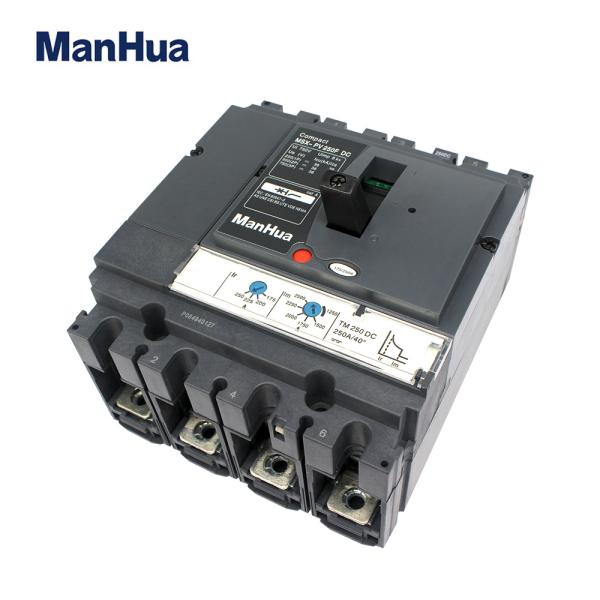

Contact usManHua 4P Breaking Capacity Adjustable 250A MSX-PV250F DC Moulded Case Circuit Breaker
Features:
Molded Case Circuit Breaker is a kind of mechanical equipment that can generate, transfer and disconnect current under normal circuit conditions, and can also generate under specified abnormal circuit conditions (such as short circuit and over current) for a specified time And off current.
Specifications:
|
Range |
Compact |
|
Product or component type |
Circuit breaker |
|
Circuit breaker application |
Distribution |
|
Poles description |
4P |
|
[In] rated current |
250 A |
|
[Ui] rated insulation voltage |
750 V |
|
[Uimp] rated impulse withstand voltage |
8 kV |
|
Breaking capacity code |
F |
|
Trip unit technology |
Thermal-magnetic |
|
Protection type |
Overload protection (thermal) |
|
Short-circuit protection (magnetic) |
Installation conditions:
1. Elevation 2000 m and below.
2.Temperature is not higher than + 40 ℃, marine products are + 45 ℃ and not lower than - 5 ℃.
3.The equipment can withstand the influence of moist air.
4. The equipment can withstand the effects of smoke and oil burst.
5. The equipment can tolerate the influence of mould.
6. The maximum inclination of the equipment is + 22 ℃.
7.The equipment can work reliably when it is subjected to normal vibration of ships.
8.The equipment can work reliably under earthquake conditions.
