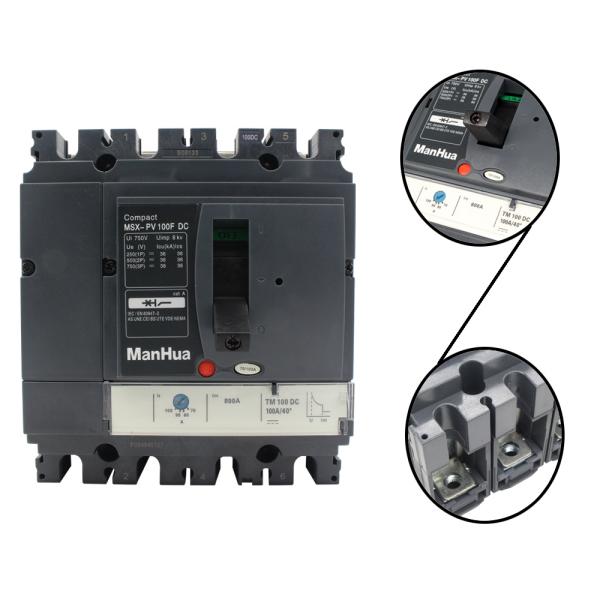

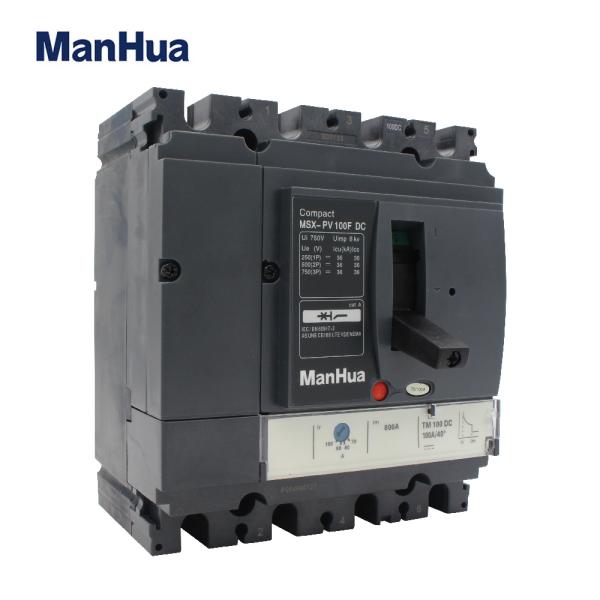

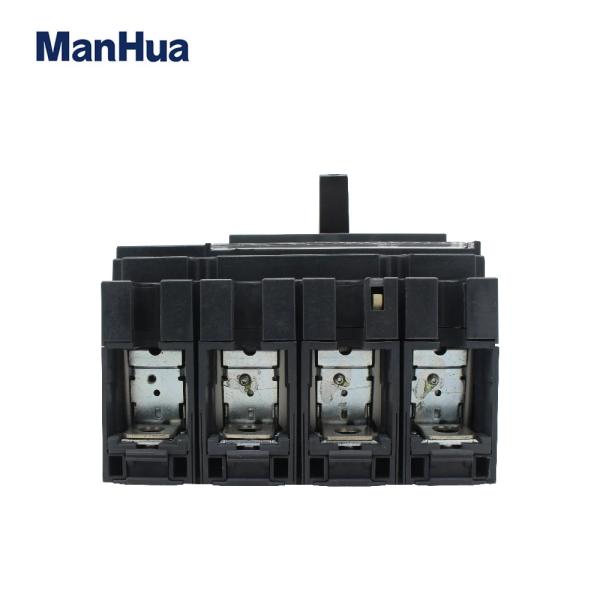

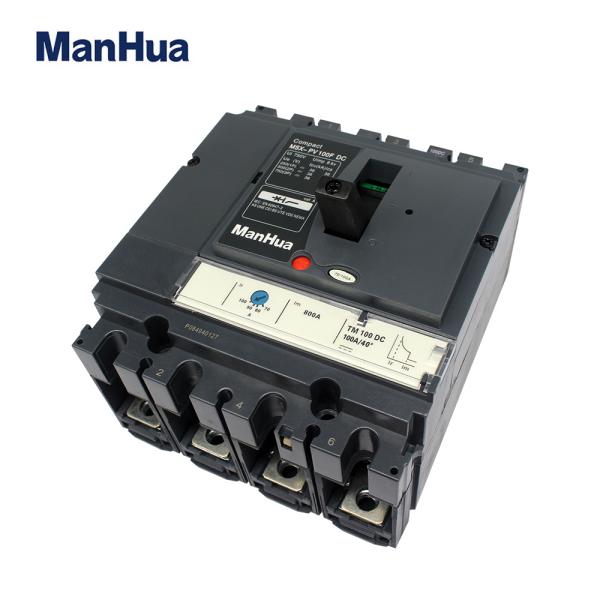

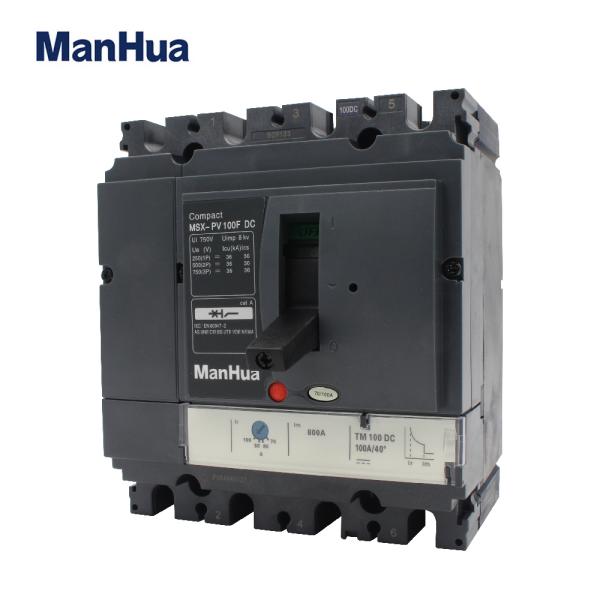

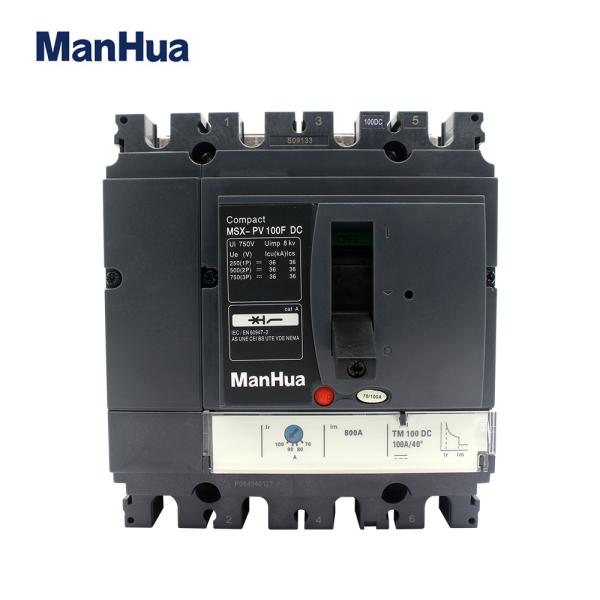

Contact usManhua 4P FourPoles Breaking Capacity 36kA Adjustable 100A MSX-PV100F Photovoltaic 1000VDC Moulded Case Circuit Breaker
Features:
Molded Case Circuit Breaker is a kind of mechanical equipment that can generate, transfer and disconnect current under normal circuit conditions, and can also generate under specified abnormal circuit conditions (such as short circuit and over current) for a specified time And off current.
Specifications:
|
Range |
Compact |
|
Product or component type |
Circuit breaker |
|
Circuit breaker application |
Distribution |
|
Poles description |
4P |
|
[In] rated current |
100 A |
|
[Ui] rated insulation voltage |
750 V |
|
[Uimp] rated impulse withstand voltage |
8 kV |
|
Breaking capacity code |
F |
|
Trip unit technology |
Thermal-magnetic |
|
Protection type |
Overload protection (thermal) |
|
Short-circuit protection (magnetic) |
Installation conditions:
1. Elevation 2000 m and below.
2.Temperature is not higher than + 40 ℃, marine products are + 45 ℃ and not lower than - 5 ℃.
3.The equipment can withstand the influence of moist air.
4. The equipment can withstand the effects of smoke and oil burst.
5. The equipment can tolerate the influence of mould.
6. The maximum inclination of the equipment is + 22 ℃.
7.The equipment can work reliably when it is subjected to normal vibration of ships.
8.The equipment can work reliably under earthquake conditions.
About Feedback:
Dear friends: Welcome to my store, thank you! Your satisfaction is our aim, your feedback is very important for us sellers, if you are satisfied with the goods, please give us 5 star encourage if you are not 100% satisfied with the product, please be sure to contact me, please do not just hit bad review.I believe we can solve the problem together.
Quality assurance:
1.One year guarantee.
2.If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition).
3.We supply free repairing service within one year of purchase. For the first 1 month, we will pay one way shipping cost(from us to your location);After 1 month of purchase, the buyer need to pay two ways of shipping cost.
4.One we get the returned items, we will send the replaced ones back as soon as possible.
5.Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or improper installation on the parts.
