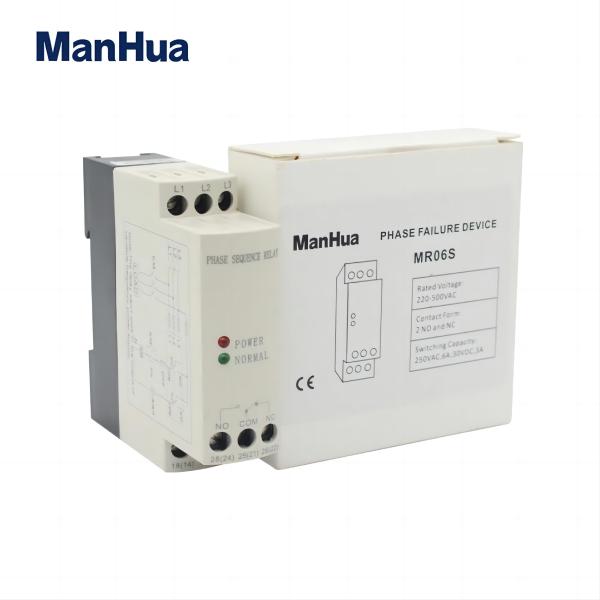

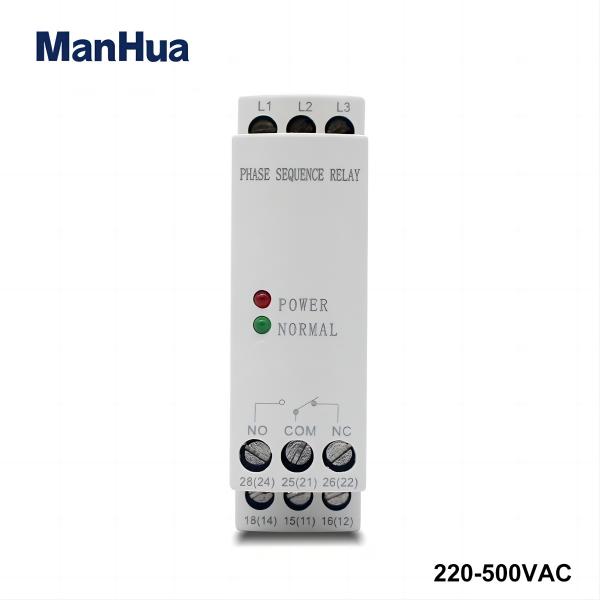

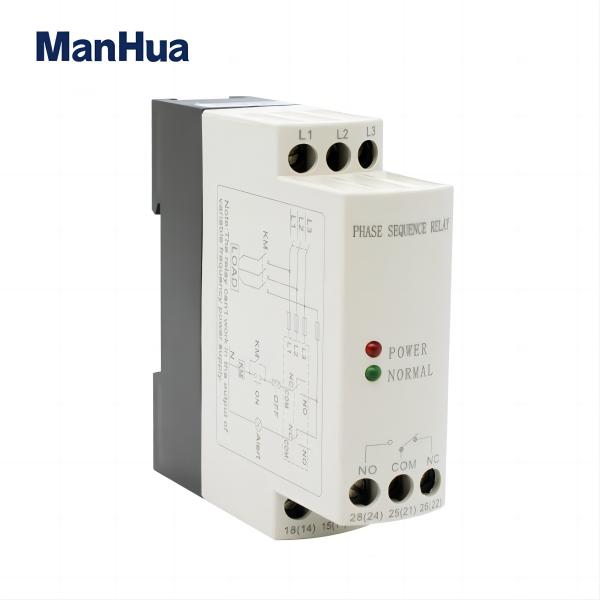

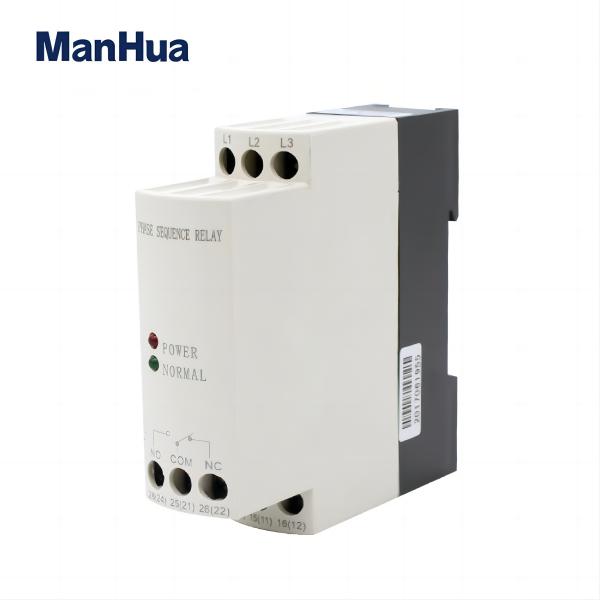

MR06S 250V-500VAC Three Phase Phase failure phase Sequency Protection

Power Source: AC Voltage: 250V-500V
Usage: Protective Model Number: MR06S
Contact Load: Low Power Protect Feature: Sealed
Theory: Voltage relay Brand Name: ManHua
Origin: Mainland China Certification: CE
Display: LED Light Protection class: IP40
Contact type: 2NO 2NC Size: Subminiature
Protect Feature: Epoxy Power Supply Voltage: 3 phase 220-450V
Rated Frequency: 50/60Hz±1Hz Data Keeping: 18 years
Total Timing Error: <0.01% Request quotation

ManHua Three Phase 250V-500VAC MR06S Phase failure phase Sequency Protection


Features:

• Phase Loss protection

• Phase sequence protection
• Over and Under voltage protection

• Voltage display
Timing and Counting


Dimensions(mm}: 80HX43WX54D

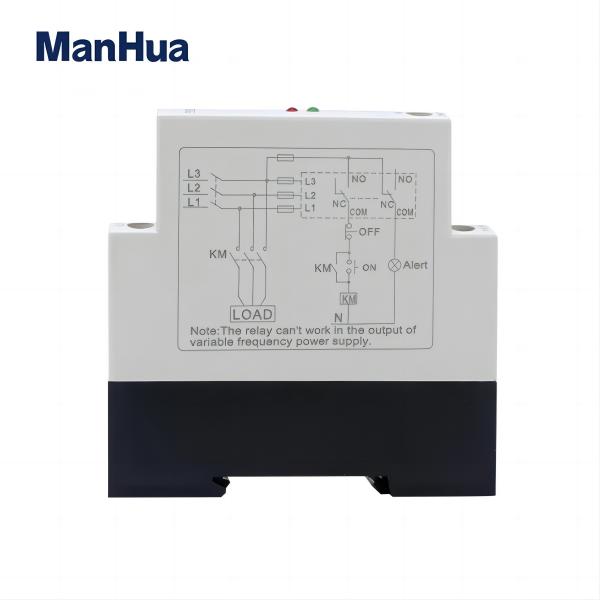

Warning! The product generally install ed on the

input side of power supply, and it can't installed

on the output side of inverter.


1 Product Overview

2.Main functions

3 .Main technical data
