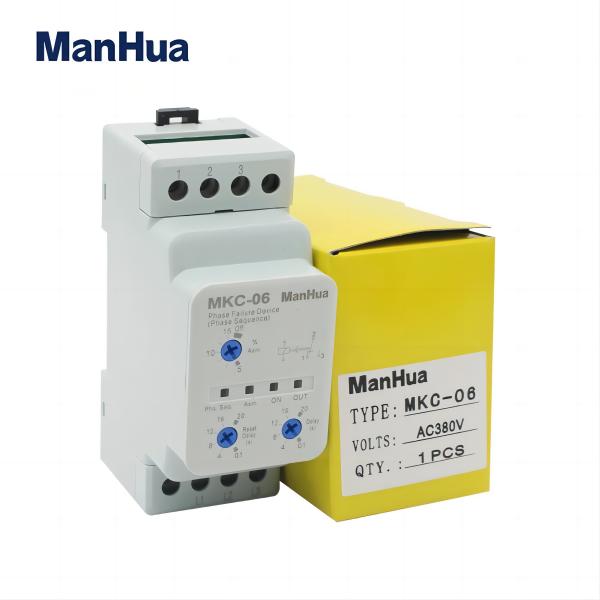

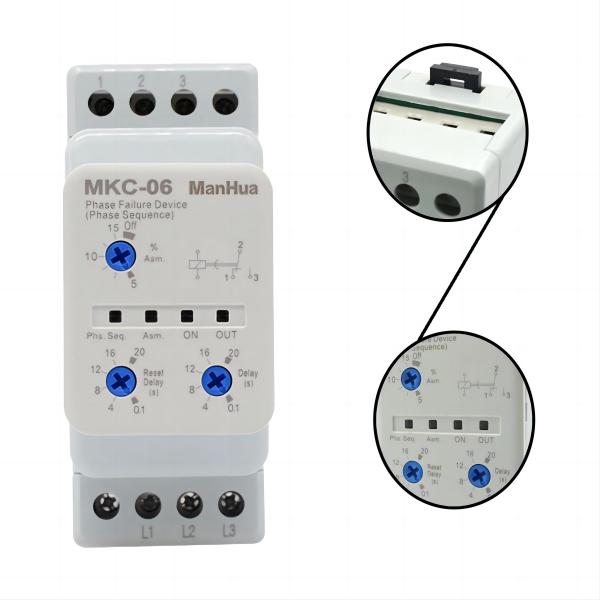

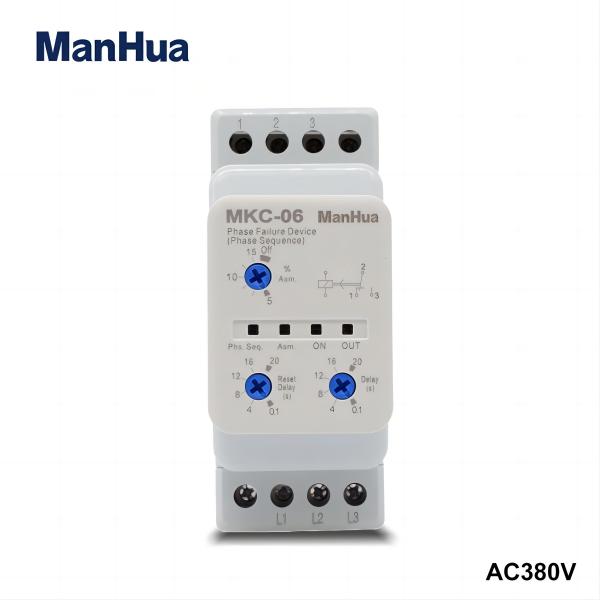

Manhua Protect Motor From Phase Failure Phase Sequence reserve voltage unbalance 3 phase 380V MKC-06 Phase Failure device

Description:

One of the common faults faced in industrial plants is overheating and damaging of 3 phase motors due to the phase failure.“Thermic-magnetic device”which is an essential element in motor protection is generally too slow due to both its electromechanical structure and the use of hing current setting range to assure demarrage without tripping.Being designed to eliminate the above disadvantages,MKC-06 Phase Failure Devices serve the following protection features：Phase failure,Phase sequence,Voltage unbalance,Insufficient supply.

Technical data:

Rated voltage:380VAC/440VAC

                         3 phase:3 wires connection

The three phase network being protected is used as the device power supply.

Operating range:(0.9-1.1)×Un

Rated frequency:50/60Hz

Output contacts:1 C/O with 8A,2000VA(For resistive load)

Asymmetry range:5%-15%;3×380VAC

Phase sequence:Available

Ambient temperature:-5℃ to+50℃

Protection class：IP20

Installation:Surface mounting or on the mounting rails

Protection features:

1.Phase failure

2.Phase sequence

3.Voltage unbalance(Both unbalance and delay adjustable)

4.Insufficient supply
