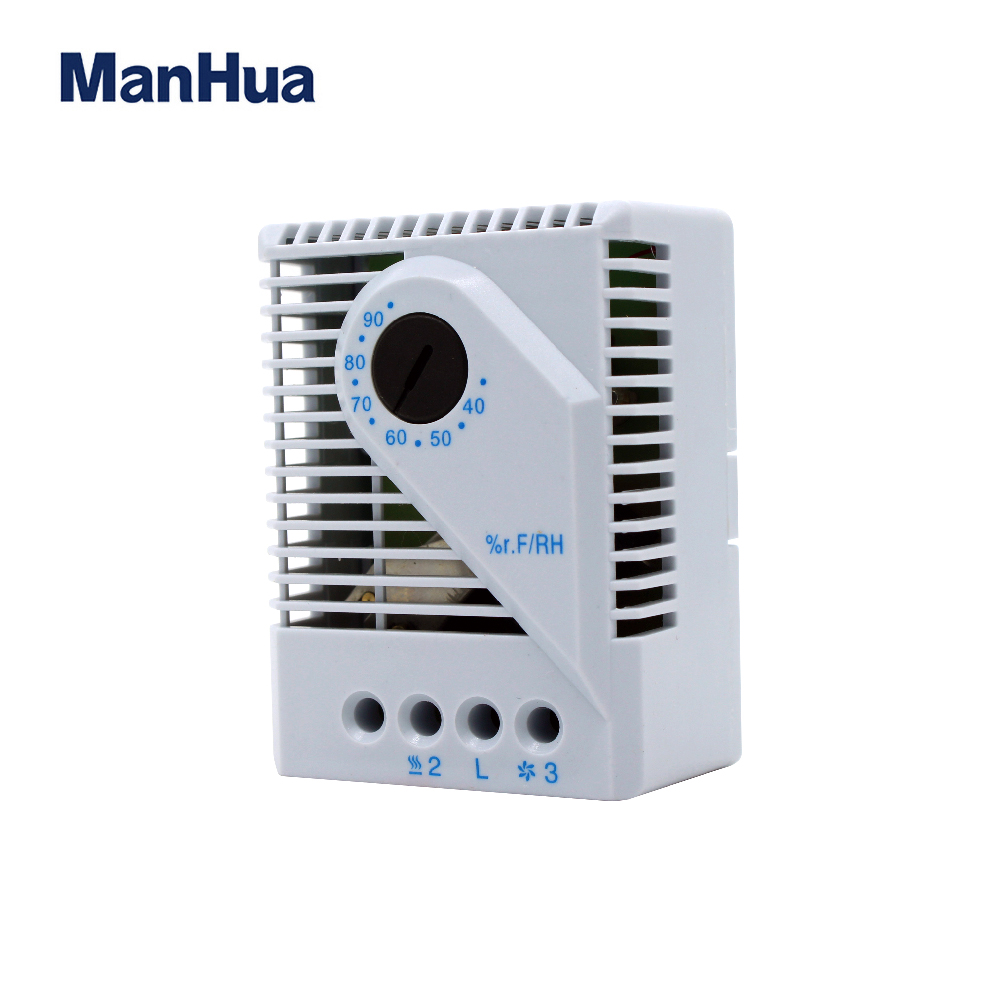

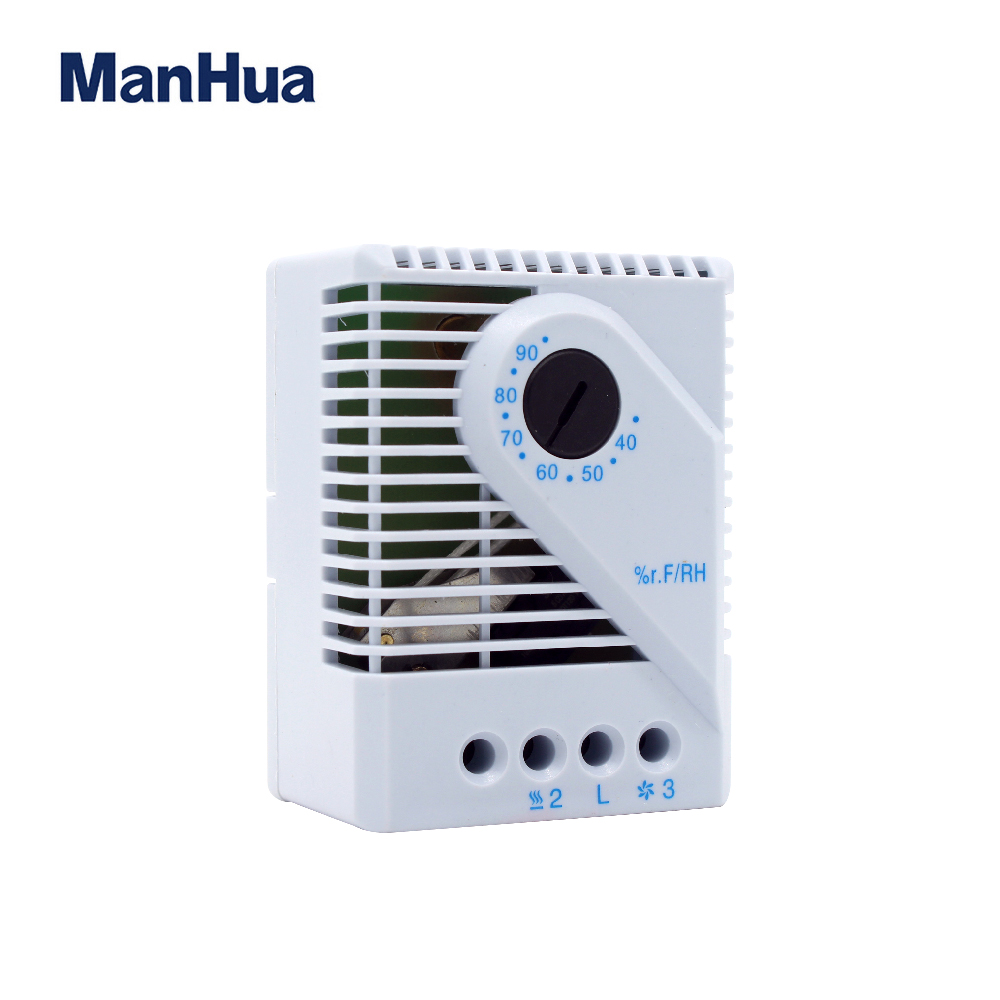

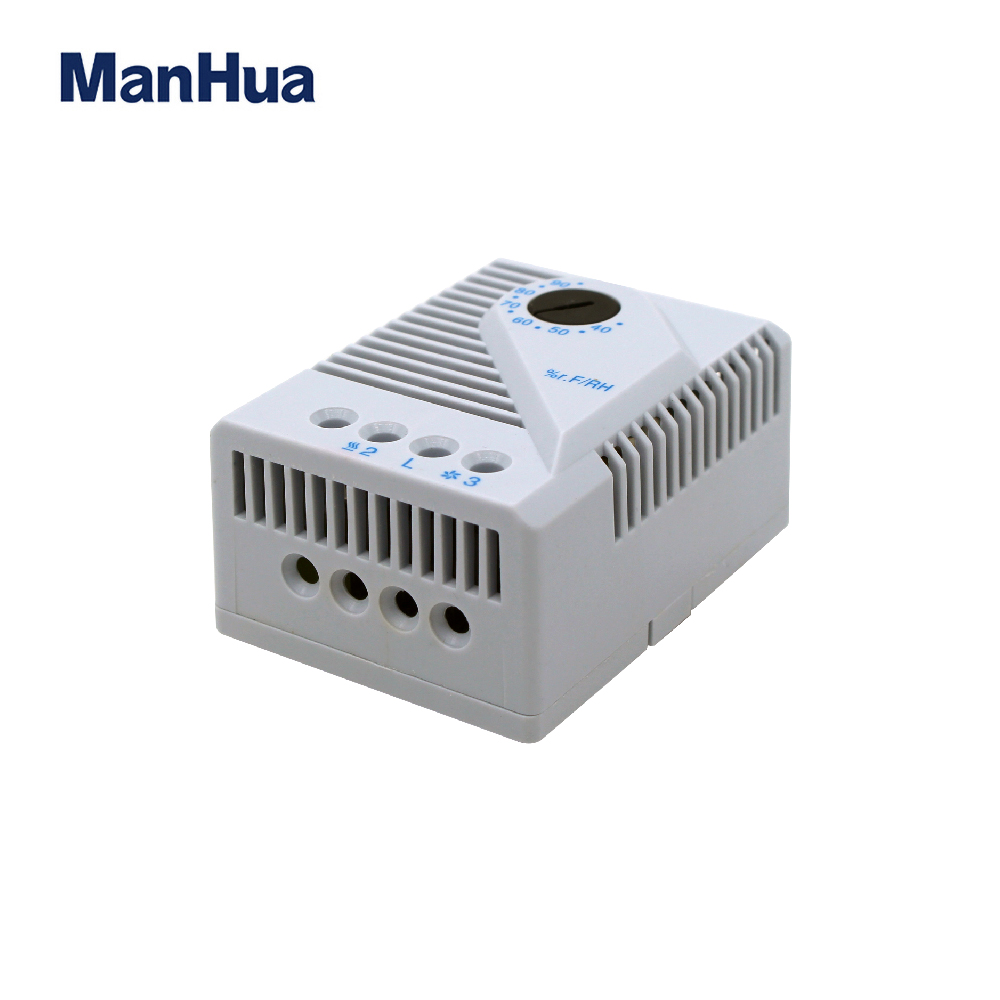

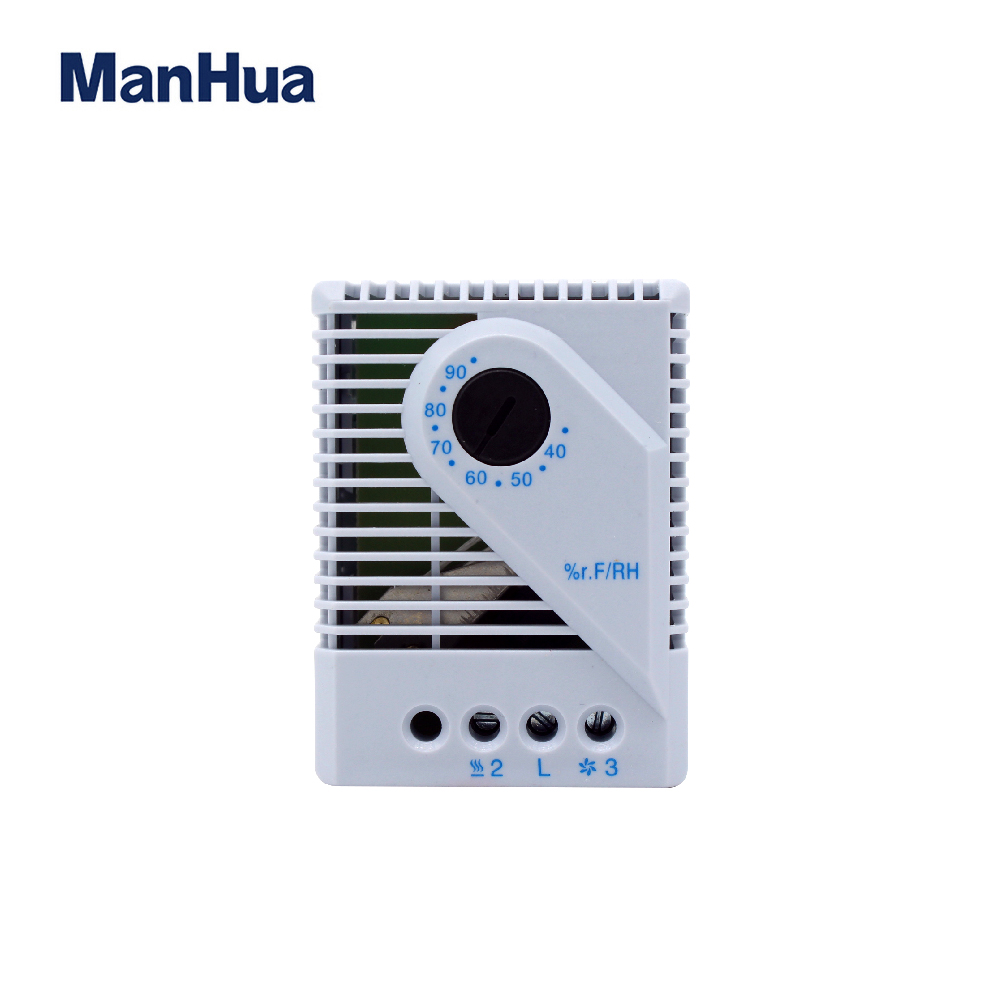

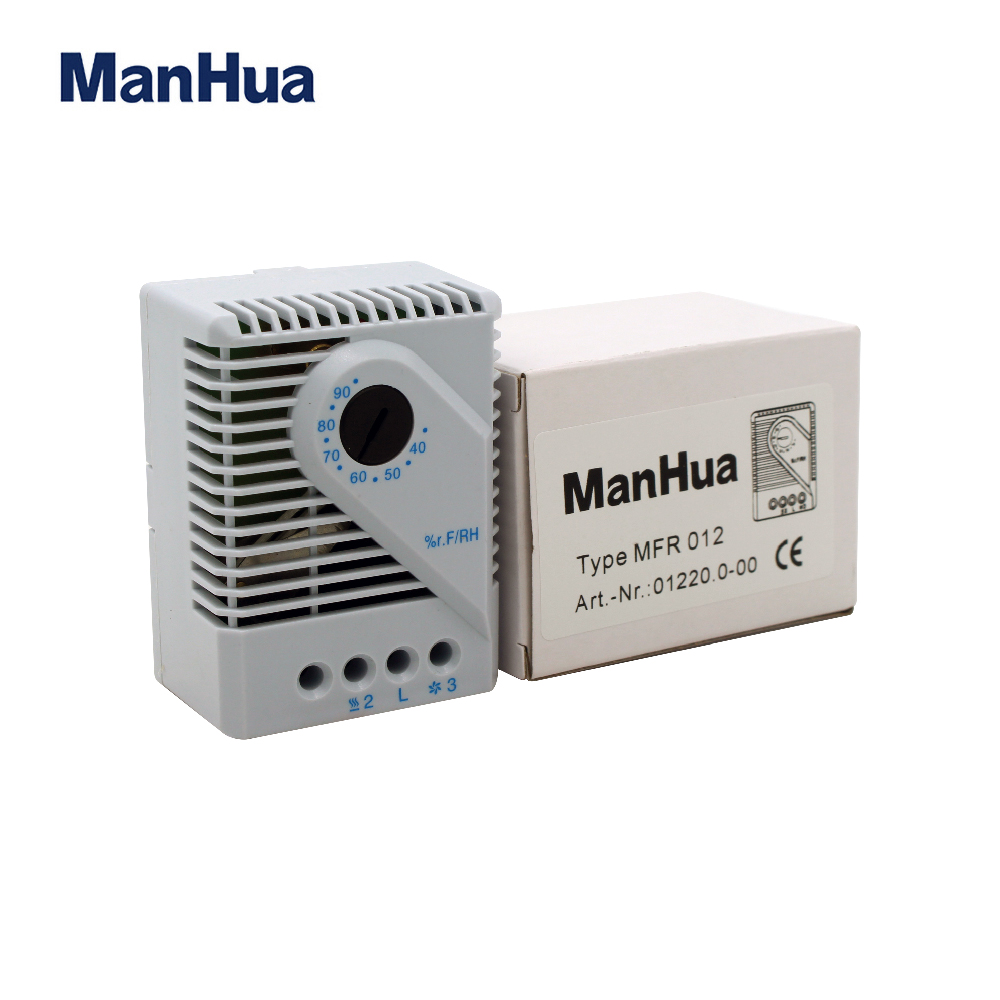

Type: MFR 012

Function:

1.Adjustable relative humidity

2.Change-over contact

3.High switching capacity

4.Terminals easily connection

5.Din rai fixing

Switch Temperature Difference: 4%RH（±3% tolerance）

Permissible air velocity: 15m/sec

Contact Type: change-ower contact

Contact Resistance: ＜ 10mΩ

Service Life: ＞ 100000 cycles

Min.Service Capacity: 20V AC/DC 100mA

Max.Service Capacity: 250VAC , 5(1)A DC 20W

EMC: acc.to EN 55014-1-2,EN 61000-3-2,EN 61000-3-3

Connection: 4-pole terminal,clamping torque 0.5Nm max:rigid wire 2.5mm2 wire (with wire end ferrule)

Mounting: Clip for 35mm DIN rail(EN50022)

Casing: plastic according to UL94 V-0

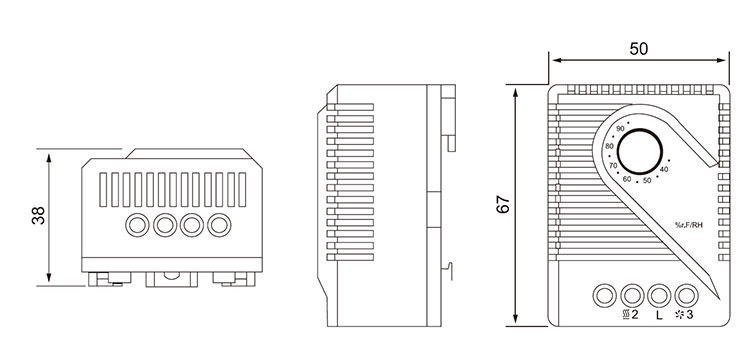

Dimensions: 67×50×38mm

Operating/Storage Temperature: 0 to +60℃（+32 to+140° F）/-20 to+80℃（-4 to+176° F）

Protection Type: IP20

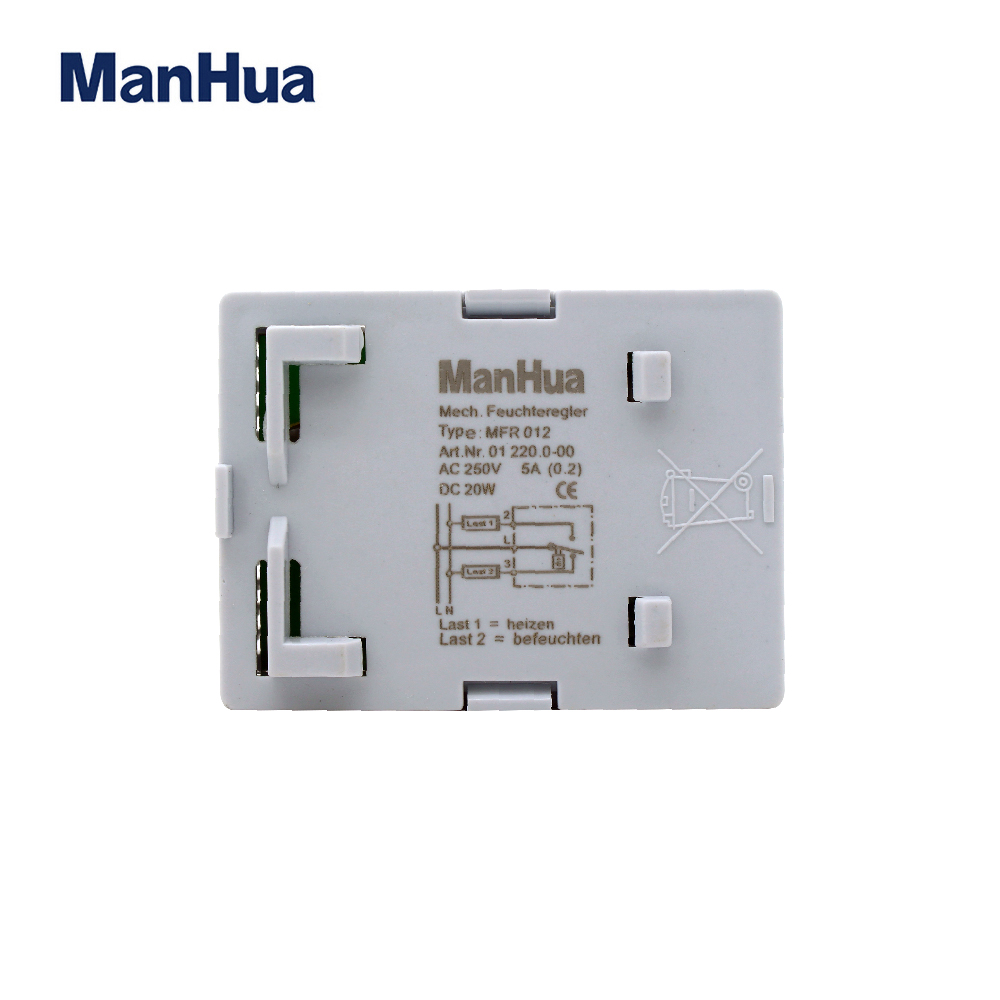

Wiring Diagram:
